RUN EXCITE: Service & Maintenance Manual - rev. 1.5
Page 4.2
4.3. PROGRAMMING PLUG FOR CSAFE BOARD
When programming the machine using the 0WC00434AA connecting cable described above, it is
necessary to fit plug (code 0WC00638AA) into the free RJ-45 port on the back of the display, to
avoid any type of interference during the operation.

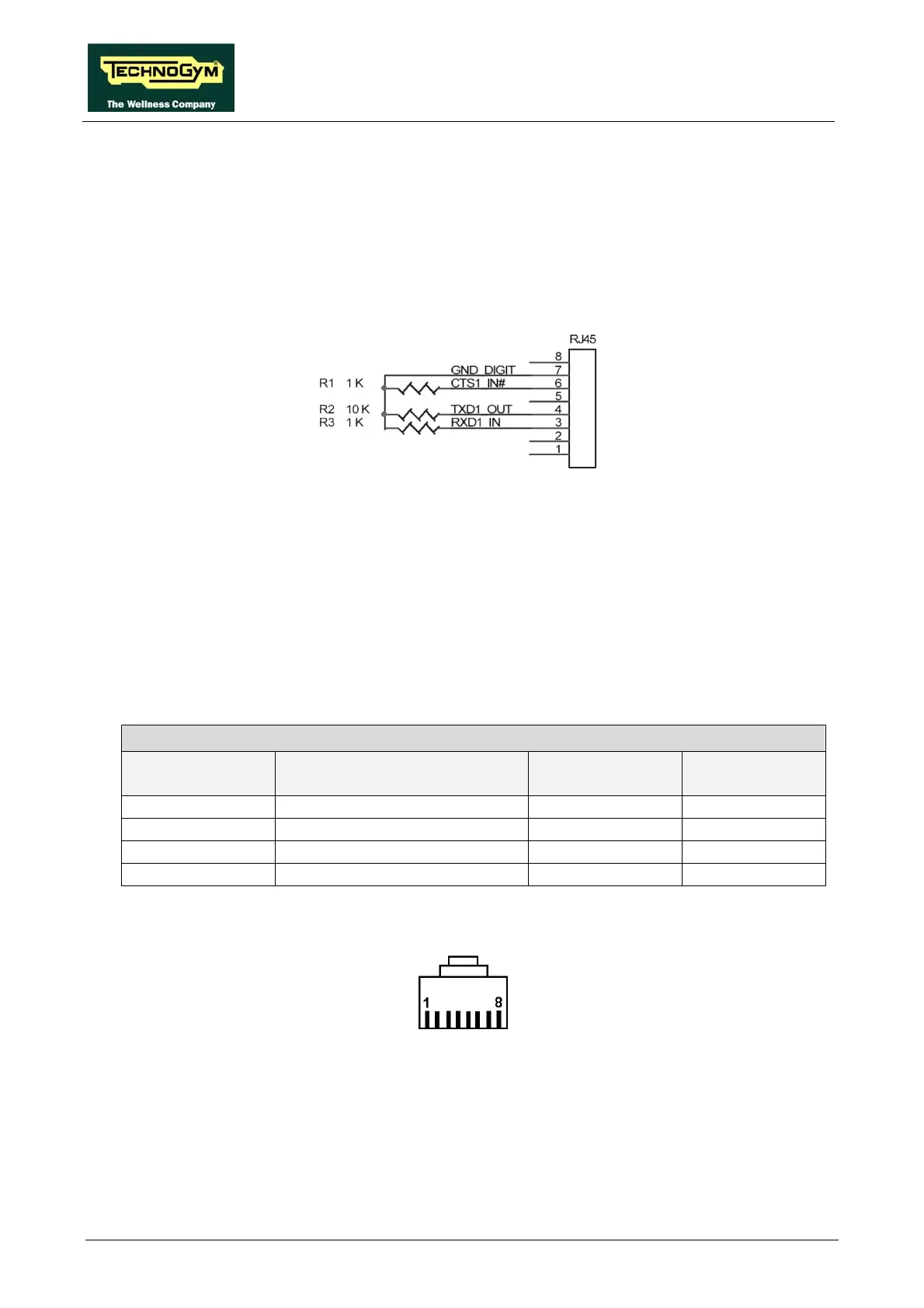

The wiring diagram of the RJ-45 plug is as follows:
4.4. CABLE FOR EXCHANGING TV CHANNEL TUNING DATA
BETWEEN TWO MACHINES
The con n hines for transferring the TV channel tuning data is effected via a
special cable, connected to the RJ45 connectors of the CSafe boards.
The cable to use (code 0WC00644AA) must be wired as follows:
nection betwee two mac
Cable
CSafe board
RJ45
Signal Color CSafe board
RJ45
3 Tx White 4
4 Rx Brown 3
7 Digital Ground Green 7
8 Shield Ground Yellow 8
On the RJ45 connector, which is illustrated below, pin 1 is the farthest right when the locking tab is
facing upward.
