8.6. POSITION OF THE LIMIT SWITCH

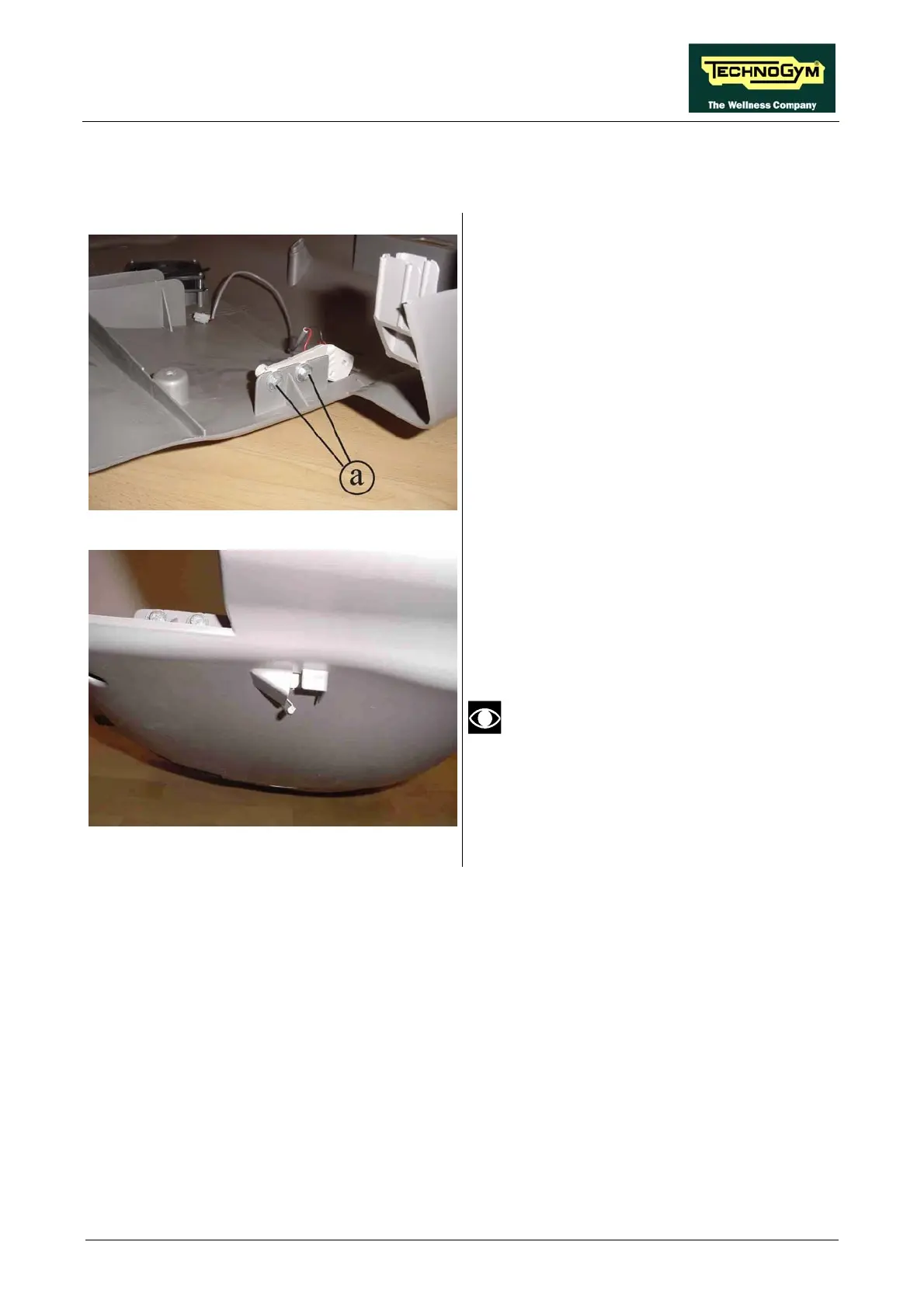

Figure 8.6-1
1. Remove the lower part of the motor guard.
2. Back off the 2 screws a fixing the limit
switch.
Figure 8.6-2
3. Adjust the position of the microswitch
support so that the lever which trips it
touches the guard in the microswitch
compartment.
Under no circumstances should the lever
be pressed by the guard.
4. After making the adjustment, lock down the
screws a backed off previously.
