7.19. DISASSEMBLING THE AUTOTRASFORMER
Only on the 110VAC models.

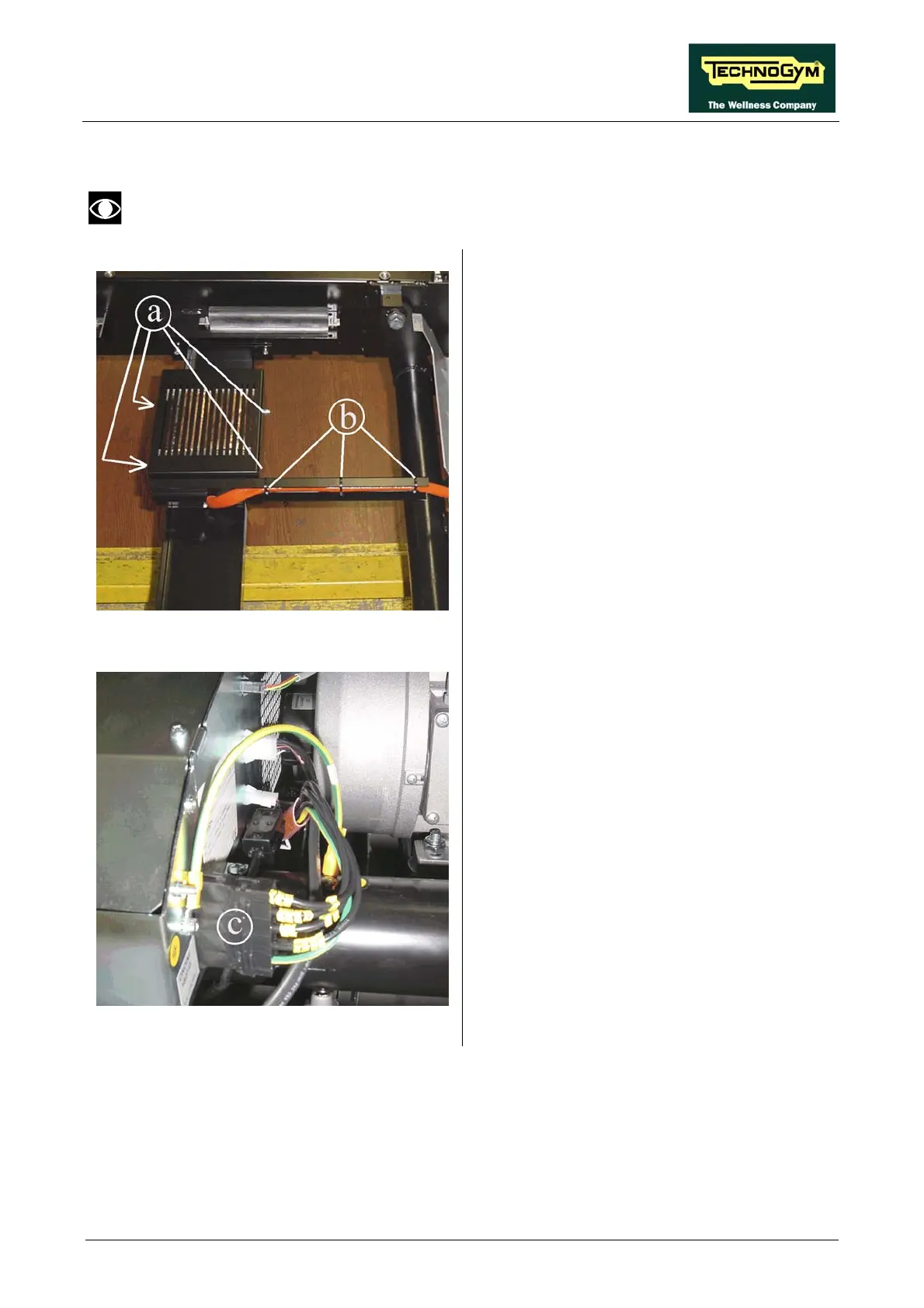

Figure 7.19-1
Carry out the procedure described in paragraph
7.17. “Disassembling the tread belt group”.
2.
1. Back off the 4 screws a using a 4-mm Allen
wrench, to access the autotransformer.
Cut the cable ties b that are fixing the
autotransformer cable.
Figure 7.19-2
3. Disconnect the autotransformer cable
connector c, from the electrical box.
4.
h
To re
bove order.
Remove the autotransformer from his
ousing.
assemble the autotransformer, carry out the
steps in reversea
Page 7.37
