Technogym Run Excite 700 - LED Version

RUN EXCITE: Service & Maintenance Manual - rev. 1.5
7.2.3. 500 LED VERSION

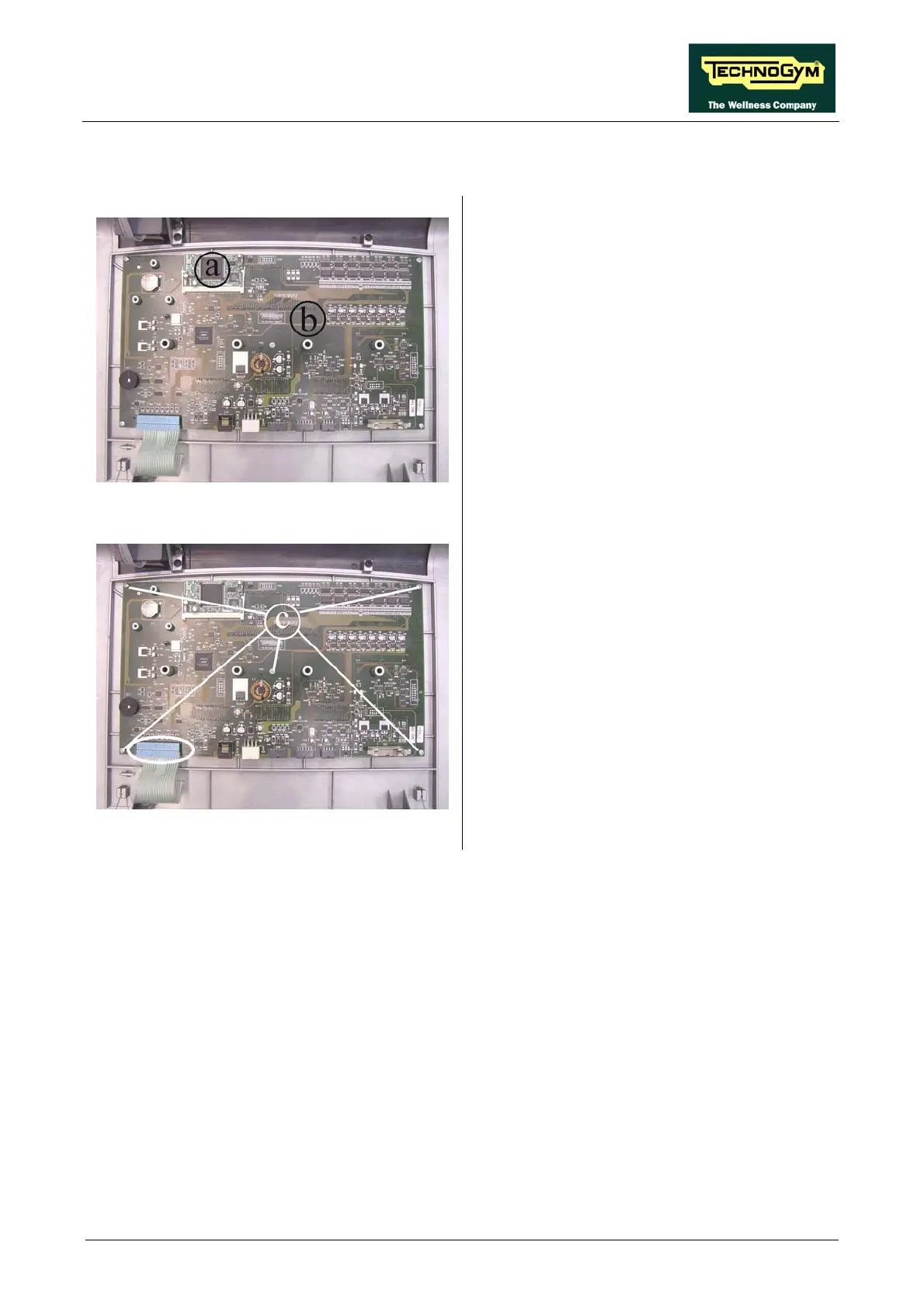

Figure 7.2-16
.1 the display”.
three circuit
boards:
• The 386 board a;
• The display board b.
Carry out the procedure described in paragraph
. “Disassembling 7
Then place the display on a work bench. It is
now possible to disassemble its
Figure 7.2-17
386 board a:
1. Remove it from the connector on the display
board.
Display board b:
1. Unplug the connector indicated in the figure.
2. Back off the 5 screws d using a small
Phillips screwdriver.
3. Remove the circuit board.
To reassemble the circuit boards, carry out the
above steps in reverse order.
Page 7.7
