4. ACCESSORIES
4.1. CARDIO THEATER CONNECTION
The machine can be connected to the CardioTheater by means of the RJ45 connector on the CSafe
board. The CardioTheater unit must be provided with a power cable having the following pin-out:
RJ45 Connector Signal
5 +5 Vdc
7 Ground

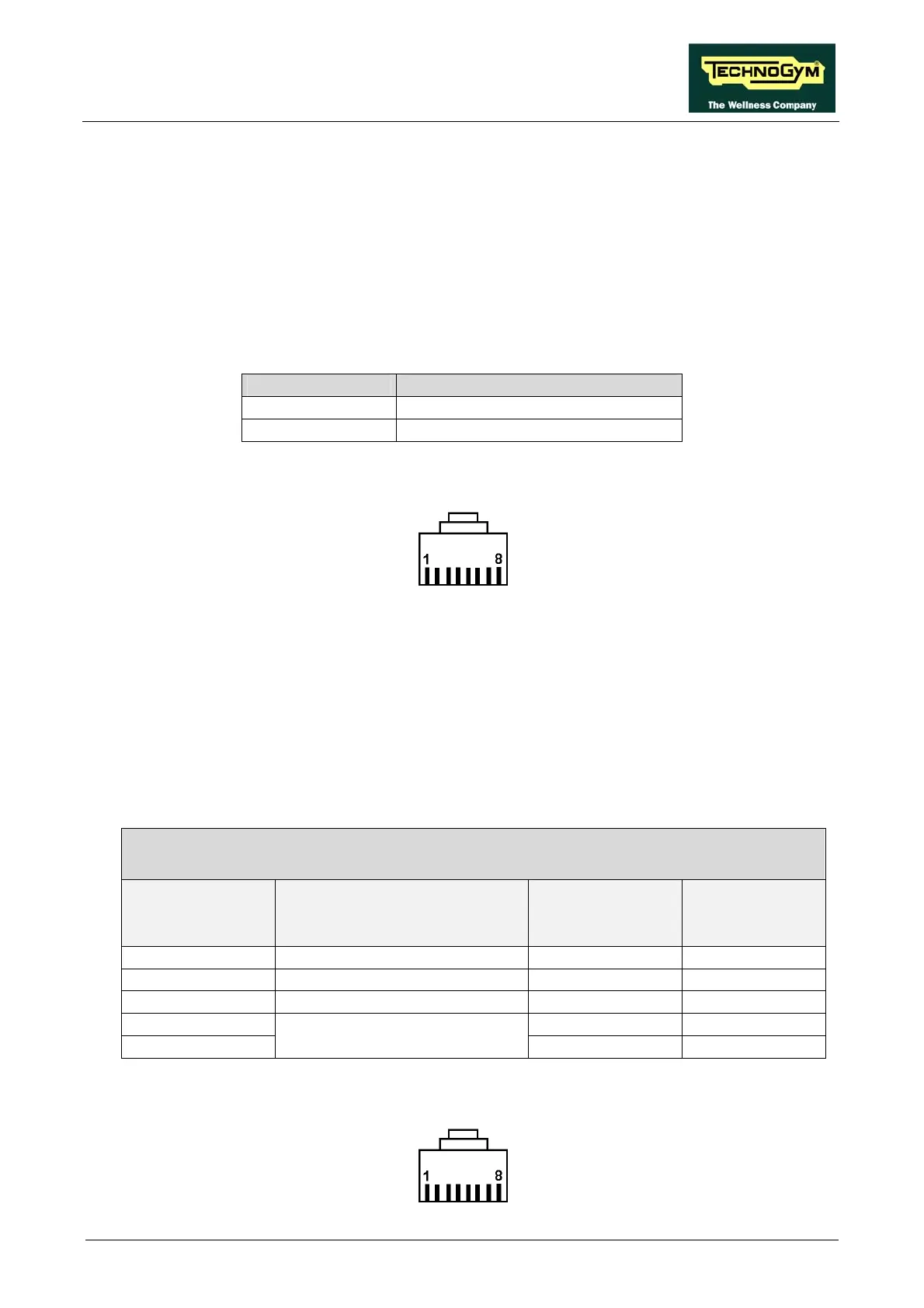

In the RJ45 connector, which is illustrated below, pin 1 is the farthest right when the locking tab is
facing upward.
INK FOR PROGRAMMING
ns of the RJ45 connector on the
Safe board.
The cable to use (code 0WC00434AA) s:
The remaining pins are not connected.
4.2. PC L
The machine can be connected to a PC for programming by mea
C
must be wired as follow
PC Cable
CSafe Board - PC
CSafe Board
RJ45
Signal Color PC
9 pin D-
connector
3 Rx White-Green 3
4 Tx Blue 2
7 Ground White-brown 5
5 - -
6
R = 10 KOhm
- -
In the RJ45 connector, which is illustrated below, pin 1 is the farthest right when the locking tab is
facing upward.
Page 4.1
