Technogym Run Excite 700 - Page 80

RUN EXCITE: Service & Maintenance Manual - rev. 1.5
Page 6.12

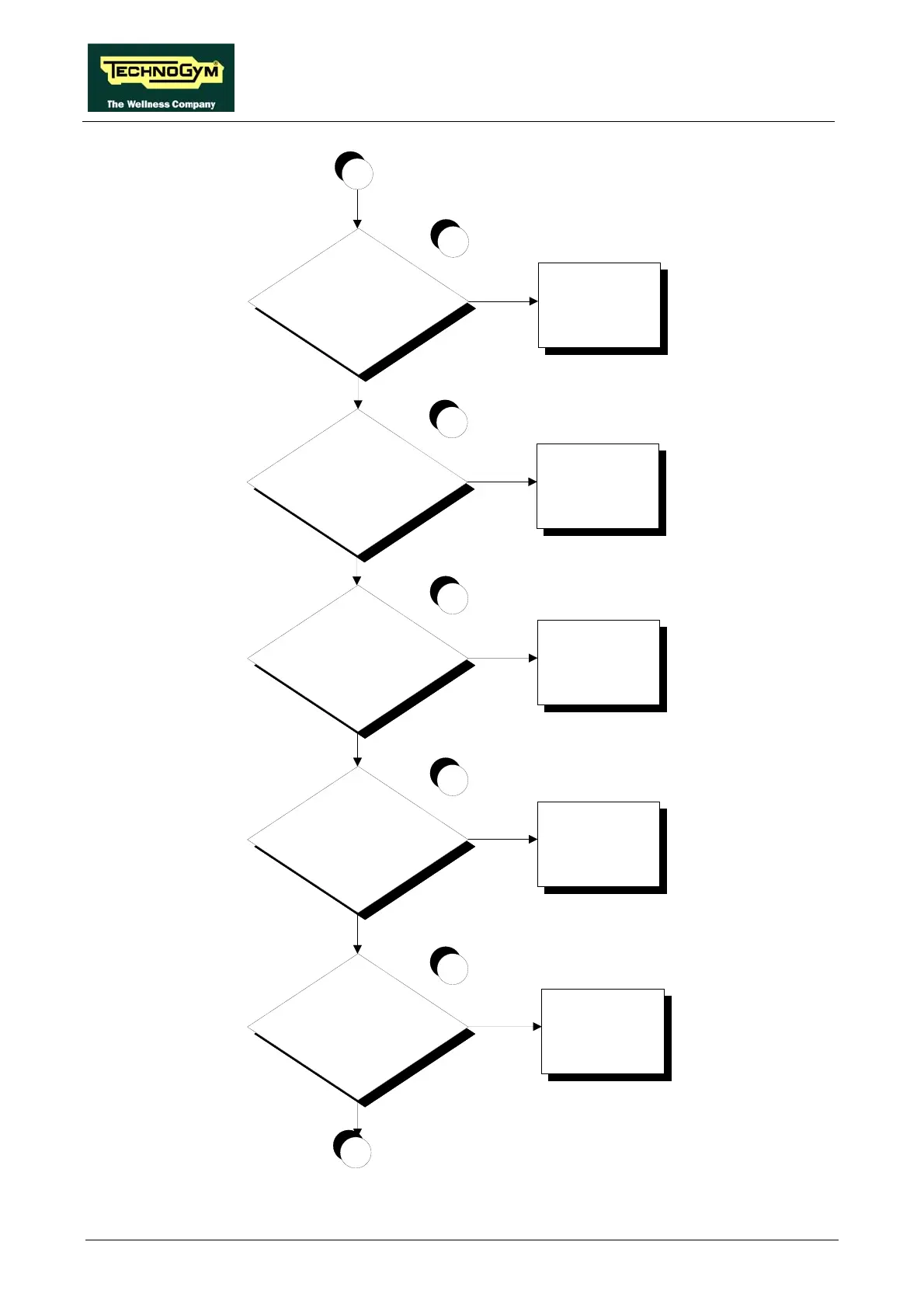

Is the voltage at the
output of the f ilter correct?
Replace the f ilter
Is the v oltage at the input
to the power supply board
correct?
NO
YES
NO
YES
6
Replace cable TRM-04
5
A
Are the DC v oltages at the
output of the power supply
board correct?
Replace the power
supply board
B
NO
YES
7
Is the voltage at the input
to the filter correct?
Replace cable TRM-03
NO
4
Is the v oltage at the
output of the circuit
breaker correct?
Replace the circuit
breaker
NO
3
YES
YES
Continued on the following page.
