SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.43

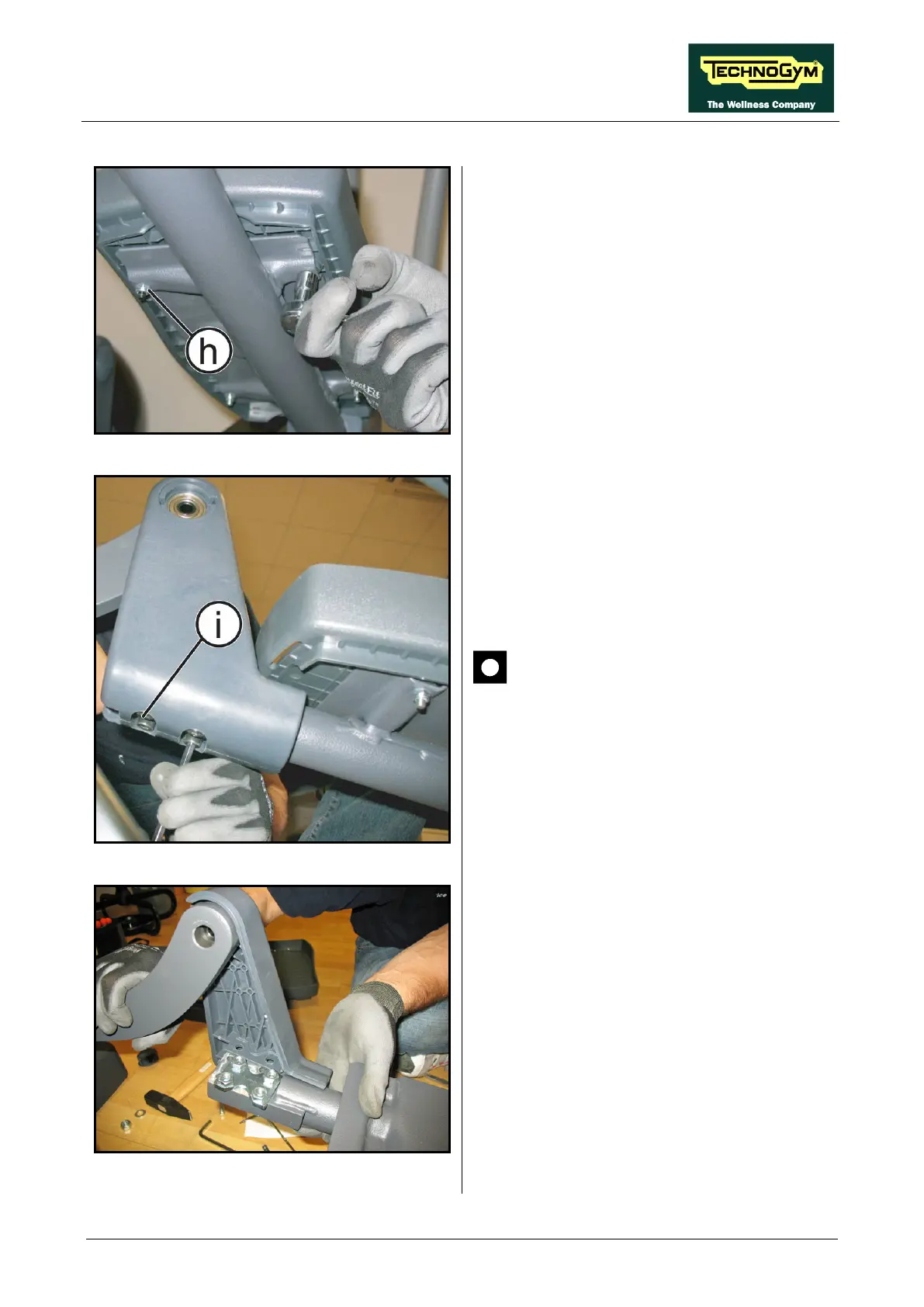

Figure 7.12-7
6. Back off the 4 nut (h)
with a 10mm socket
wrench.
7. Remove the footboard.
Figure 7.12-8
8. Back off the 4 screws (i)
with a 4mm
hexagonal wrench.
ATTENTION: During reassembly
lock down the screws using a torque
wrench setting of 15Nm, (not overly so
as not to damage the plastic).
Figure 7.12-9
9.
At this point it’s possible to release the
footboard lever from the front connection
mechanism.
Continued in following page...
