SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.44

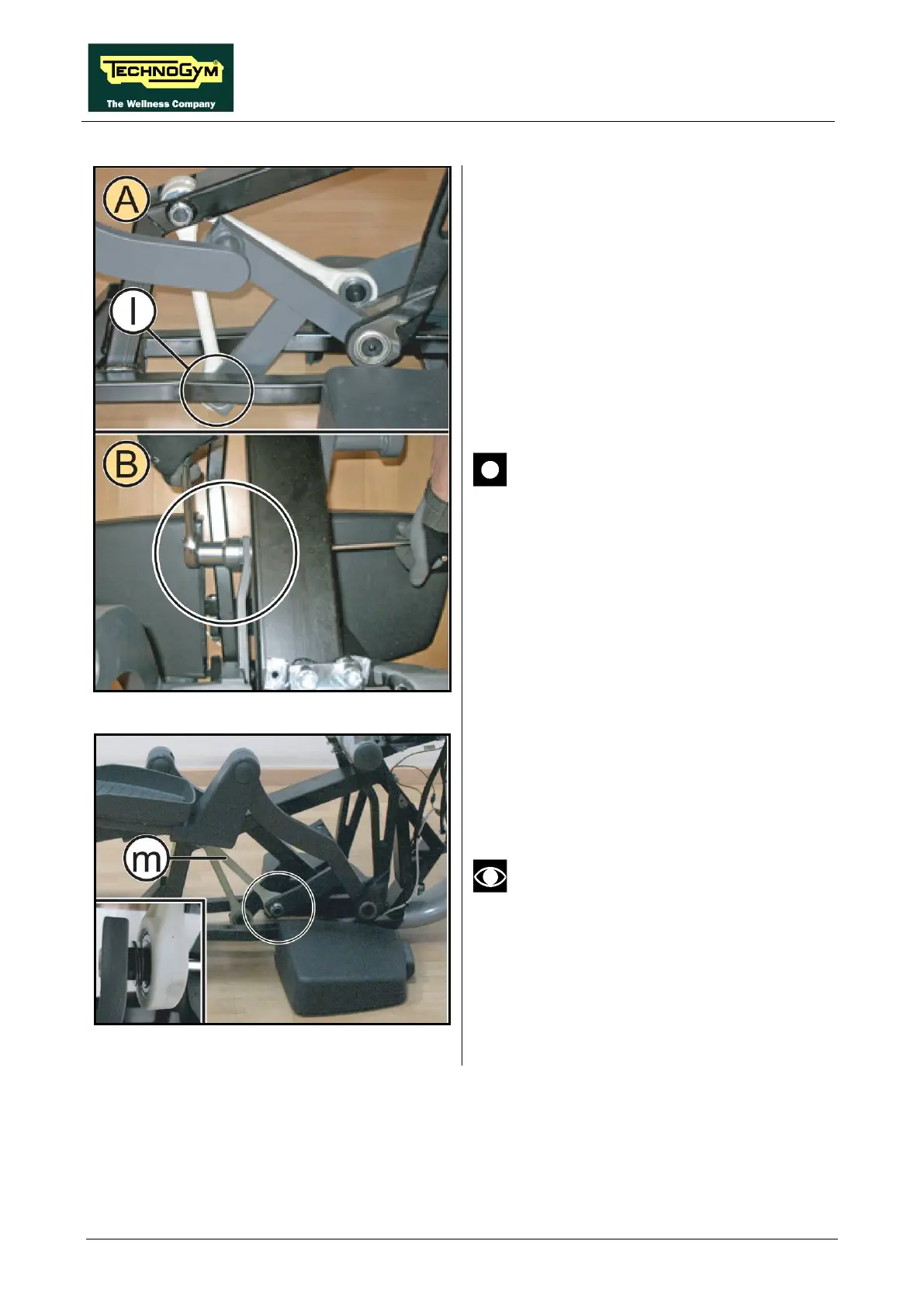

Figure 7.12-10
10. Remove the pin (l) indicate in the figure (A)
with a 6mm hexagonal wrench and lock the
ring nut on the opposite side with a 20mm
ring nut spanner, as highlight in figure (B).
ATTENTION: During reassembly
lock down the ring nut using a torque
wrench setting of 62Nm.
Figure 7.12-11
11. Release the front lever (m).
During the reassembly place the 3
washer on the lever side and 1 washer
on the internal side, as shown in the
detail.
Continued in following page...
