Transport
5�8�4 Transport with a crane
● Place the machine onto a pallet and secure to the pallet using fastening brackets.
● Use transport harnesses and observe the permitted load.
● Observe the permitted crane load. Otherwise, the instructions for transport with a forklift
apply.
5�8�5 Unloading the machine from the pallet
Drive the forklift under the crosspieces of the base frame and lift the machine. The forklift must
have a sucient load-bearing capacity and fork length.
● Unpack the machine and check it for transport damage.
● Detach the machine xings from the wooden pallet.
Undo the screws on the fastening brackets.
● Lift the machine and move away, or remove the wooden
pallet.
● When lifting the machine, make sure that the centre of
gravity of the machine is between the forks of the forklift.
● If an unstable machine position is noted during lifting, put
the machine down, approach it with the forklift again, and
lift again.
● Place the machine down evenly onto its feet.

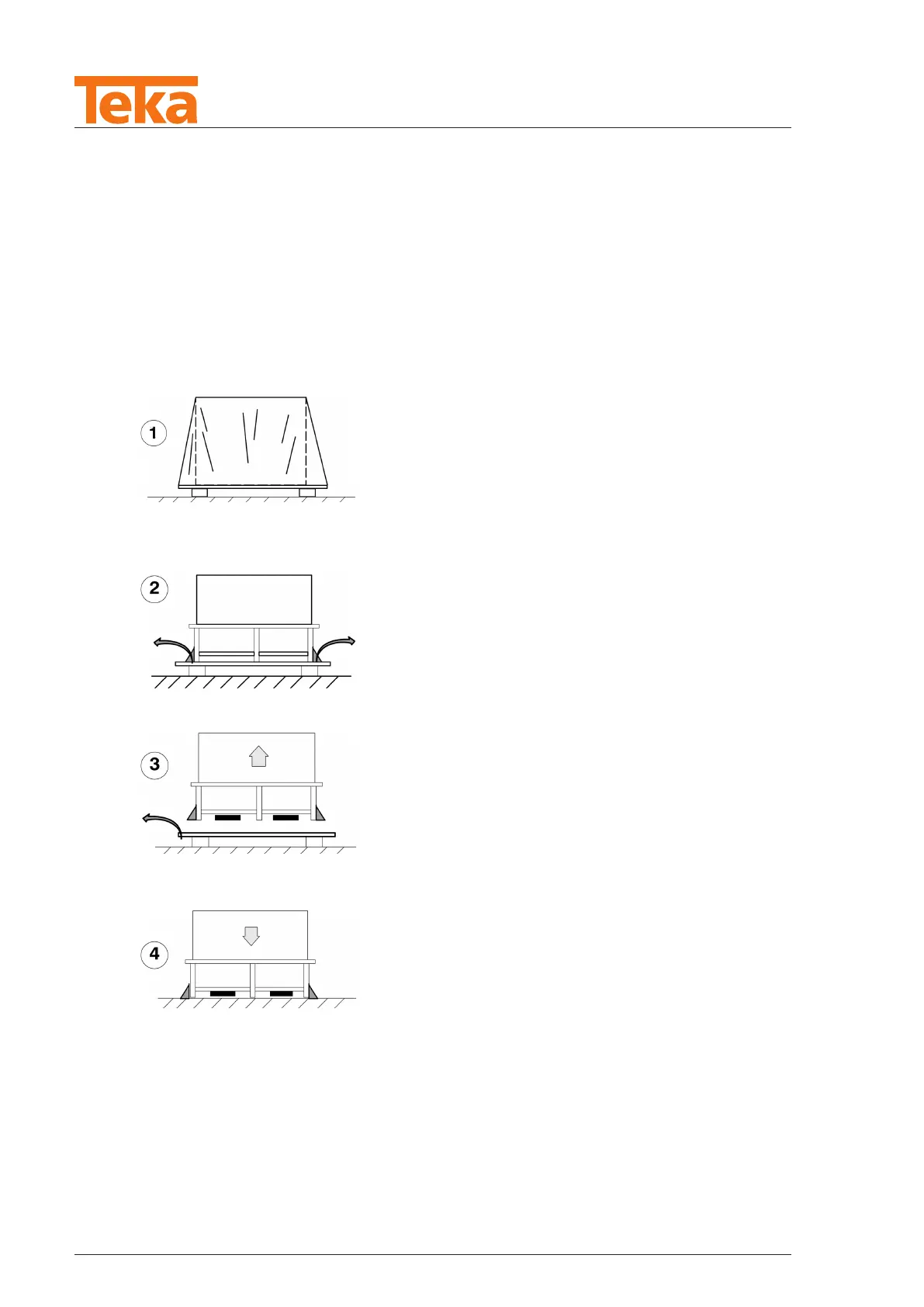

Fig. 33: Unloading the machine
5�8�6 Ground conditions
For the external dimensions, weights, and oor load, see the DD.
