Page 72 of 95
7.10-00110b_en
Maintenance
10.1.7.5 Assembly of wear sleeves
● The rubber or PUR wear sleeves (2) are pressed over the mixing arms (1) from the front
directly above the mixing paddles (3) and are secured on the rear by turning in the retainers
integrated into the sleeve.
● The steel or special cast metal wear sleeves are additionally secured using tack welds (with
the appropriate electrodes).
1
2
3

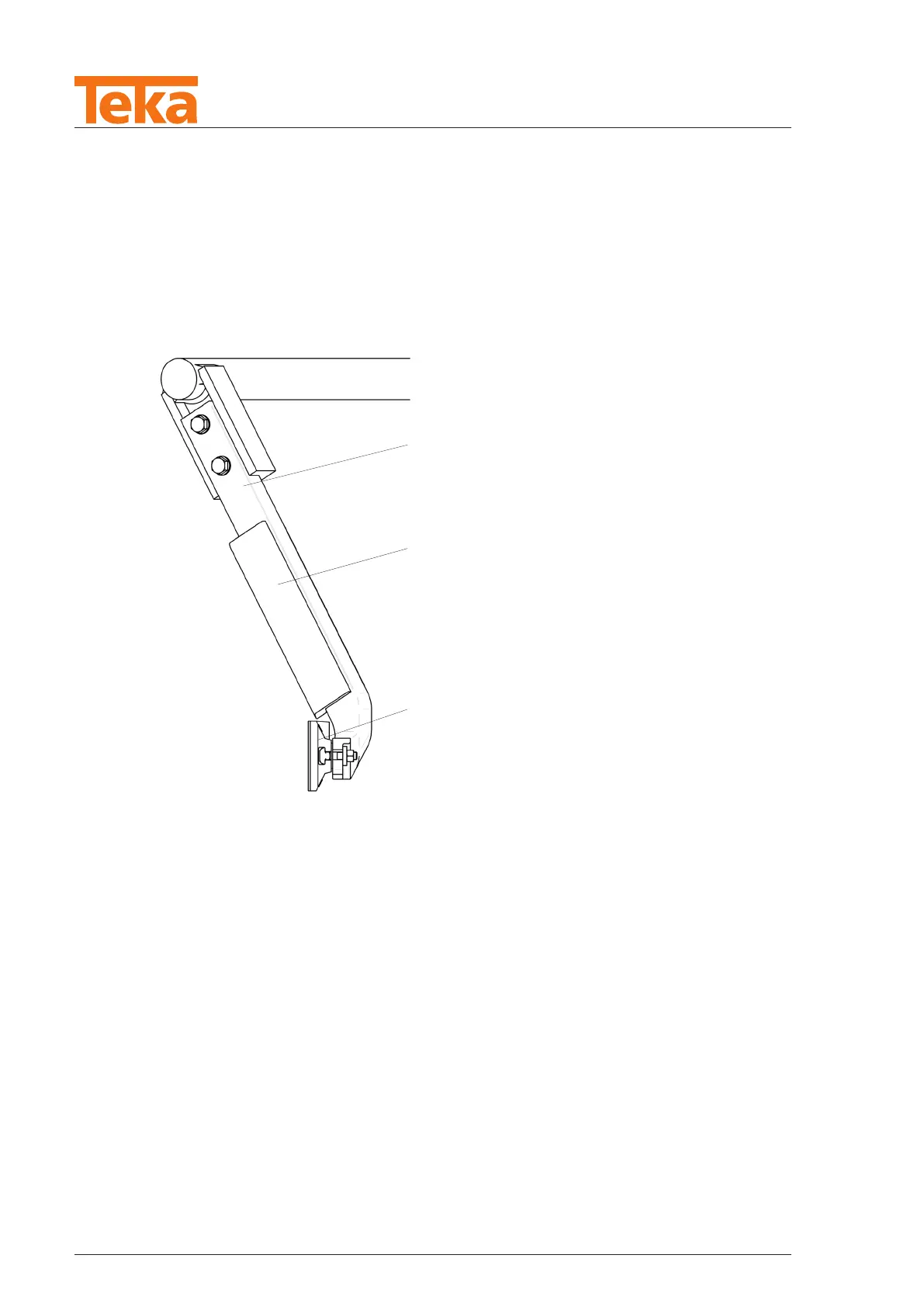

Fig. 52: Replacement of wear sleeves
1 Mixing arm
2 Wear sleeve
3 Paddle
