Troubleshooting
9�3 Opening the discharge slide
9�3�1 Opening with pulling device
1. Press and hold down the left or right control bolt in the solenoid coils (4) on the longitudinal
slide (1).
2. Hook in the pulling device in the eyelet on the slide and hoist.
3. Press slide shut.

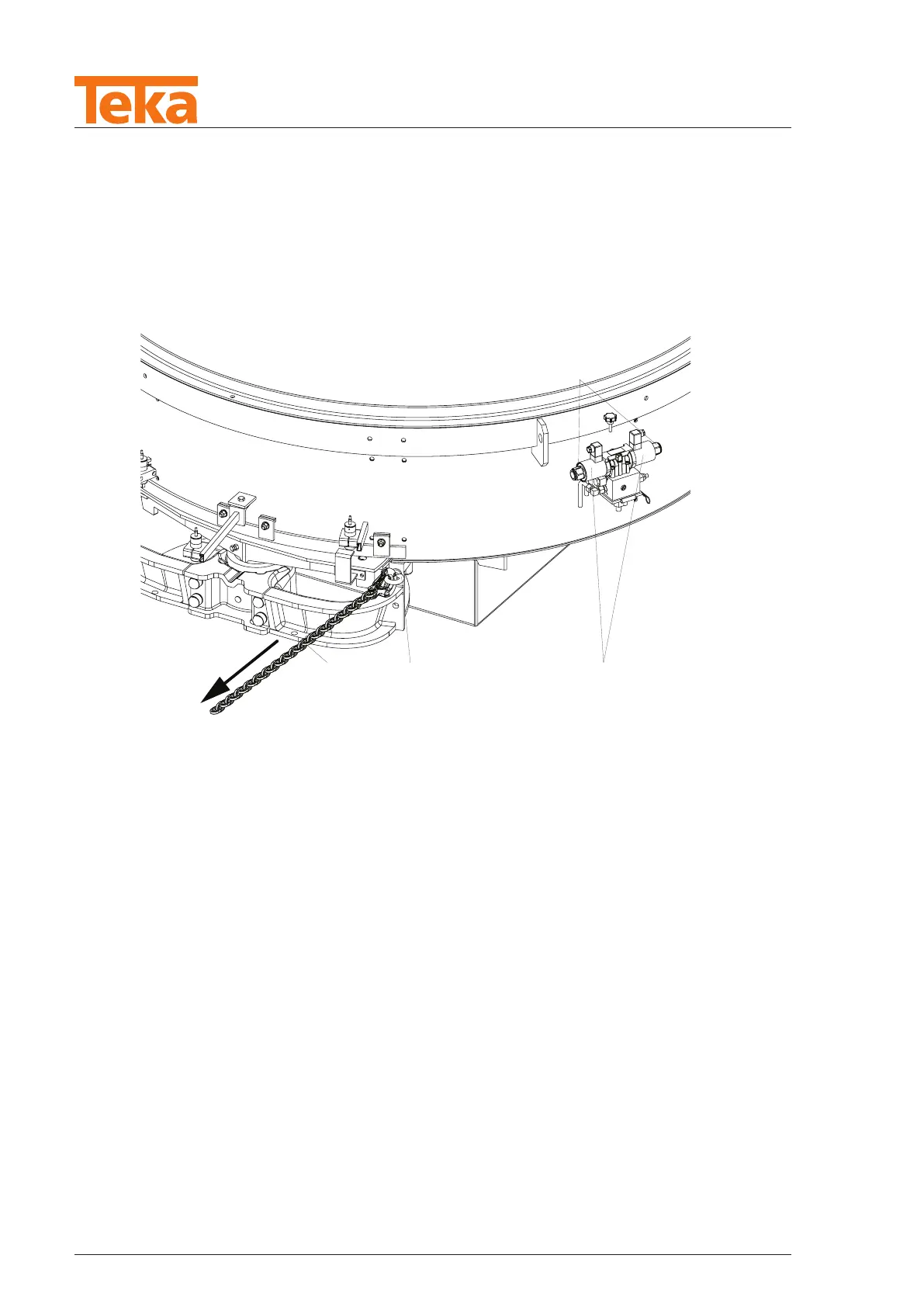

Fig. 43: Opening with pulling device
1 Longitudinal slide
2 Eyebolt on discharge slide
3 Hoist chain
4 Solenoid coils
