Placing the machine into operation
7�6 Checking the transmission oil level
7�6�1 Checking the transmission oil level
1. Check the oil level using the oil dipstick (1).
Max. oil level: Top marking ("max") on the oil dipstick.
2. If necessary, add oil through the oil nozzle (2); for the oil quality, see "Lubricant recommen-
dation".
1
2

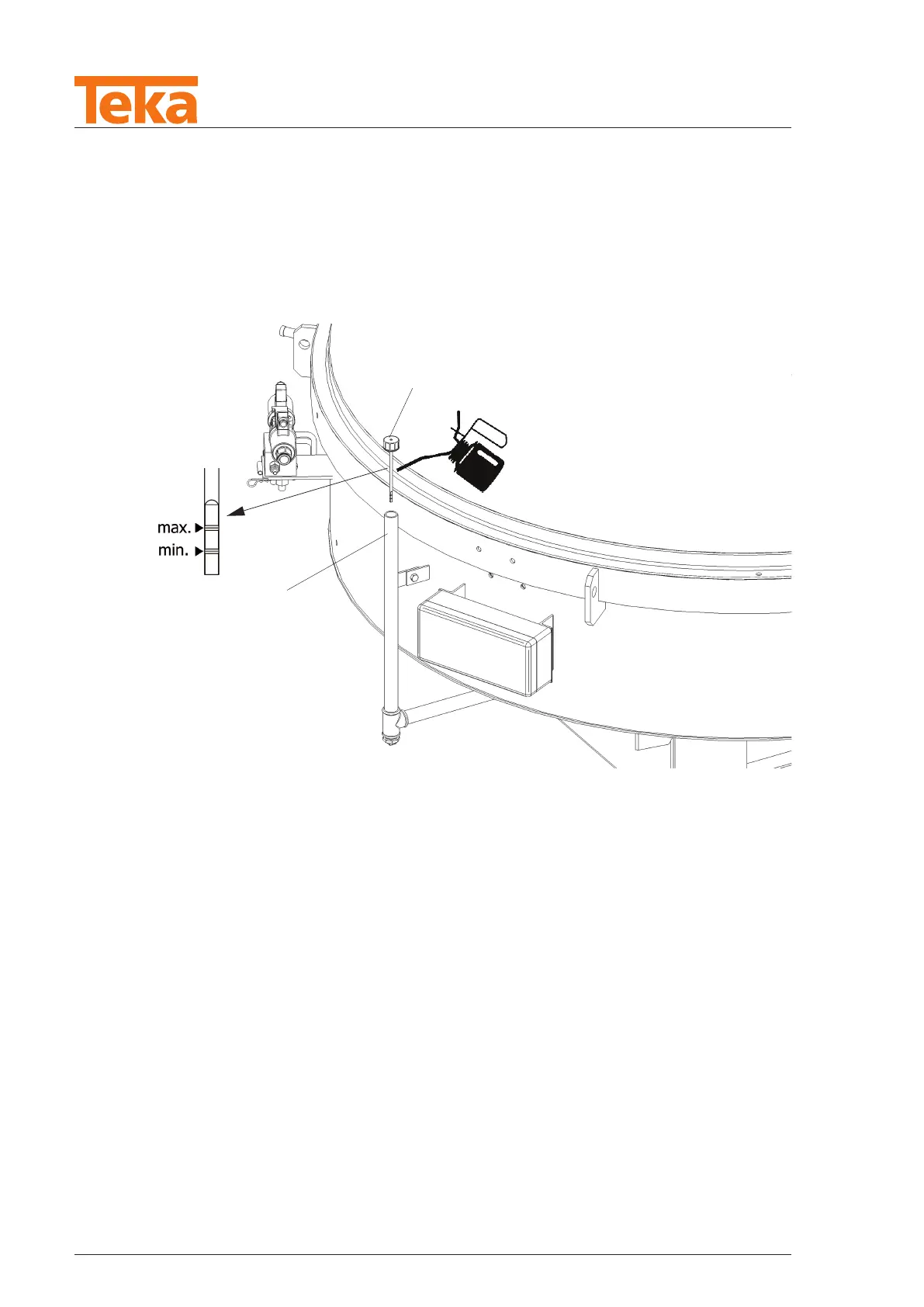

Fig. 37: Checking the oil level
1 Oil dipstick
2 Oil nozzle
