Maintenance
10.1.7.6 Replacement of scraper for mixing trough
1. Remove the mounting (4) with the clamp (5) and dismantle the scraper.
2. Install the new scraper (3) and lightly x into place with the clamps (5) and mountings (4).
3. Adjust the scraper (3) so that there is a gap of 1-2 mm from the wear liner of the discharge
slide (1).
4. Tighten the clamps with the fastening screws again.

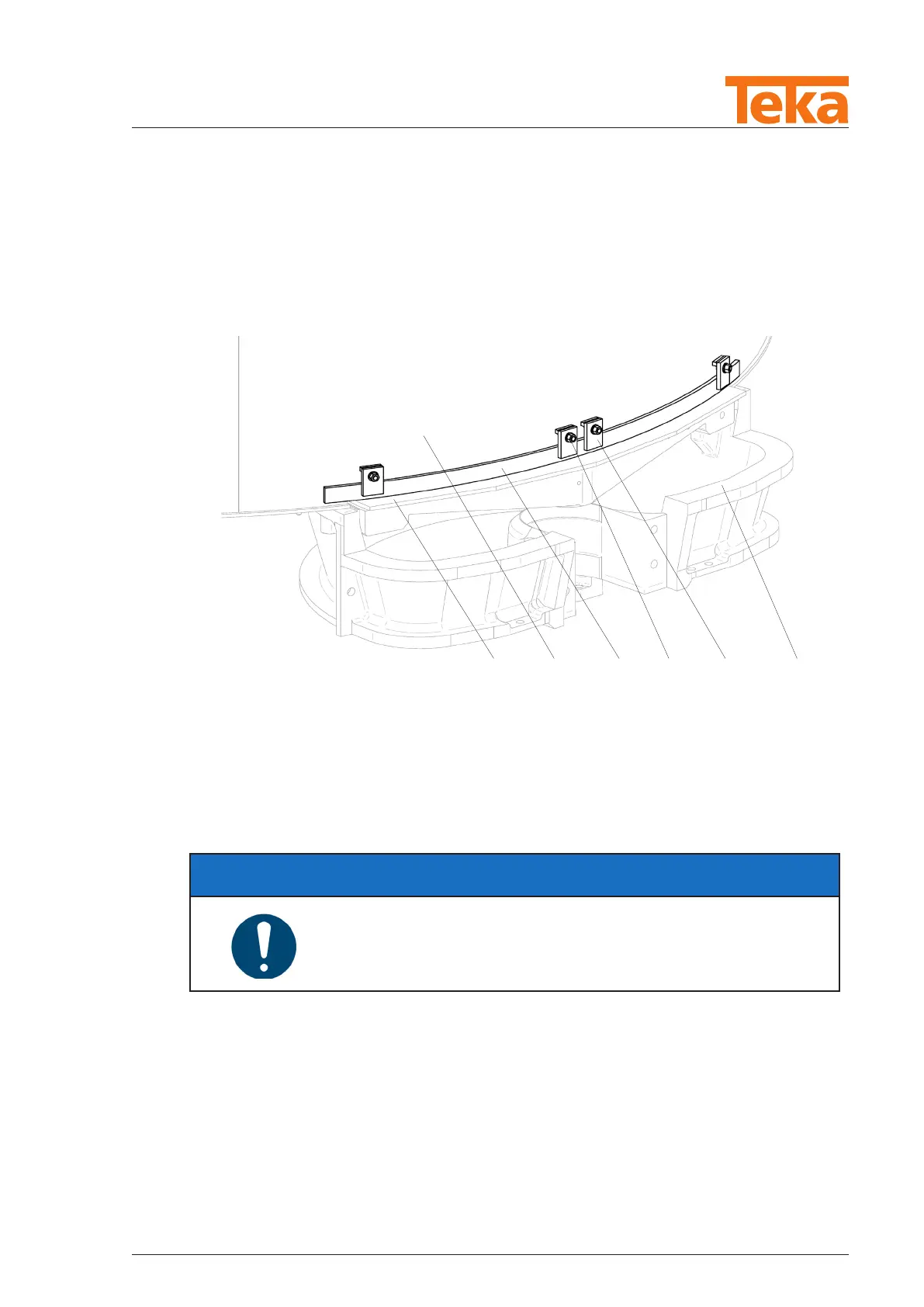

Fig. 53: Scraper
1 Discharge slide wear liner
2 Mixing trough
3 Scraper
4 Screw connection (mounting)
5 Clamp
6 Discharge
NOTE
► All scrapers are to be checked at regular intervals and readjus-
ted if necessary�
