Page 89 of 957.10-00110b_en
Options
13�3 Mixer ventilation (air bag)
13�3�1 Assembly of the mixer ventilation:
1. Attach the air bag (1) to the venting nozzle (3) with the quick-release clamp (2).
2. Suspend the air bag loosely.
3. Insert the venting nozzle (3) into the mixer opening (4) vertically.

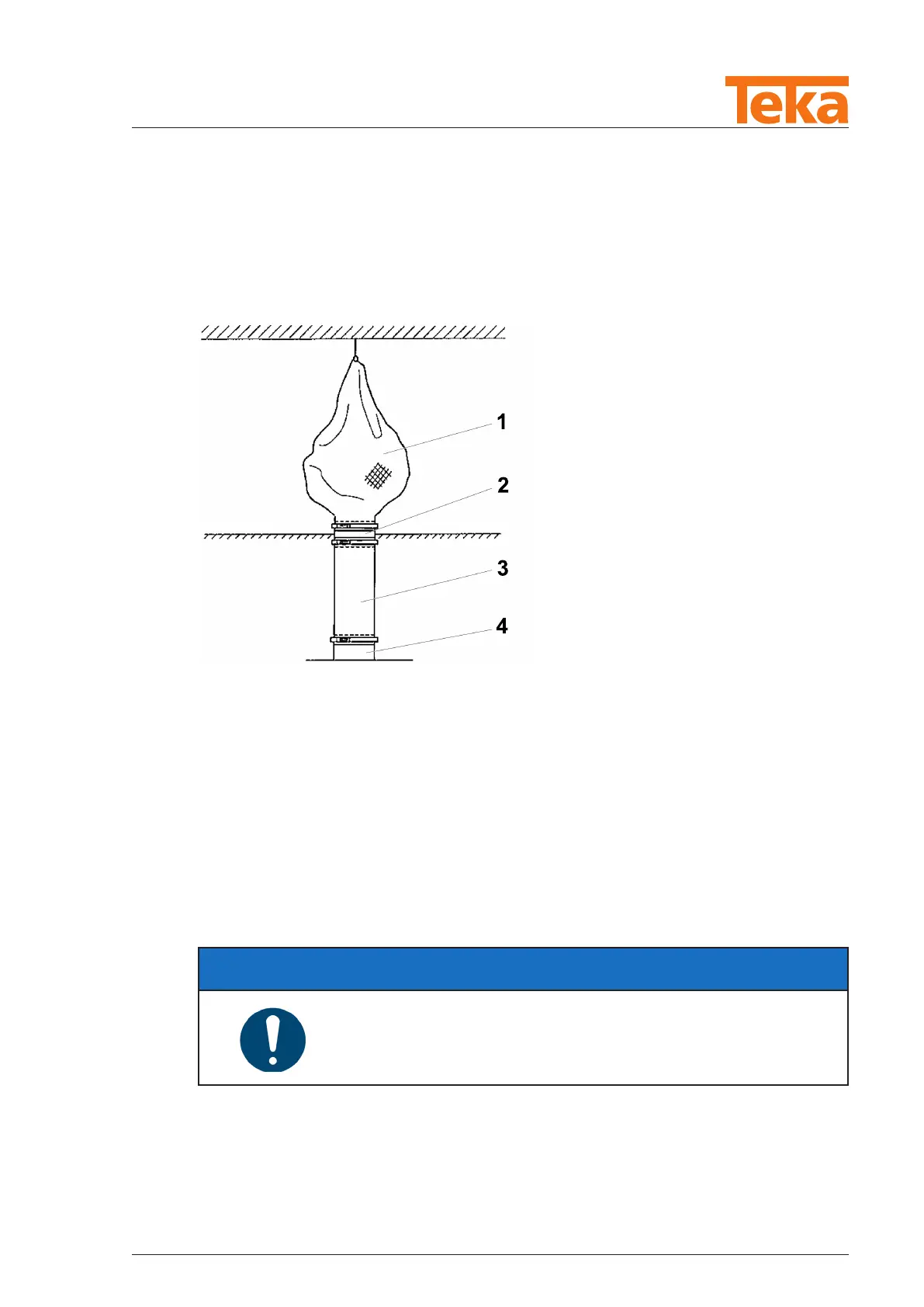

Fig. 65: Mixer ventilation
1 Air bag
2 Quick-release clamp
3 Venting nozzle
4 Mixer opening
An electromechanical venting unit is possible as a variant. For the installation procedure, see
the relevant operating instructions (appendix).
NOTE
► For the relevant mixer ventilation system, see the design dra-
wing�
