Placing the machine into operation
7�7�2 Adjusting the opening angle of the discharge slide
1. Set the motion restriction for the slide by the various limit switches (3+6) with screws so that
the slide does not hit the mechanical limit stop.
2. Set the discharge to the desired angle for partial discharge (optional, stepless from 30°-
120°) by pivoting the limit switch bracket (4) along with the limit switch (5).
3. The discharge slide is height adjustable in order to achieve the best possible trough oor
setting (see chapter "7.7.3 Height adjustment of discharge slide").
4. Carry out a functional check of the discharge slide:
Operate the discharge slide with a left-hand and right-hand motion.
1
2
5
6
3
2
2
4
7

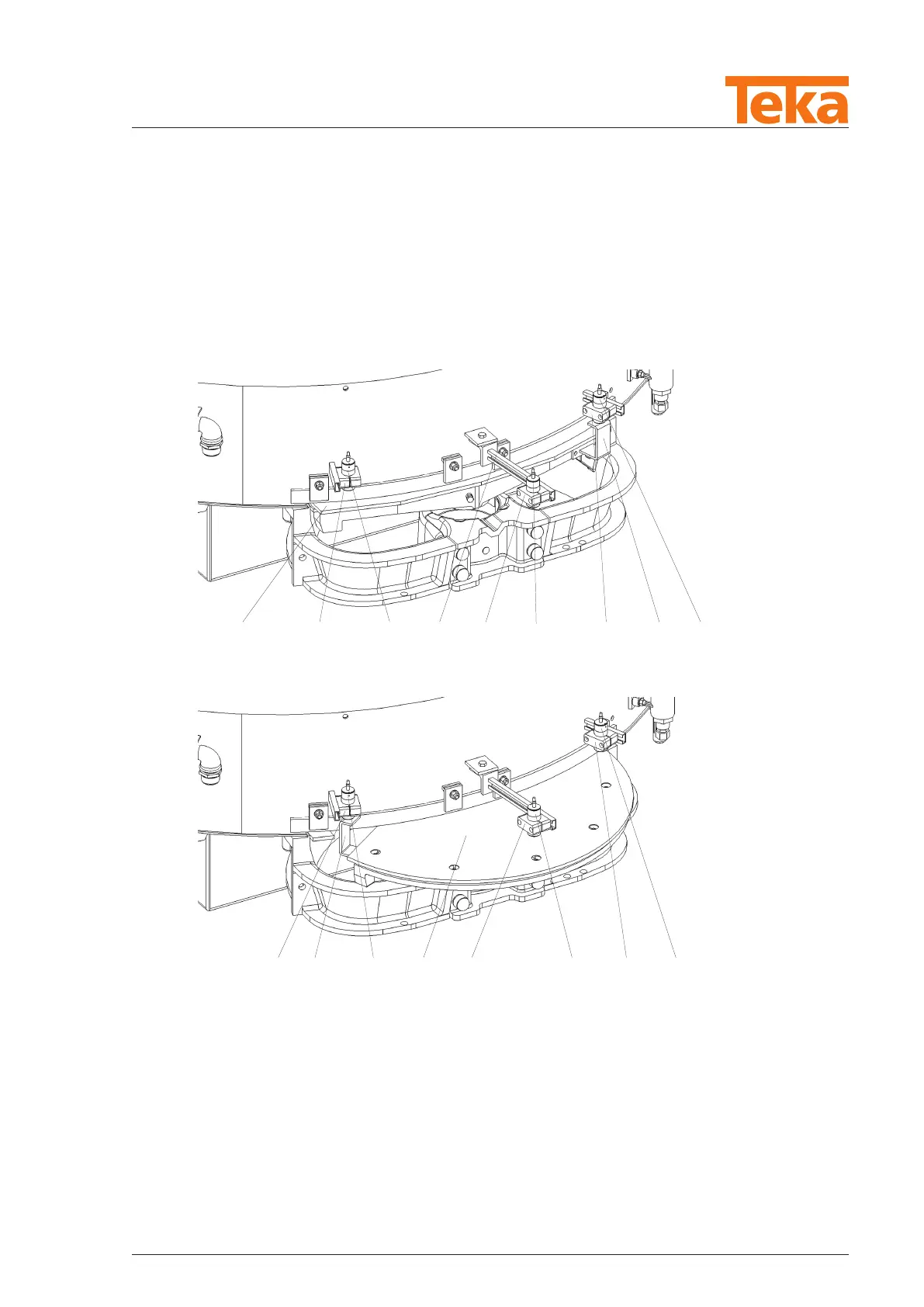

Fig. 40: Discharge closed
5
3
2
2
2
1
6
7
Fig. 41: Discharge open
1 Discharge slide
2 Fixation of limit switch
3 Limit switch for slide open
4 Limit switch bracket
5 Limit switch for partial opening of slide
6 Limit switch for slide closed
7 Switch ag
