Teka THZ 375 - Servicing

Page 64 of 95
7.10-00110b_en
Maintenance
10�1 Servicing
1
2
3
4
5
6
7
8
9
10
11
13
14
12

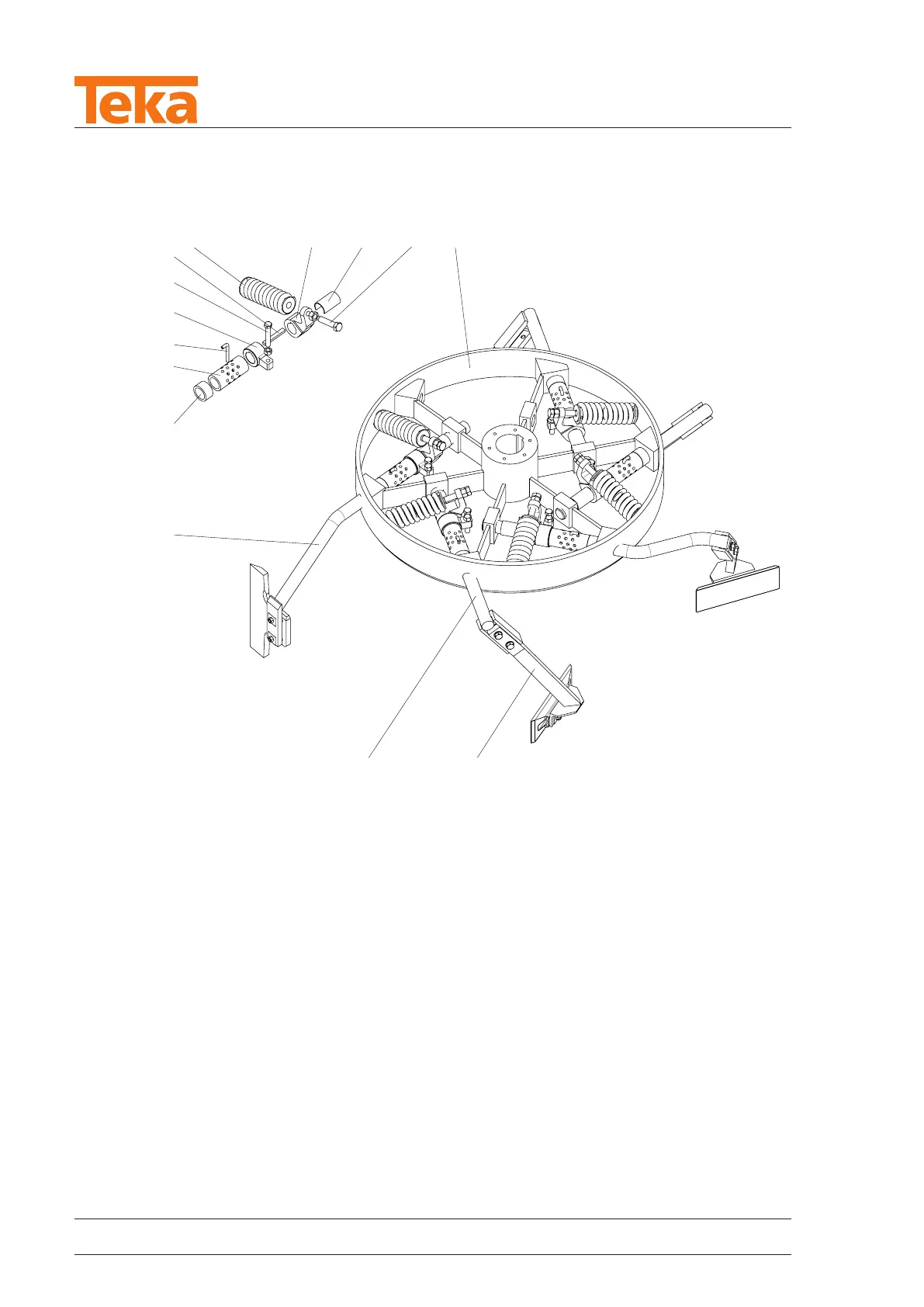

Fig. 45: Replacement of mixing arms
1 Outer scraper arm
2 Compensation ring
3 Spacer tube
4 Plug bolt
5 Adjusting ring
6 Adjustment screw
7 Feather key
8 Spring (preload length 210 mm)
9 Adjusting ring
10 Insertable sheet
11 Adjustment screw
12 Rotor case
13 Bottom part of mixing arm
14 Top part of mixing arm
