10�1�3 Replacement of bottom part of mixing arms
1
2
3
4
5

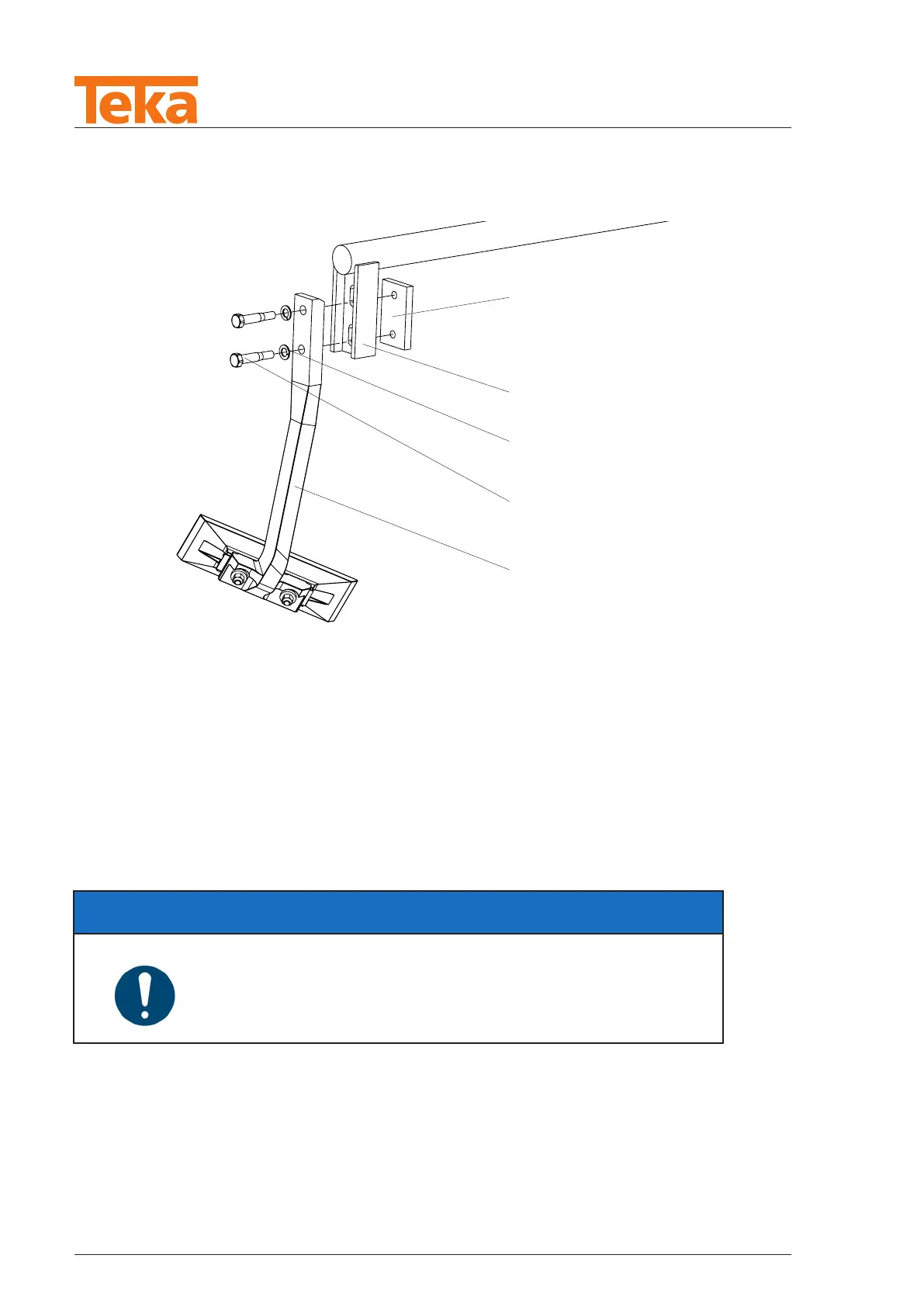

Fig. 46: Replacement of bottom part of mixing arm
1 Threaded plate
2 Top part of mixing arm
3 Disk
4 Screw
5 Bottom part of mixing arm
If you only need to replace the bottom part of a mixing arm (5), screw connections (1, 3, 4)
must be undone.
I NOTE
The connection between the top part of the mixing arm and the
bottom part of the mixing arm must be retightened after 5 hours
operating time�
