Tektronix 2212 Service Manual

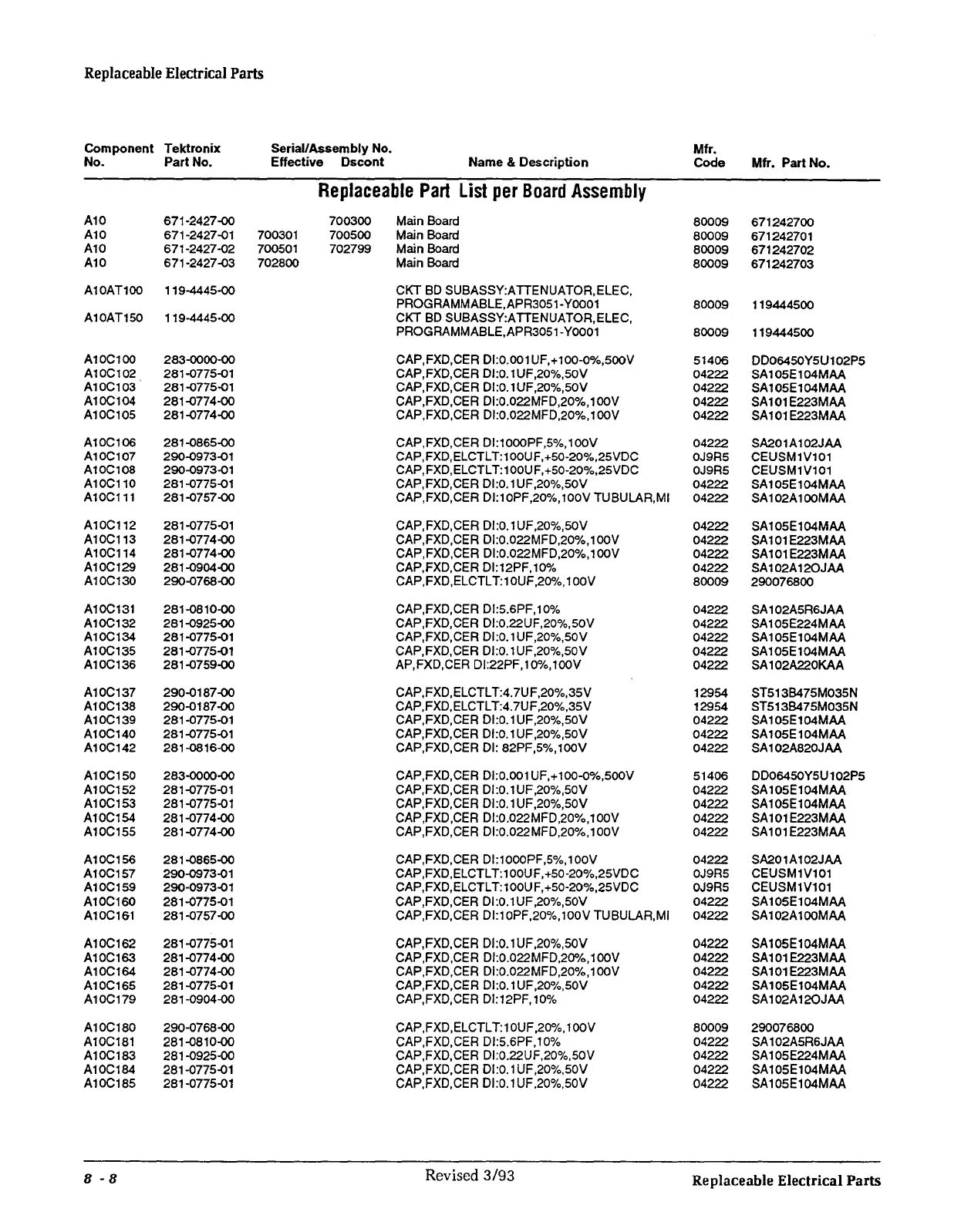

Replaceable Electrical Parts
Component Tektronix Serial/Assembly No.
Mfr.
No.
Part No.
Effective Oscont
Name & Description
Code Mfr. Part No.
Replaceable Part List per Board Assembly
A10
671-2427-00 700300 Main Board
80009
671242700
A10
671-2427-01
700301
700500 Main Board
80009
671242701
A10 671-2427-02 700501
702799 Main Board
80009 671242702
A10 671 ·2427-03 702800 Main Board
80009
671242703
A10AT100 119-4445-00
CKT BD SUBASSY:ATTENUATOR,ELEC,
PROGRAMMABLE,APR3051 • Y0001
80009
119444500
A10AT150
119-4445·00 CKT BO SUBASSY:ATTENUATOR,ELEC,
PROGRAMMABLE,APR3051-Y0001
80009
119444500
A10C100
283-0000-00
CAP,FXD,CER 01:0.001 UF,+100-0%,500V
51406 0006450Y5U102P5
A10C102 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C103 281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C104
281-0774·00 CAP,FXD,CER Dl:0.022MFD,20%,100V
04222
SA101E223MAA
A10C105 281-0774-00
CAP,FXD,CER Dl:0.022MFD,20%,100V
04222
SA101E223MAA
A10C106
281-0865-00 CAP,FXD,CER Dl:1000PF,5%,100V
04222
SA201A102JAA
A10C107
290-0973-01 CAP,FXD,ELCTLT:100UF,+50·20%,25VDC
OJ9R5 CEUSM1V101
A10C108 290-0973-01
CAP, FXD,ELCTL T: 1 OOU F,+50·20%,25VDC
OJ9R5 CEUSM1V101
A10C110
281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C111 281-0757-00
CAP,FXD,CER Dl:10PF,20%, 100V TUBULAR.Ml 04222
SA 102A 1 OOMAA
A10C112
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C113
281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%, 100V
04222
SA101E223MAA
A10C114
281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%,100V
04222
SA101E223MAA
A10C129 281-0904-00
CAP,FXD,CER Dl:12PF,10%
04222 SA 102A 120JAA
A10C130 290-0768-00 CAP,FXD,ELCTLT:10UF,20%,100V
80009 290076800
A10C131 281-0810-00 CAP,FXD,CER Dl:5.6PF,10%
04222 SA 102A5R6JAA
A10C132 281-0925-00 CAP,FXD,CER Dl:0.22UF,20%,50V
04222 SA105E224MAA
A10C134 281-0775-01 CAP,FXD,CER Dl:0.1 UF,20%,50V
04222
SA105E104MAA
A10C135 281-0775-01 CAP,FXD,CER Dl:0.1 UF,20%,50V
04222 SA105E104MAA
A10C136 281-0759-00 AP,FXD,CER Dl:22PF,10%,100V
04222
SA 102A220KAA
A10C137 290-0187-00 CAP,FXD,ELCTL T:4. 7UF,20%,35V
12954 ST513B475M035N
A10C138 290-0187-00 CAP,FXD,ELCTL T:4. 7UF ,20%,35V
12954 ST5138475M035N
A10C139 281-0775-01 CAP,FXD,CER 0I:0.1 UF,20%,50V
04222 SA105E104MAA
A10C140 281-0775-01 CAP,FXD,CER 0I:0.1 UF,20%,50V
04222 SA105E104MAA
A10C142 281-0816·00 CAP,FXD,CER DI: 82PF,5%,100V 04222 SA 102A820JAA
A10C150 283-0000-00 CAP,FXD,CER 01:0.001 UF,+100-0%,500V
51406 0006450Y5U102P5
A10C152 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C153 281-0775-01 CAP,FXO,CEA 01:0.1 UF,20%,50V
04222 SA105E104MAA
A10C154 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%,100V
04222 SA101E223MAA
A10C155 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%,100V 04222
SA101E223MAA
A10C156 281-0865-00 CAP,FXD,CER Dl:1000PF,5%,100V 04222 SA201A102JAA
A10C157 290-0973-01 CAP ,FXD ,ELCTL T: 1 OOU F ,+50-20%,25VDC OJ9R5 CEUSM1V101
A10C159
290-0973-01 CAP,FXD,ELCTL T:100UF,+50·20%,25VDC OJ9R5 CEUSM1V101
A10C160
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V 04222 SA105E104MAA
A10C161 281-0757-00 CAP,FXD,CER DI:1 OPF,20%, 100V TUBULAR.Ml 04222
SA102A100MAA
A10C162 281-0775-01 CAP,FXD,CER 0I:0.1 UF,20%,50V 04222
SA105E104MAA
A10C163 281-0774-00 CAP ,FXD ,CEA Dl:0.022MFD,20%, 1 OOV 04222
SA 101 E223MAA
A10C164 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%, 1 OOV 04222
SA 101 E223MAA
A10C165
281-0775-01 CAP,FXD,CER 0I:0.1 UF,20%,50V 04222
SA105E104MAA
A10C179 281-0904-00 CAP,FXD,CER Dl:12PF, 10% 04222
SA 102A 120JAA
A10C180 290-0768-00 CAP,FXD,ELCTLT:10UF,20%, 100V
80009
290076800
A10C181 281-0810-00 CAP,FXD,CER Dl:5.6PF,10% 04222 SA 102A5R6JAA
A10C183 281-0925-00
CAP,FXD,CER Dl:0.22UF,20%,50V 04222 SA105E224MAA
A10C184 281-0775-01 CAP,FXD,CEA Dl:0.1 UF,20%,50V
04222
SA105E104MAA
A10C185 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
8 · 8
Revised 3/93
Replaceable Electrical Parts
