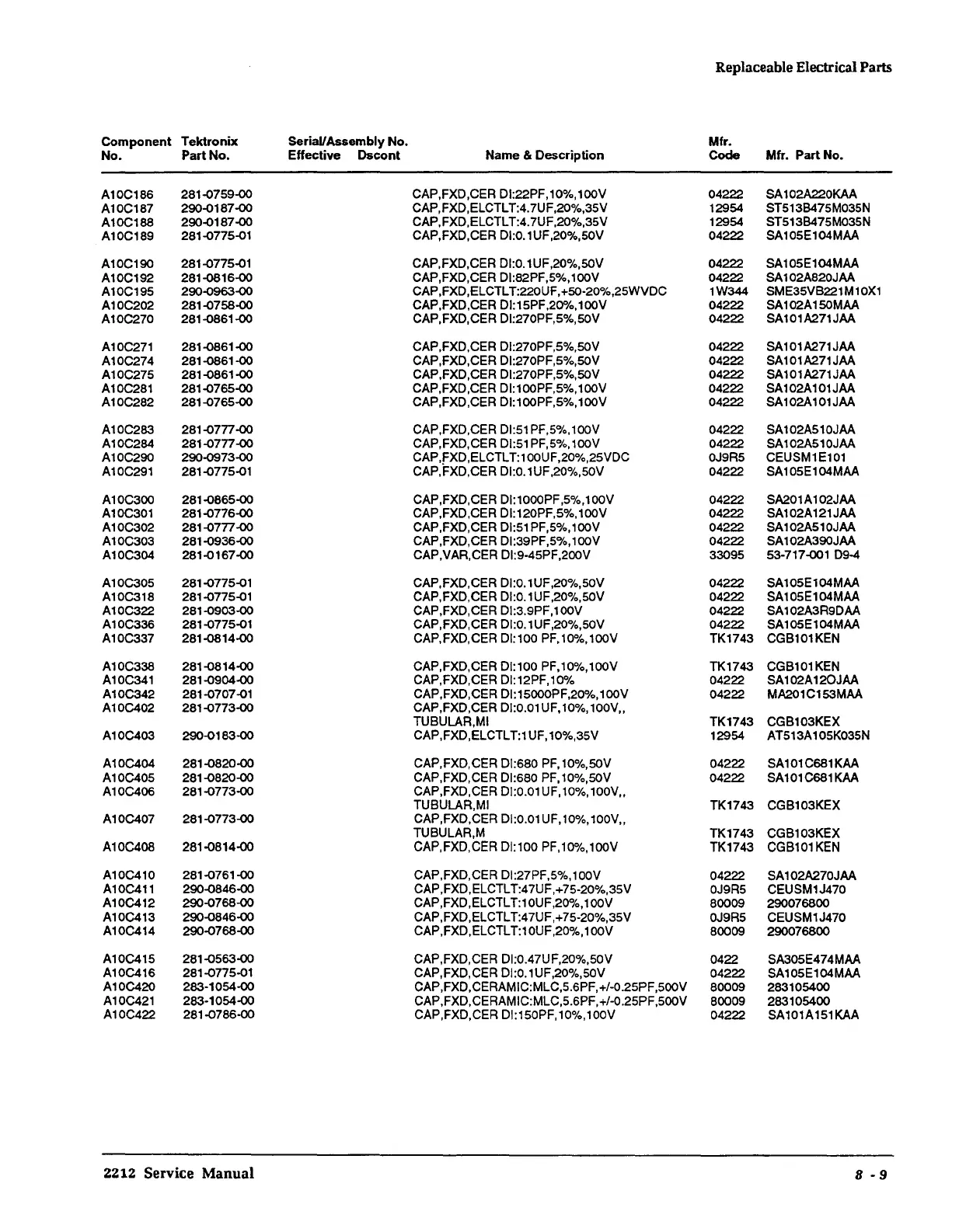

Tektronix 2212 Service Manual

Replaceable Electrical Parts
Component
Tektronix Serial/Assembly No. Mfr.
No.
Part No. Effective Dscont
Name & Description
Code Mfr. Part No.
A10C186
281-0759-00 CAP,FXD,CER Dl:22PF,10%,100V 04222 SA 102A220KAA
A10C187
290-0187-00
CAP,FXD,ELCTLT:4.7UF,20%,35V
12954 ST513B475M035N
A10C188
290-0187-00 CAP,FXD,ELCTL T:4.7UF,20%,35V 12954 ST513B475M035N
A10C189
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V 04222 SA105E104MAA
A10C190
281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,SOV 04222 SA105E104MAA
A10C192
281-0816-00 CAP,FXD,CER Dl:82PF,5%, 100V 04222
SA 102A820JAA
A10C195
290-0963-00 CAP,FXD,ELCTL T:220UF,+50-20%,25WVDC 1W344
SME35VB221M10X1
A10C202
281-0758-00 CAP,FXD,CER Dl:15PF,20%,100V 04222
SA 102A 1 SOMAA
A10C270 281-0861-00
CAP,FXD,CER Dl:270PF,5%,50V 04222 SA101A271JAA
A10C271 281-0861-00
CAP,FXD,CER Dl:270PF,5%,SOV 04222 SA101A271JAA
A10C274
281-0861-00 CAP,FXD,CER Dl:270PF,5%,SOV
04222 SA101A271JAA
A10C275
281-0861-00 CAP,FXD,CER Dl:270PF,5%,SOV 04222 SA101A271JAA
A10C281 281-0765-00 CAP,FXD,CER Dl:100PF,5%, 100V
04222 SA102A101JAA
A10C282
281-0765-00 CAP,FXD,CER Dl:100PF,5%, 100V 04222 SA102A101JAA
A10C283
281-0777-00 CAP,FXD,CER D1:51 PF,5%, 100V
04222
SA102A510JAA
A10C284 281-0777-00 CAP,FXD,CER D1:51 PF,5%, 100V 04222 SA102A510JAA
A10C290
290-0973-00
CAP ,fXD,ELCTL T: 1 00UF ,20%,25VDC 0J9R5 CEUSM1E101
A10C291
281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V 04222 SA105E104MAA
A10C300 281-0865-00 CAP,FXD,CER Dl:1000PF,5%,100V 04222
SA201A102JAA
A10C301 281-0776-00 CAP,FXD,CER Dl:120PF,5%, 100V 04222
SA102A121JAA
A10C302 281-0777-00 CAP,FXD,CER D1:51 PF,5%, 100V
04222 SA102A510JAA
A10C303 281-0936-00 CAP,FXD,CER Dl:39PF,5%, 100V 04222
SA 102A390JAA
A10C304 281-0167-00 CAP,VAR,CER Dl:9-45PF,200V
33095 53-717-001 D9-4
A10C305 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,SOV 04222 SA105E104MAA
A10C318
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V 04222 SA105E104MAA
A10C322 281-0903-00 CAP,FXD,CER Dl:3.9PF,100V 04222 SA102A3R9DAA
A10C336
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V 04222 SA105E104MAA
A10C337 281-0814-00 CAP,FXD,CER D1:100 PF, 10%, 100V TK1743 CGB101KEN
A10C338 281-0814-00 CAP,FXD,CER D1:100 PF,10%,100V TK1743 CGB101KEN
A10C341
281-0904-00
CAP,FXD,CER Dl:12PF,10%
04222
SA102A120JAA
A10C342 281-0707-01 CAP,FXD,CER Dl:15000PF,20%,100V
04222
MA201C153MAA
A10C402 281-0773-00 CAP,FXD,CER Dl:0.01 UF, 10%, 100V.,
TUBULAR.Ml TK1743 CGB103KEX
A10C403 290-0183-00
CAP,FXD,ELCTL T:1 UF, 10%,35V
12954 AT513A105K035N
A10C404 281-0820-00 CAP,FXD,CER Dl:680 PF, 10%,SOV 04222 SA101C681KAA
A10C405 281-0820-00
CAP,FXD,CER Dl:680 PF, 10%,SOV
04222 SA101C681KAA
A10C406 281-0773-00 CAP,FXD,CER Dl:0.01 UF, 10%, 100V.,
TUBULAR.Ml TK1743 CGB103KEX
A10C407
281-0773-00 CAP,FXD,CER Dl:0.01 UF, 10%, 100V.,
TUBULAR,M
TK1743 CGB103KEX
A10C408
281-0814-00
CAP,FXD,CER Dl:100 PF,10%,100V
TK1743 CGB101KEN
A10C410 281-0761-00 CAP,FXD,CER Dl:27PF,5%,100V
04222 SA 102A270JAA
A10C411
290-0846-00
CAP,FXD,ELCTL T:47UF ,+75-20%,35V
0J9R5 CEUSM1J470
A10C412
290-0768-00
CAP,FXD,ELCTLT:10UF,20%,100V
80009 290076800
A10C413
290-0846-00
CAP,FXD,ELCTL T:47UF ,+75-20%,35V
0J9R5
CEUSM1J470
A10C414 290-0768-00 CAP,FXD,ELCTL T: 1 0UF ,20%, 1 00V
80009 290076800
A10C415 281-0563-00
CAP,FXD,CER Dl:0.47UF,20%,50V
0422
SA305E474MAA
A10C416 281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C420 283-1054-00
CAP,FXD,CERAMIC:MLC,5.6PF,+/-0.25PF,500V
80009 283105400
A10C421 283-1054-00
CAP,FXD,CERAMIC:MLC,5.6PF,+/-0.25PF,500V 80009 283105400
A10C422 281-0786-00
CAP,FXD,CER Dl:150PF,10%,100V
04222
SA101A151KAA
2212 Service Manual
8 - 9
