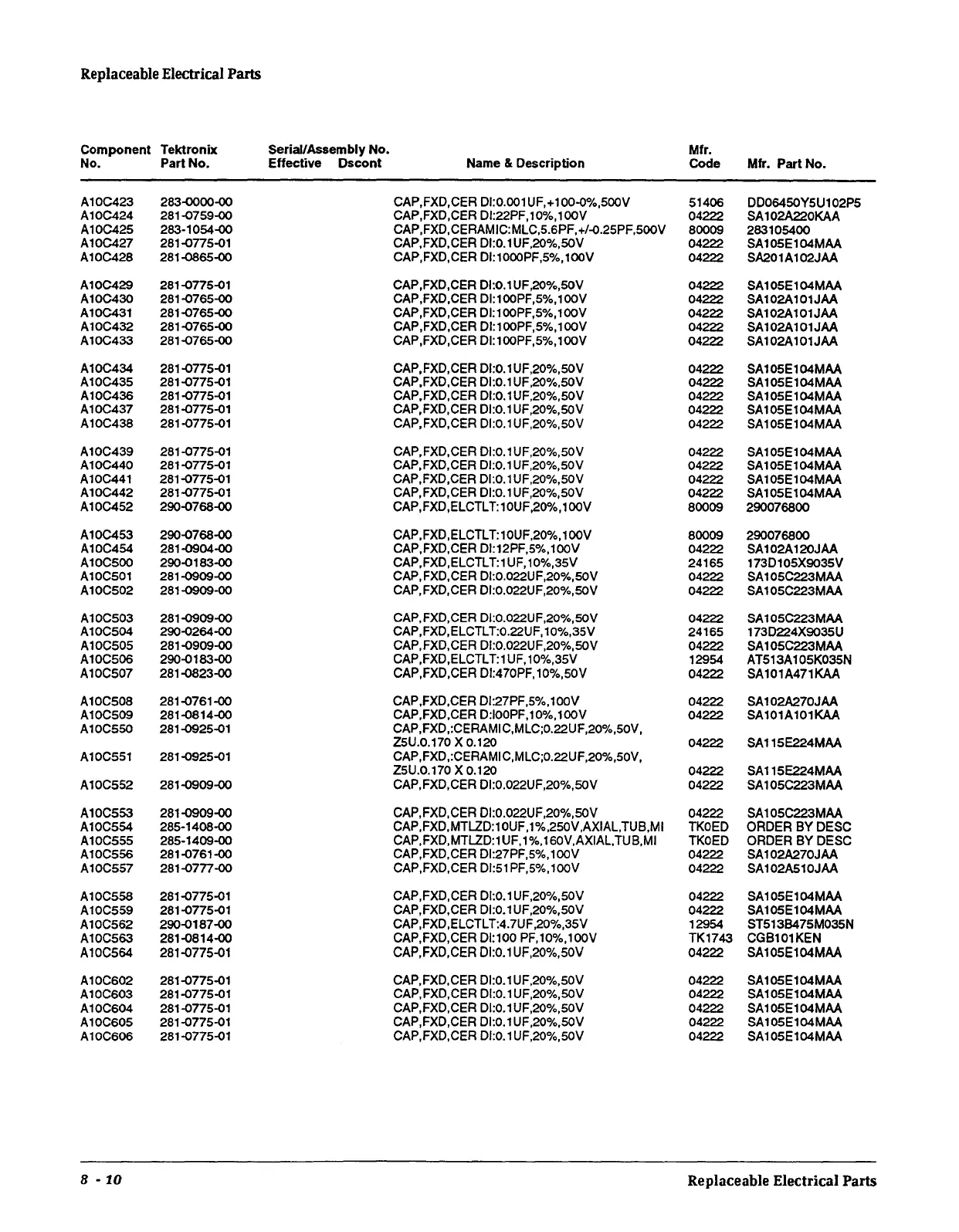

Tektronix 2212 Service Manual

Replaceable Electrical Parts
Component Tektronix
Serial/Assembly No.
Mfr.
No. Part No. Effective Dscont Name & Description
Code
Mfr. Part No.
A10C423
283-0000-00 CAP,FXD,CER D1:0.001UF,+100-0%,500V
51406
DD06450Y5U102P5
A10C424 281-0759-00
CAP,FXD,CER Dl:22PF, 10%, 100V
04222
SA 102A220KAA
A10C425 283-1054-00 CAP,FXD,CERAMIC:MLC,5.6PF,+/-0.25PF,500V
80009 283105400
A10C427
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C428 281-0865-00 CAP,FXD,CER Dl:1000PF,5%, 100V
04222
SA201A102JAA
A10C429 281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA 105E104MAA
A10C430 281-0765-00 CAP,FXD,CER Dl:100PF,5%, 100V
04222 SA102A101JAA
A10C431 281-0765-00
CAP,FXD,CER Dl:100PF,5%,100V 04222
SA102A101JAA
A10C432 281-0765-00 CAP,FXD,CER Dl:100PF,5%, 100V
04222
SA102A101JAA
A10C433 281-0765-00
CAP,FXD,CER Dl:100PF,5%, 100V
04222 SA102A101JAA
A10C434 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C435 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C436 281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C437 281-0775-01 CAP,FXD,CER Dl:0.1 UF,20%,SOV
04222
SA105E104MAA
A10C438 281-0775-01 CAP,FXD,CER Dl:0.1 UF,20%,50V
04222
SA105E104MAA
A10C439 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA 105E104MAA
A10C440 281-0775-01 CAP,FXD,CER 01:0.1 UF,20%,50V
04222 SA105E104MAA
A10C441 281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C442 281-0775-01
CAP,FXD,CER 0I:0.1 UF,20%,50V 04222
SA105E104MAA
A10C452 290-0768-00
CAP,FXD,ELCTLT:10UF,20%,100V
80009 290076800
A10C453 290-0768-00
CAP,FXD,ELCTLT:10UF,20%,100V 80009
290076800
A10C454 281-0904-00 CAP,FXD,CER Dl:12PF,5%, 1 OOV
04222 SA102A120JAA
A10C500
290-0183-00
CAP,FXD,ELCTLT:1 UF, 10%,35V 24165
1730105X9035V
A10C501 281-0909-00 CAP,FXD,CER Dl:0.022UF,20%,50V
04222 SA 105C223MAA
A10C502 281-0909-00
CAP,FXD,CER Dl:0.022UF,20%,50V
04222
SA 105C223MAA
A10C503 281-0909-00
CAP,FXD,CER Dl:0.022UF,20%,50V
04222 SA 105C223MAA
A10C504 290-0264-00 CAP,FXD,ELCTLT:0.22UF, 10%,35V
24165 1730224X9035U
A10C505 281-0909-00 CAP,FXD,CER Dl:0.022UF,20%,50V
04222 SA 105C223MAA
A10C506 290-0183-00 CAP,FXD,ELCTLT:1 UF, 10%,35V
12954
AT513A 105K035N
A10C507 281-0823-00 CAP,FXD,CER Dl:470PF, 10%,50V
04222 SA101A471KAA
A10C508 281-0761-00
CAP,FXD,CER Dl:27PF,5%,100V
04222
SA 102A270JAA
A10C509 281-0814-00
CAP,FXD,CER D:IOOPF,10%,100V
04222
SA 101A 101 KAA
A10C550 281-0925-01 CAP,FXO,:CERAMIC,MLC;0.22UF,20%,50V,
Z5U.0.170 X 0.120
04222 SA 115E224MAA
A10C551 281-0925-01
CAP,FXD,:CERAMIC,MLC;0.22UF,20%,50V,
Z5U.0.170 X 0.120
04222
SA 115E224MAA
A10C552 281-0909-00
CAP,FXD,CER Dl:0.022UF,20%,50V
04222
SA 105C223MAA
A10C553 281-0909-00
CAP,FXD,CER Dl:0.022UF,20%,50V
04222
SA 105C223MAA
A10C554
285-1408-00 CAP,FXD,MTLZD:10UF,1%,250V,AXIAL,TUB,MI TKOEO
ORDER BY DESC
A10C555
285-1409-00 CAP,FXD,MTLZD:1 UF, 1 %, 160V,AXIAL,TUB,MI
TKOED ORDER BY OESC
A10C556 281-0761-00 CAP,FXD,CER Dl:27PF,5%, 100V 04222
SA 102A270JAA
A10C557
281-0777-00 CAP,FXD,CER Dl:51PF,5%,100V
04222 SA102A510JAA
A10C558
281-0775-01
CAP,FXD,CER 0I:0.1 UF,20%,50V
04222
SA105E104MAA
A10C559
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C562 290-0187-00
CAP,FXD,ELCTLT:4.7UF,20%,35V
12954 ST5138475M035N
A10C563
281-0814-00
CAP,FXD,CER 01:100 PF,10%,100V
TK1743 CGB101KEN
A10C564 281-0775-01
CAP,FXD,CER 01:0.1 UF,20%,SOV 04222
SA105E104MAA
A10C602 281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C603
281-0775-01
CAP,FXD,CER Dl:0.1UF,20%,50V
04222 SA105E104MAA
A10C604
281-0775-01 CAP,FXD,CER Dl:0.1 UF,20%,SOV 04222
SA105E104MAA
A10C605
281-0775-01 CAP,FXD,CER Dl:0.1UF,20%,50V
04222
SA105E104MAA
A10C606 281-0775-01
CAP,FXD,CER 0I:0. 1 UF,20%,SOV
04222 SA105E104MAA
8 -10
Replaceable Electrical Parts
