Tektronix 2212 Service Manual

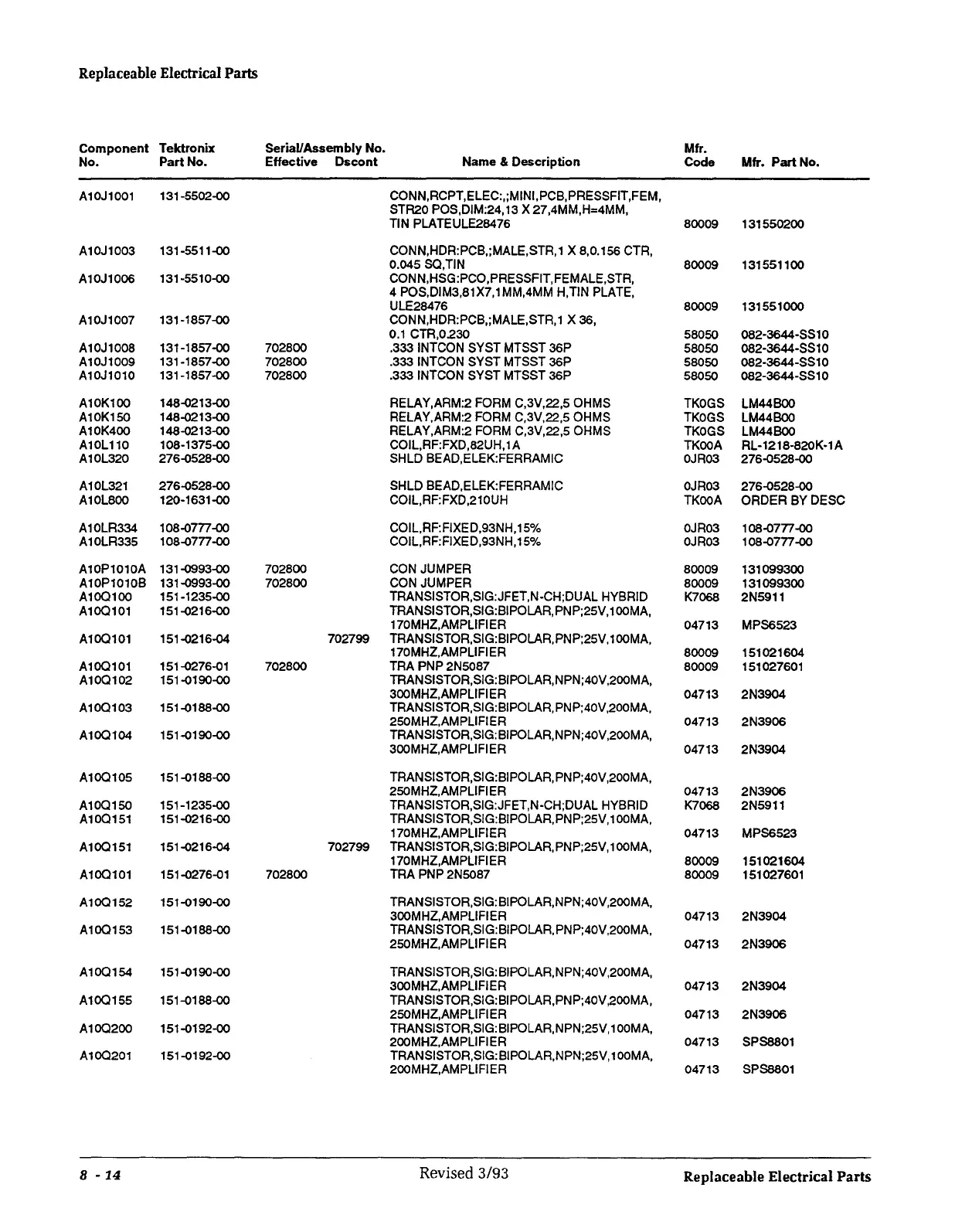

Replaceable Electrical Parts
Component
Tektronix SeriaUAssembly No.
Mfr.
No. Part No.
Effective
Dscont Name & Description
Code Mfr. Part No.
A10J1001
131-5502-00 CONN,RCPT,ELEC:,;MINl,PCB,PRESSFIT,FEM,
STR20 POS,DIM:24, 13 X 27,4MM,H=4MM,
TIN PLATEULE28476
80009 131550200
A10J1003 131-5511-00 CONN,HDR:PCB,;MALE,STR, 1 X 8,0.156 CTR,
0.045 SQ,TIN
80009
131551100
A10J1006 131-5510-00 CONN,HSG:PCO,PRESSFIT,FEMALE,STR,
4 POS,DIM3,81X7,1MM,4MM H,TIN PLATE,
ULE28476
80009 131551000
A10J1007 131-1857-00 CONN,HDR:PCB,;MALE,STR,1 X 36,
0.1 CTR,0.230
58050 082-3644-SS 1 0
A10J1008
131-1857-00 702800
.333 INTCON SYST MTSST 36P
58050 082-3644-SS 1 o
A10J1009 131-1857-00 702800 .333 INTCON SYST MTSST 36P
58050 082-3644-SS10
A10J1010 131-1857-00
702800 .333 INTCON SYST MTSST 36P
58050 082-3644-SS10
A10K100 148-0213-00
RELA Y,ARM:2 FORM C,3V,22,5 OHMS TK0GS
LM44800
A10K150 148-0213-00 RELAY,ARM:2 FORM C,3V,22,5 OHMS
TK0GS
LM44800
A10K400 148-0213-00 RELAY,ARM:2 FORM C,3V,22,5 OHMS
TK0GS LM44800
A10L110 108-1375-00 COIL,RF:FXD,82UH, 1A
TKOOA RL-1218-820K-1A
A10L320 276-0528-00 SHLD BEAD,ELEK:FERRAMIC
0JR03 276-0528-00
A10L321 276-0528-00 SHLD BEAD,ELEK:FERRAMIC
0JR03 276-0528-00
A10L800 120-1631-00 COIL,RF:FXD,210UH
TKOOA ORDER BY DESC
A10LR334 108-01n-00 COIL,RF:FIXED,93NH, 15% 0JR03
1os-01n-00
A10LR335 108-07n-00 COIL,RF:FIXED,93NH, 15%
0JR03 1os-01n-00
A10P1010A
131-0993-00 702800 CON JUMPER
80009
131099300
A10P1010B 131-0993-00 702800 CON JUMPER
80009 131099300
A100100 151-1235-00 TRANSISTOR,SIG:JFET,N-CH;DUAL HYBRID
K7068 2N5911
A100101
151-0216-00 TRANSISTOR,SIG:BIPOLAR, PNP;25V, 1 OOMA,
170MHZ,AMPLIFIER
04713 MPS6523
A100101 151-0216-04
702799 TRANSISTOR,SIG:BIPOLAR,PNP;25V, 100MA,
170MHZ,AMPLIFI ER
80009 151021604
A100101
151-0276-01 702800 TRA PNP 2N5087
80009 151027601
A10Q102 151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER
04713 2N3904
A100103 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER
04713 2N3906
A100104
151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFI ER 04713
2N3904
A100105 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFI ER 04713
2N3906
A100150 151-1235-00 TRANSISTOR,SIG:JFET,N-CH;DUAL HYBRID K7068 2N5911
A10O151 151-0216-00 TRANSISTOR,SIG:BIPOLAR,PNP;25V, 1 00MA,
170MHZ,AMPLIFIER 04713 MPS6523
A100151 151-0216-04
702799 TRANSISTOR,SIG:BIPOLAR, PNP;25V, 1 OOMA,
170MHZ,AMPLIFIER
80009 151021604
A100101 151-0276-01 702800
TRA PNP 2N5087
80009 151027601
A100152
151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A100153 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713 2N3906
A100154 151-0190-00 TRANSISTOR.SIG: BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A100155 151-0188-00 TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713 2N3906
A100200 151-0192-00
TRANSISTOR,SIG: BIPOLAR,NPN;25V, 1 00MA,
200MHZ,AMPLIFIER
04713
SPS8801
A100201
151-0192-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V, 1 00MA,
200MHZ,AMPLIFIER 04713 SPS8801
8 -14
Revised 3/93
