Tektronix 2212 Service Manual

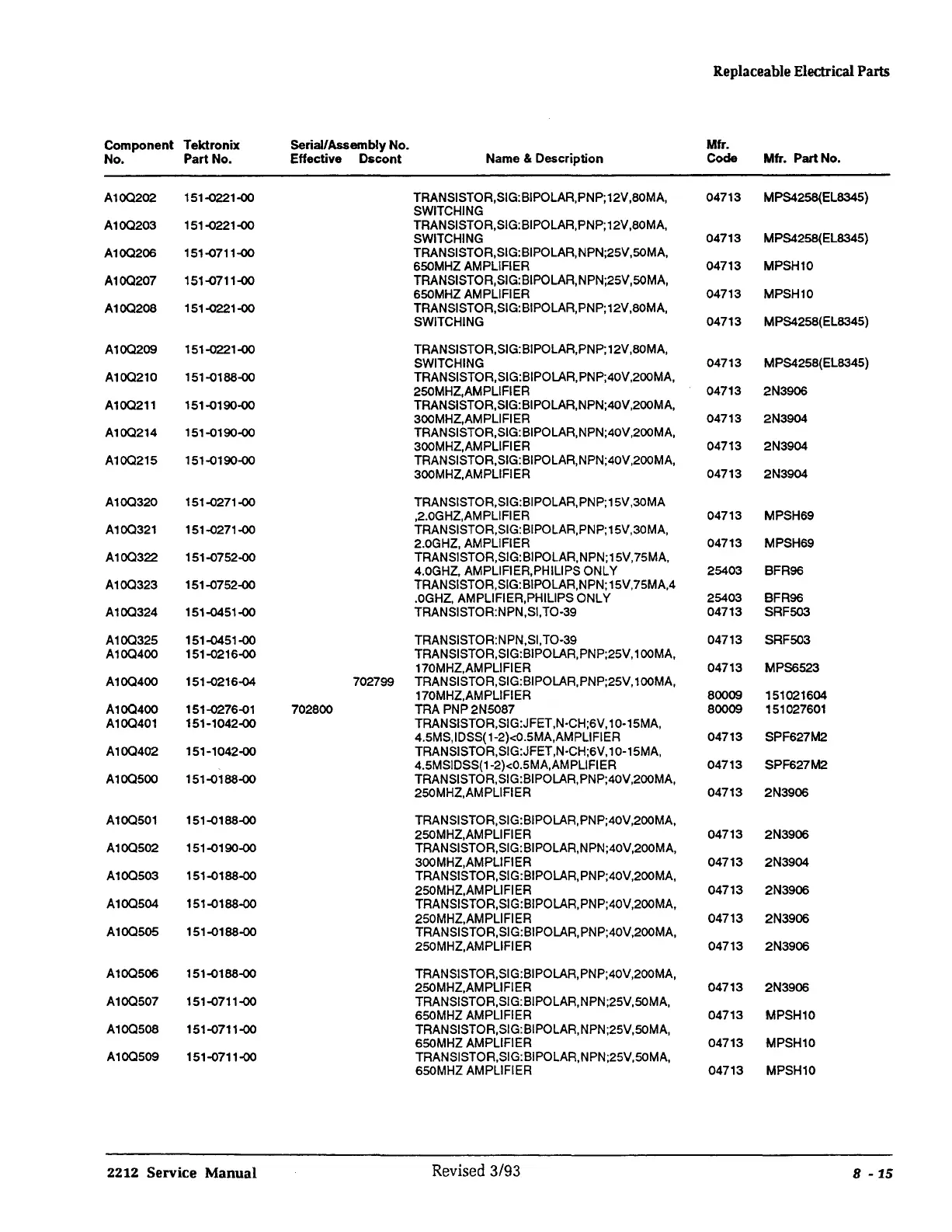

Replaceable Electrical Parts
Component Tektronix
Serial/Assembly No.
Mfr.
No.
Part No.
Effective Dscont
Name & Description Code Mfr. Part No.
A100202 151-0221-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA, 04713 MPS4258{EL8345)
SWITCHING
A100203
151-0221-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA,
SWITCHING
04713 MPS4258(EL8345)
A100206
151-0711-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHZ AMPLIFIER
04713 MPSH10
A100207 151-0711-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHZ AMPLIFIER
04713 MPSH10
A100208 151-0221-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA,
SWITCHING
04713 MPS4258(EL8345)
A100209 151-0221-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA,
SWITCHING
04713 MPS4258(EL8345)
A100210
151-0188-00 TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER
04713
2N3906
A100211 151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER
04713
2N3904
A100214
151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFI ER
04713
2N3904
A100215 151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER
04713 2N3904
A100320 151-0271-00
TRANSISTOR,SIG:BIPOLAR,PNP;15V,30MA
,2.0GHZ,AMPLIFIER
04713
MPSH69
A100321 151-0271-00
TRANSISTOR,SIG:BIPOLAR,PNP;15V,30MA,
2.0GHZ, AMPLIFIER
04713
MPSH69
A100322 151-0752-00
TRANSISTOR,SIG:BIPOLAR,NPN;15V,75MA,
4.0GHZ, AMPLIFIER.PHILIPS ONLY
25403
BFR96
A100323
151-0752-00 TRANSISTOR,SIG:BIPOLAR,NPN; 15V,75MA,4
.0GHZ, AMPLIFIER,PHILIPS ONLY
25403
BFR96
A100324
151-0451-00 TRANSISTOR:NPN,Sl,TO-39
04713
SRF503
A100325
151-0451-00 TRANSISTOR:NPN,Sl,T0-39
04713 SRF503
A100400 151-0216-00 TRANSISTOR,SIG:BIPOLAR,PNP;25V, 1 OOMA,
170MHZ,AMPLIFIER
04713
MPS6523
A100400 151-0216-04 702799
TRANSISTOR,SIG:BIPOLAR,PNP;25V, 100MA,
170MHZ,AMPLIFIER
80009
151021604
A100400
151-0276-01
702800 TRA PNP2N5087
80009 151027601
A100401
151-1042-00
TRANSISTOR,SIG:JFET,N•CH;6V, 10·15MA,
4.SMS, IDSS( 1-2)<0.5MA,AMPLIFI ER
04713
SPF627M2
A100402
151-1042-00
TRANSISTOR,SIG:JFET,N·CH;6V, 10-1 SMA,
4.5MSIDSS(1-2)<0.5MA,AMPLIFIER
04713 SPF627M2
A100500 151-0188-00 TRANSISTOR.SI G:BIPOLAR, PNP;40V,200MA,
250MHZ,AMPLIFIER
04713
2N3906
A10Q501 151-0188-00 TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER
04713
2N3906
A100502 151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A100503
151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713 2N3906
A100504 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFI ER
04713
2N3906
A100505 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713
2N3906
A100506
151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713 2N3906
A100507
151-0711-00 TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHz AMPLIFIER
04713
MPSH10
A10Q508
151-0711-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHz AMPLIFIER 04713 MPSH10
A100509 151-0711-00 TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHZ AMPLIFIER 04713 MPSH10
2212 Service Manual
Revised 3/93
8 -15
