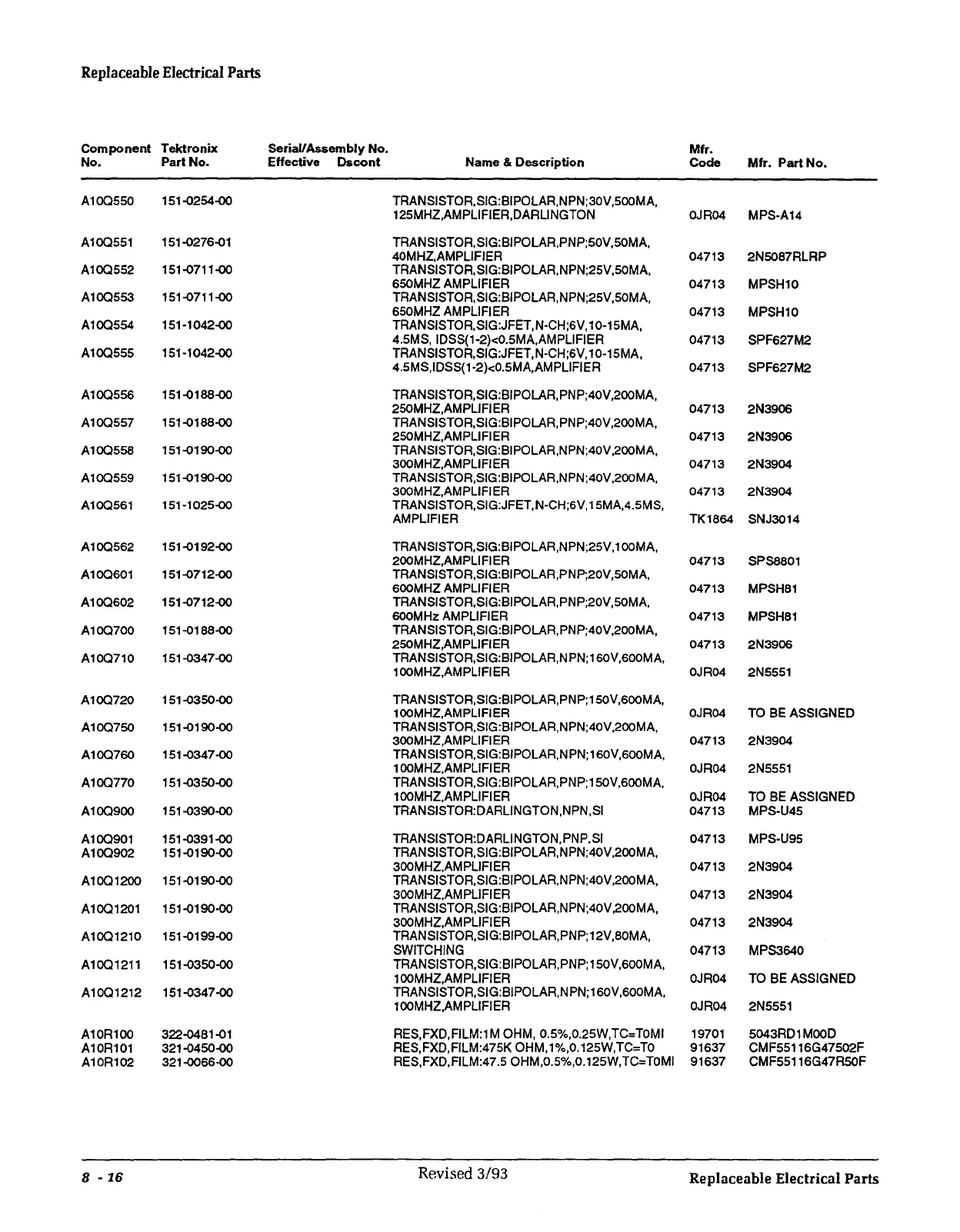

Replaceable Electrical Parts
Component Tektronix Serial/Assembly No.
Mfr.
No.
Part No. Effective
Dscont Name & Description
Code
Mfr. Part No.
A100550
151-0254-00
TRANSISTOR,SIG:BIPOLAR,NPN;30V,500MA,
125MHZ,AMPLIFIER,DAALINGTON
0JA04
MPS-A14
A100551
151-0276-01
TRANSISTOR,SIG:BIPOLAR,PNP;50V,50MA,
40MHZ,AMPLIFIER 04713
2N5087RLRP
A100552
151-0711-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHZ AMPLIFIER
04713
MPSH10
A100553 151-0711-00
TRANSISTOR,SIG:BIPOLAR,NPN;25V,50MA,
650MHz AMPLIFIER 04713
MPSH10
A100554 151-1042-00
TRANSISTOR,SIG:JFET, N-CH;6V, 10· 15MA,
4.5MS, IDSS(1-2)<0.5MA,AMPLIFIER
04713
SPF627M2
A100555 151-1042-00
TRANSISTOR,SIG:JFET, N-CH;6V, 10-15MA,
4.5MS,IDSS(1-2)<0.5MA,AMPLIFIER
04713 SPF627M2
A100556 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER
04713 2N3906
A100557 151-0188-00
TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFI ER 04713
2N3906
A100558 151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V ,200MA,
300MHZ,AMPLIFIER
04713 2N3904
A100559
151-0190-00 TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A100561
151-1025-00 TRANSISTOR,SIG:JFET,N-CH;6V, 15MA,4.5MS,
AMPLIFIER TK1864
SNJ3014
A100562 151-0192-00 TRANSISTOR,SIG:BIPOLAR,NPN;25V,100MA,
200MHZ,AMPLIFIER
04713 SPS8801
A100601 151-0712-00 TRANSISTOR,SIG:BIPOLAR,PNP;20V,50MA.
600MHZ AMPLIFIER 04713
MPSH81
A100602
151-0712-00 TRANSISTOR,SIG:BIPOLAR,PNP;20V,50MA,
600MHz AMPLIFIER 04713
MPSH81
A100700 151-0188-00 TRANSISTOR,SIG:BIPOLAR,PNP;40V,200MA,
250MHZ,AMPLIFIER 04713 2N3906
A10O710
151-0347-00 TRANSISTOR,SIG:BIPOLAR,NPN;160V,600MA,
1 OOMHZ,AMPLIFIER 0JR04 2N5551
A100720
151-0350-00
TRANSISTOR,SIG:BIPOLAR,PNP;150V,600MA,
100MHZ,AMPLIFIER 0JR04
TO BE ASSIGNED
A100750
151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A100760
151-0347-00 TRANSISTOR,SIG:BIPOLAR,NPN;160V,600MA,
1 OOMHZ,AMPLIFIER
0JR04
2N5551
A100770
151-0350-00 TRANSISTOR,SIG:BIPOLAR,PNP; 150V,600MA.
100MHZ,AMPLIFIER
0JR04 TO BE ASSIGNED
A100900 151-0390-00
TRANSISTOR:DARLINGTON ,NPN ,SI
04713 MPS-U45
A100901 151-0391-00
TRANSISTOR:DARLINGTON,PNP,SI 04713 MPS-U95
A100902
151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A1001200
151-0190-00
TRANSISTOR,SJG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A1001201
151-0190-00
TRANSISTOR,SIG:BIPOLAR,NPN;40V,200MA,
300MHZ,AMPLIFIER 04713 2N3904
A1001210
151-0199-00
TRANSISTOR,SIG:BIPOLAR,PNP;12V,80MA,
SWITCHING 04713
MPS3640
A1001211 151-0350-00
TRANSISTOR,SIG:BIPOLAR,PNP; 150V,600MA,
1 OOMHZ,AMPLIFIER 0JR04 TO BE ASSIGNED
A10O1212
151-0347-00
TRANSISTOR,SIG:BIPOLAR,NPN;160V,600MA,
1 OOMHZ,AMPLIFI ER 0JR04 2N5551
A10R100 322-0481-01
RES,FXD,FILM:1 M OHM, 0.5%,0.25W,TC= TOMI 19701 5043RD1MOOD
A10A101 321-0450-00
RES,FXD,FILM:475K OHM, 1%,0.125W,TC= TO 91637 CMF55116G47502F
A10R102 321-0066-00
RES,FXD,FILM:47.5 OHM,0.5%,0.125W,TC= TOMI 91637 CMF55116G47R50F
8 - 16
Revised 3/93
Replaceable Electrical Parts
