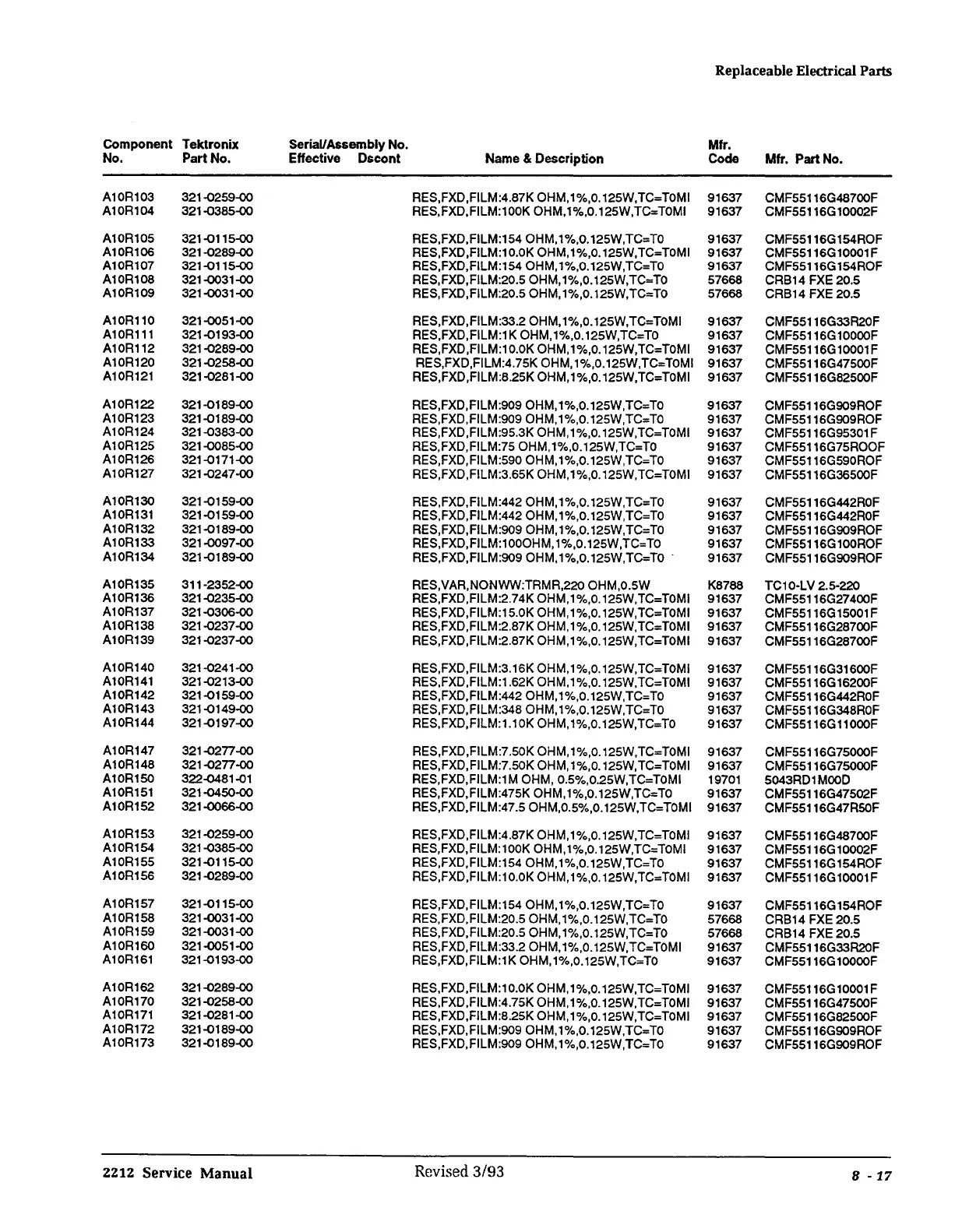

Tektronix 2212 Service Manual

Replaceable Electrical Parts
Component Tektronix Serial/Assembly No.
Mfr.
No. Part No. Effective Dscont
Name & Description Code
Mfr. Part No.
A10R103
321-0259-00
RES,FXD,FILM:4.87K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G48700F
A10R104
321-0385-00
RES,FXD,FILM:100K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G10002F
A10R105
321-0115-00
RES,FXD,FILM:154 OHM, 1%,0.125W,TC= TO 91637
CMF55116G154ROF
A10R106
321-0289-00
RES,FXD,FILM:10.0K OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G10001F
A10R107 321-0115-00
RES,FXD,FILM:154 OHM, 1%,0.125W,TC= TO 91637
CMF55116G154ROF
A10R108
321-0031-00
RES,FXD,FILM:20.5 OHM, 1%,0.125W,TC= TO 57668
CRB14 FXE 20.5
A10R109
321-0031-00
RES,FXD,FILM:20.5 OHM, 1%,0.125W,TC= TO 57668
CRB14 FXE 20.5
A10R110 321-0051-00
RES,FXD,FILM:33.2 OHM, 1%,0.125W,TC= TOMI
91637 CMF55116G33R20F
A10R111 321-0193-00
RES,FXD,FILM:1 KOHM, 1%,0.125W,TC= TO 91637
CMF55116G10000F
A10R112 321-0289-00
RES,FXD,FILM:10.0K OHM,1%,0.125W,TC= TOMI 91637
CMF55116G10001F
A10R120
321-0258-00
RES,FXD,FILM:4.75K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G47500F
A10R121
321-0281-00
RES,FXD,FILM:8.25K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G82500F
A10R122
321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO 91637
CMF55116G909ROF
A10R123 321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO 91637
CMF55116G909ROF
A10R124
321-0383-00
RES,FXD,FILM:95.3K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G95301 F
A10R125
321-0085-00
RES,FXD,FILM:75 OHM,1%,0.125W,TC=T0
91637
CMF55116G75ROOF
A10R126 321-0171-00
RES,FXD,FILM:590 OHM, 1%,0.125W,TC= TO
91637 CMF55116G590ROF
A10R127
321-0247-00
RES,FXD,FILM:3.65K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G36500F
A10R130 321-0159-00
RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO 91637
CMF55116G442R0F
A10R131 321-0159-00
RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO
91637
CMF55116G442ROF
A10R132
321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO 91637
CMF55116G909ROF
A10R133
321-0097-00
RES,FXD,FILM:100OHM, 1%,0.125W,TC= TO 91637
CMF55116G100ROF
A10R134
321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO · 91637
CMF55116G909ROF
A10R135
311 ·2352-00
RES,VAR,NONWW:TRMR,220 OHM,0.5W
K8788 TC10·LV 2.5-220
A10R136 321-0235-00
RES,FXD,FILM:2.74K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G27400F
A10R137
321-0306-00
RES,FXD,FILM:15.0K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G15001F
A10R138
321-0237-00
RES,FXD,FILM:2.87K OHM, 1 %,0.125W,TC= TOMI
91637
CMF55116G28700F
A10R139
321-0237-00
RES,FXD,FILM:2.87K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G28700F
A10R140
321-0241-00
RES,FXD,FILM:3.16K OHM, 1%,0.125W,TC= TOMI
91637 CMF55116G31600F
A10R141 321-0213-00
RES,FXD,FILM:1.62K OHM, 1%,0.125W,TC= TOMI
91637
CMF55116G16200F
A10R142 321-0159-00
RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO
91637
CMF55116G442ROF
A10R143
321-0149-00
RES,FXD,FILM:348 OHM, 1%,0.125W,TC= TO
91637
CMF55116G348R0F
A10R144 321-0197-00
RES,FXD,FILM: 1.1 OK OHM, 1%,0.125W,TC= TO
91637
CMF55116G11000F
A10R147
321-02n-00
RES,FXD,FILM:7.50K OHM, 1 %,0.125W,TC= TOMI
91637
CMF55116G75000F
A10R148
321-02n-00
RES,FXD,FILM:7.50K OHM, 1%,0.125W,TC= TOMI
91637 CMF55116G75000F
A10R150
322-0481-01
RES,FXD,FILM:1M OHM, 0.5%,0.25W,TC=T0MI 19701
5043RD1 MOOD
A10R151 321-0450-00
RES,FXD,FILM:475K OHM, 1%,0.125W,TC= TO 91637
CMF55116G47502F
A10R152 321-0066-00
RES,FXD,FILM:47.5 OHM,0.5%,0.125W,TC= TOMI 91637
CMF55116G47RSOF
A10R153 321-0259-00
RES,FXD,FILM:4.87K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G48700F
A10R154 321-0385-00
RES,FXD,FILM: 100K OHM, 1%,0.125W,TC= TOMI
91637
CMF55116G10002F
A10R155 321-0115-00
RES,FXD,FILM:154 OHM,1%,0.125W,TC=T0
91637
CMF55116G154ROF
A10R156 321-0289-00
RES,FXD,FILM:10.0K OHM, 1%,0.125W,TC= TOMI
91637
CMF55116G10001 F
A10R157 321-0115-00
RES,FXD,FILM:154 OHM, 1%,0.125W,TC= TO
91637
CMF55116G154ROF
A10R158 321-0031-00
RES,FXD,FILM:20.5 OHM,1%,0.125W,TC= TO
57668
CRB14 FXE 20.5
A10R159
321-0031-00
RES,FXD,FILM:20.5 OHM, 1%,0.125W,TC= TO
57668
CRB14 FXE 20.5
A10R160
321-0051-00
RES,FXD,FILM:33.2 OHM, 1%,0.125W,TC= TOMI
91637
CMF55116G33R20F
A10R161
321-0193-00
RES,FXD,FILM:1K OHM, 1%,0.125W,TC= TO
91637
CMF55116G10000F
A10R162
321-0289-00
RES,FXD,FILM:1 O.0K OHM, 1 %,0.125W,TC= TOMI
91637
CMF55116G10001 F
A10R170 321-0258-00
RES,FXD,FILM:4.75K OHM, 1 %,0.125W,TC= TOMI
91637
CMF55116G47500F
A10R171
321-0281-00
RES,FXD,FILM:8.25K OHM, 1 %,0.125W,TC= TOMI
91637 CMF55116G82500F
A10R172 321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO
91637
CMF55116G909ROF
A10R173
321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO
91637
CMF55116G909ROF
2212 Service Manual
Revised 3/93
8 -17
