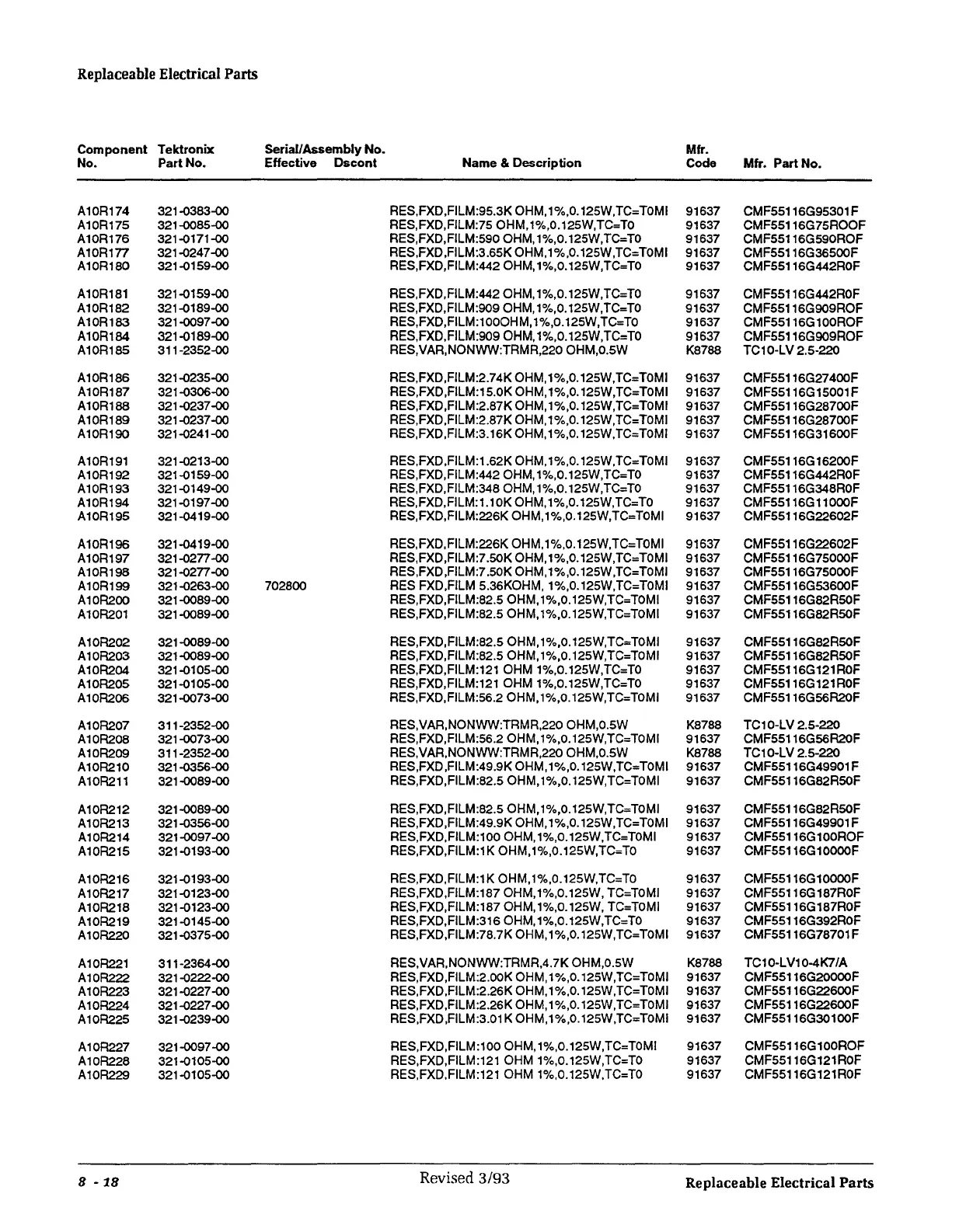

Tektronix 2212 Service Manual

Replaceable Electrical Parts
Component
Tektronix SeriaUAssembly No.
Mfr.
No. Part No.
Effective Dscont Name & Description
Code
Mfr. Part No.
A10R174 321-0383-00 RES,FXD,FILM:95.3K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G95301 F
A10R175
321-0085-00 RES,FXD,FILM:75 OHM, 1%,0.125W,TC= TO 91637
CMF55116G75ROOF
A10R176 321-0171-00
RES,FXD,FILM:590 OHM, 1%,0.125W,TC= TO
91637 CMF55116G590ROF
A10R177 321-0247-00
RES,FXD,FILM:3.65K OHM,1%,0.125W,TC= TOMI
91637 CMF55116G36500F
A10R180
321-0159-00 RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO
91637 CMF55116G442R0F
A10R181 321-0159-00 RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO 91637
CMF55116G442R0F
A10R182
321-0189-00 RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO
91637 CMF55116G909ROF
A10R183 321-0097-00 RES,FXD,FILM:100OHM, 1%,0.125W,TC= TO 91637
CMF55116G 100ROF
A10R184 321-0189-00
RES,FXD,FILM:909 OHM, 1%,0.125W,TC= TO
91637 CMF55116G909ROF
A10R185
311-2352-00 RES,VAR,NONWW:TRMR,220 OHM,0.5W K8788
TC10·LV 2.5-220
A10R186
321-0235-00 RES,FXD,FILM:2.74K OHM, 1%,0.125W,TC= TOMI
91637 CMF55116G27400F
A10R187 321-0306-00 RES,FXD,FILM:15.0K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G15001F
A10R188 321-0237-00 RES,FXD,FILM:2.87K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G28700F
A10R189 321-0237-00
RES,FXD,FILM:2.87K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G28700F
A10R190 321-0241-00 RES,FXD,FILM:3.16K OHM, 1%,0.125W.TC= TOMI 91637 CMF55116G31600F
A10R191 321-0213-00
RES,FXD,FILM:1.62K OHM, 1 %,0.125W,TC= TOMI 91637
CMF55116G16200F
A10R192 321-0159-00
RES,FXD,FILM:442 OHM, 1%,0.125W,TC= TO 91637 CMF55116G442R0F
A10R193 321-0149-00
RES,FXD,FILM:348 OHM, 1%,0.125W,TC= TO 91637
CMF55116G348R0F
A10R194
321-0197-00 RES,FXD,FILM:1.10K OHM, 1%,0.125W,TC= TO 91637 CMF55116G 11 OOOF
A10R195 321-0419-00
RES,FXD,FILM:226K OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G22602F
A10R196 321-0419-00
RES,FXD,FILM:226K OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G22602F
A10R197 321-0277-00
RES,FXD,FILM:7.SOK OHM, 1 %,0.125W,TC= TOMI 91637 CMF55116G75000F
A10R198 321-0277-00
RES,FXD,FILM:7.50K OHM,1%,0.125W,TC= TOMI 91637 CMF55116G75000F
A10R199 321-0263-00
702800
RES FXD,FILM 5.36KOHM, 1%,0.125W,TC= TOMI 91637
CMF55116G53600F
A10R200
321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G82R50F
A10R201 321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G82R50F
A10R202 321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G82R50F
A10R203 321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637
CMF55116G82R50F
A10R204 321-0105-00
RES,FXD,FILM:121 OHM 1%,0.125W,TC= TO 91637 CMF55116G121R0F
A10R205 321-0105-00
RES,FXD,FILM:121 OHM 1%,0.125W,TC=T0 91637 CMF55116G121R0F
A10R206
321-0073-00
RES,FXD,FILM:56.2 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G56R20F
A10R207 311-2352-00
RES,VAR,NONWW:TRMR,220 OHM,0.5W K8788 TC10-LV 2.5-220
A10R208 321-0073-00
RES,FXD,FILM:56.2 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G56R20F
A10R209 311-2352-00
RES,VAR,NONWW:TRMR,220 OHM,0.5W K8788 TC10-LV 2.5-220
A10R210 321-0356-00
RES,FXD,FILM:49.9K OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G49901 F
A10R211 321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G82R50F
A10R212
321-0089-00
RES,FXD,FILM:82.5 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G82R50F
A10R213 321-0356-00
RES,FXD,FILM:49.9K OHM, 1 %,0.125W,TC= TOMI
91637 CMF55116G49901 F
A10R214
321-0097-00
RES,FXD,FILM:100 OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G100ROF
A10R215 321-0193-00
RES,FXD,FILM:1 KOHM, 1%,0.125W,TC= TO 91637
CMF55116G10000F
A10R216
321-0193-00
RES,FXD,FILM:1K OHM, 1%,0.125W,TC= TO 91637 CMF55116G10000F
A10R217
321-0123-00
RES,FXD,FILM:187 OHM, 1%,0.125W, TC= TOMI 91637 CMF55116G187R0F
A10R218 321-0123-00
RES,FXD,FILM:187 OHM, 1%,0.125W, TC= TOMI 91637 CMF55116G187R0F
A10R219
321-0145-00
RES,FXD,FILM:316 OHM, 1%,0.125W,TC= TO
91637 CMF55116G392R0F
A10R220 321-0375-00
RES,FXD,FILM:78.7K OHM, 1 %,0.125W,TC= TOMI 91637 CMF55116G78701 F
A10R221 311-2364-00
RES, VAR, NONWW:TRMR,4. 7K OHM,0.5W K8788 TC10-LV10-4K7/A
A10R222
321-0222-00
RES,FXD,FILM:2.00K OHM, 1 %,0.125W,TC= TOMI
91637 CMF55116G20000F
A10R223 321-0227-00
RES,FXD,FILM:2.26K OHM, 1%,0.125W,TC= TOMI 91637 CMF55116G22600F
A10R224 321-0227-00
RES,FXD,FILM:2.26K OHM, 1 %,0.125W,TC= TOMI 91637 CMF55116G22600F
A10R225
321-0239-00
RES,FXD,FILM:3.01 K OHM,1%,0.125W,TC= TOMI
91637 CMF55116G30100F
A10R227 321-0097-00
RES,FXD,FILM:100 OHM, 1%,0.125W,TC= TOMI
91637 CMF55116G100ROF
A10R228 321-0105-00
RES,FXD,FILM:121 OHM 1%,0.125W,TC= TO 91637 CMF55116G121R0F
A10R229 321-0105-00
RES,FXD,FILM:121 OHM 1%,0.125W,TC=T0
91637 CMF55116G121ROF
8 - 18
Revised 3/93
