Mask testing setups Set the u ser mask controls
Overview

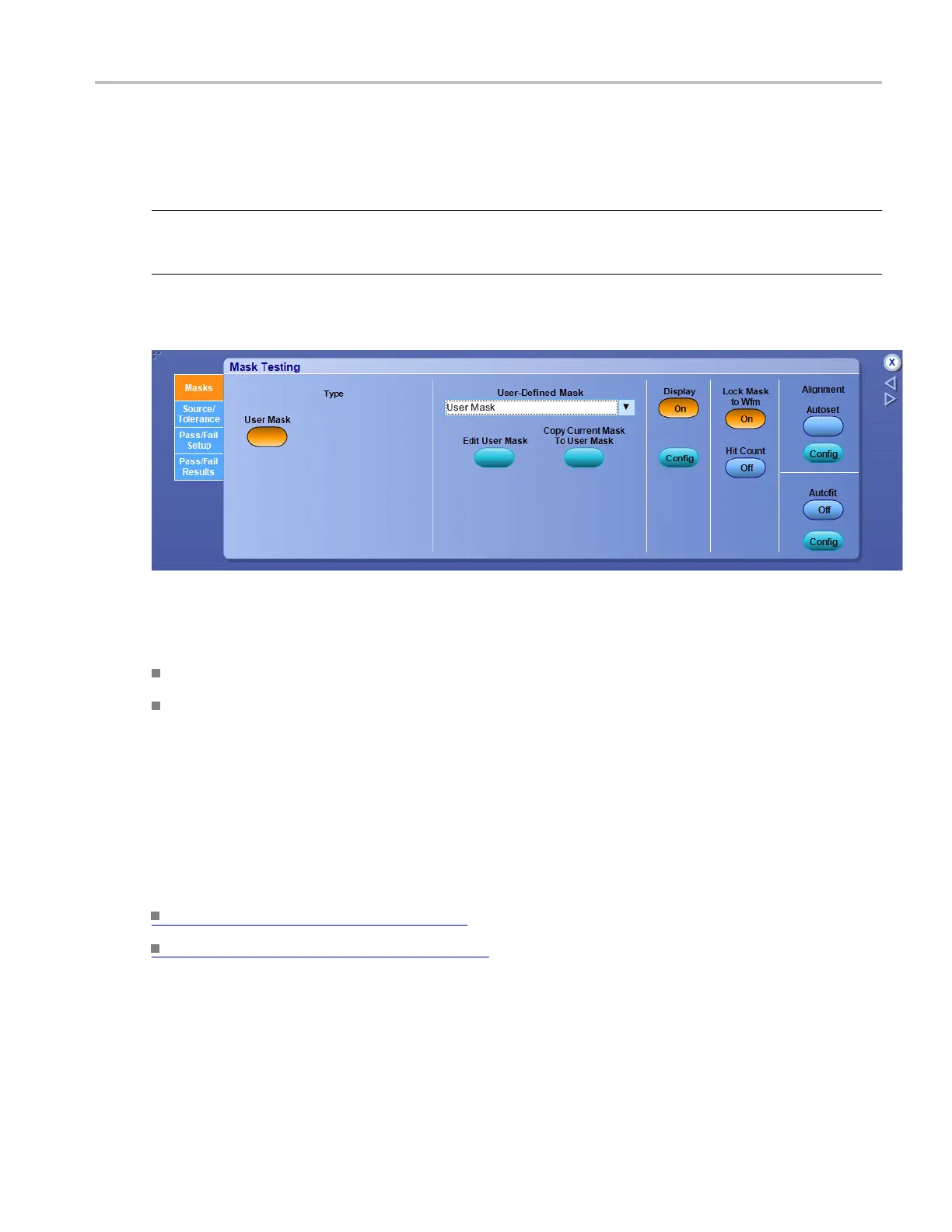

Use this control window to access the Edit User Mask control window or to copy a standard mask as a user
mask. You can also select the standard you want to copy or edit from the standard drop-down list.
NOTE. The Comm Trigger is designed to work with communications mask and standard testing. Mask
testing auto
matically uses Communication triggers. You must install the Serial Communications Mask
Testing Option on some instruments before you can access the Comm triggers.
For inform
ation on the controls, click the buttons.
To use
Click the Edit User Mask button to access the Mask Edit control window.
Click the Copy Current Mask button To User Mask to make the current mask a user mask.
Behavior
Clicking the User Mask button gives you access to the User Mask in the standard drop-down list. Clicking
the Edit User Mask control will replace this control window with the Mask Edit control window. Clicking
the Copy Current Mask to User Mask control will activate a dialog box where you can overwrite the
user mask.
What do you want to do next?
Learn about editing masks. (see page 218)
Learn more about mask types. (see page 209)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 233
