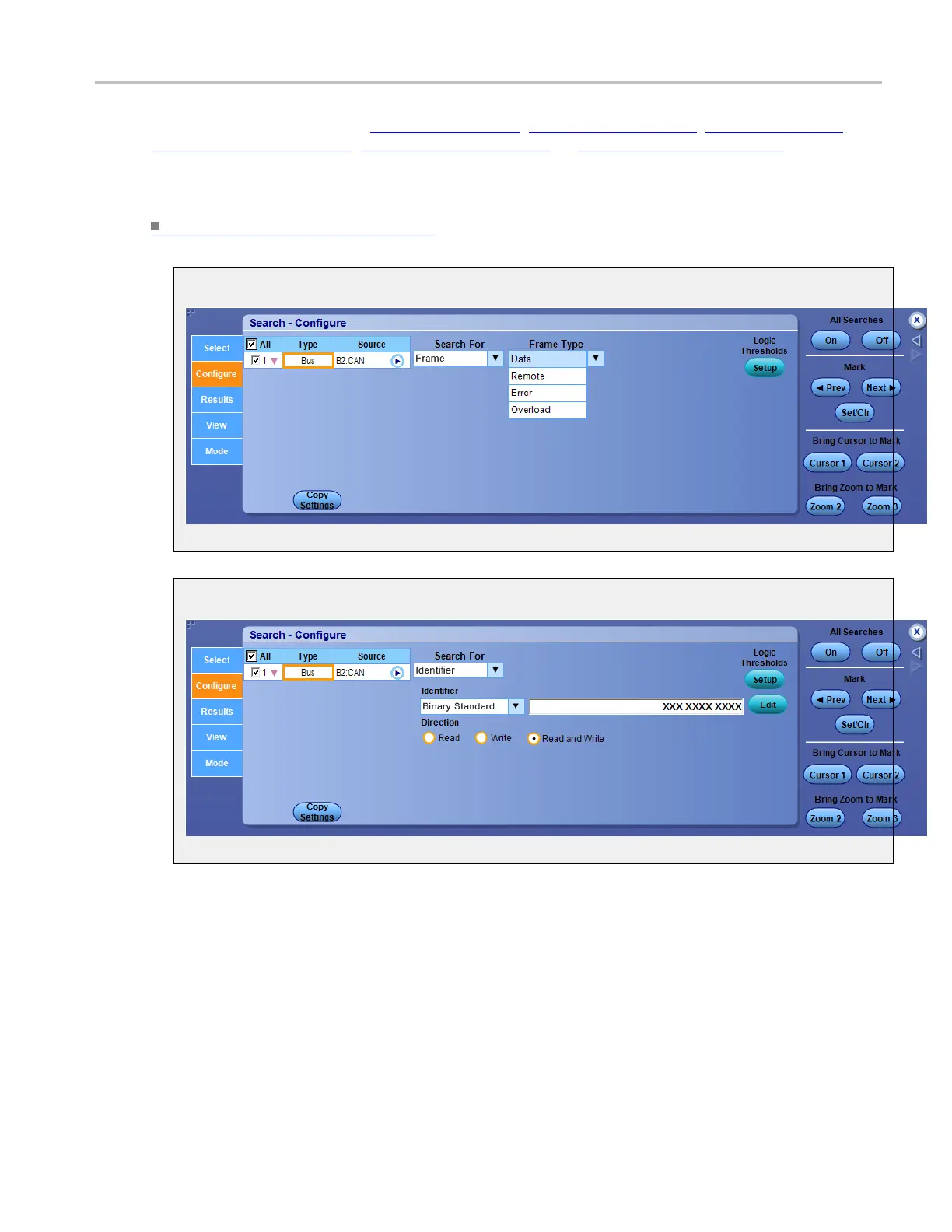

Analyzing waveforms Set up CAN search parameters

Click the Search For selections Frame (see page 347), Identiﬁer (see page 347), Data (see page 348),

End of Frame

(see page 348), Missing ack (see page 348),orBit Stuff Error (see page 349) ,toview

their parame t

ers.

What do you want to do next?

Learn about bus setups. (see page 95)

Search for f

rame

Search for identiﬁer

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 347
