Analyzing waveforms Set up MIL-1553 search parameters
Behavior
Clicking a
n entry in the Type column activates the individual search controls, similar to the one shown

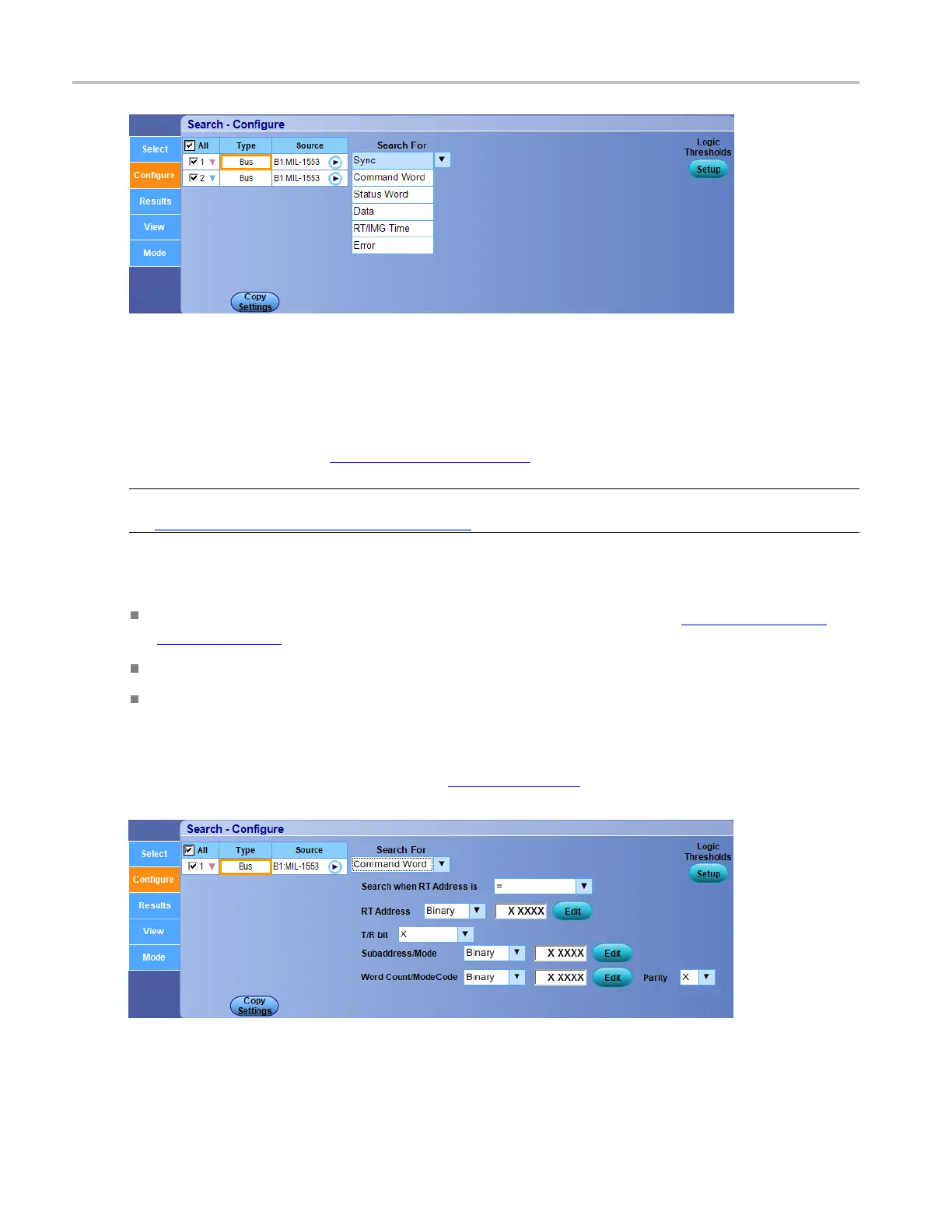

above. These controls vary depending on the search Type. Setting the search conditions is similar to
setting the parameters for an Event Trigger
(see page 386).
NOTE. No information will be displayed in this window until you specify at least one search Type in
the Search Select Control Window
(see page 300).
To use
Click the Source box and select the bus number or name from the window. Bus Search Selection
List (
see page
98)
Select the type of bus cycle or a ctivity to search for from the Search For drop-down list.
For some Search For selections, you must set additional fields to define other parameters such as
for Command Word.
In t
his example, you need to set an Search when RT Address is, Parity, T/R bit, RT Address, Subaddress
Mode, and Word Count/Mode Code (click the Edit
(see page 939) button). Optionally, you can also set the
component threshold levels through the Logic Thresholds Setup button.
