Analyzing waveforms Set up Ethernet search parameters

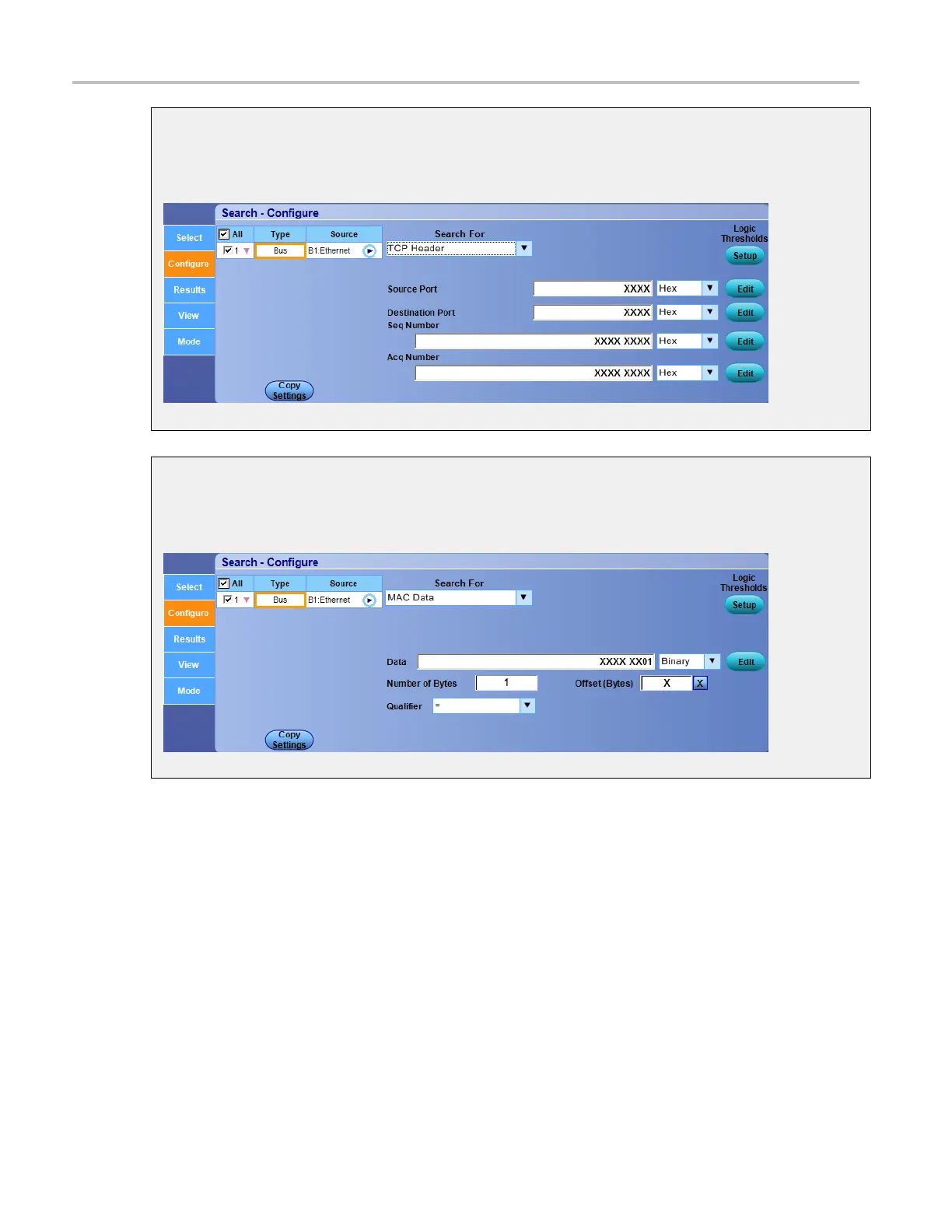

TCP header

ThedatatypeoptionsavailableinSearchForTCPHeader are Source Port, Destination Port, Seq

Number, and Ac

q Number.

MAC data

ThedatatypeoptionsavailableinSearchForMAC Data are Data, Number of Bytes, O ffset, and

Qualiﬁer.
