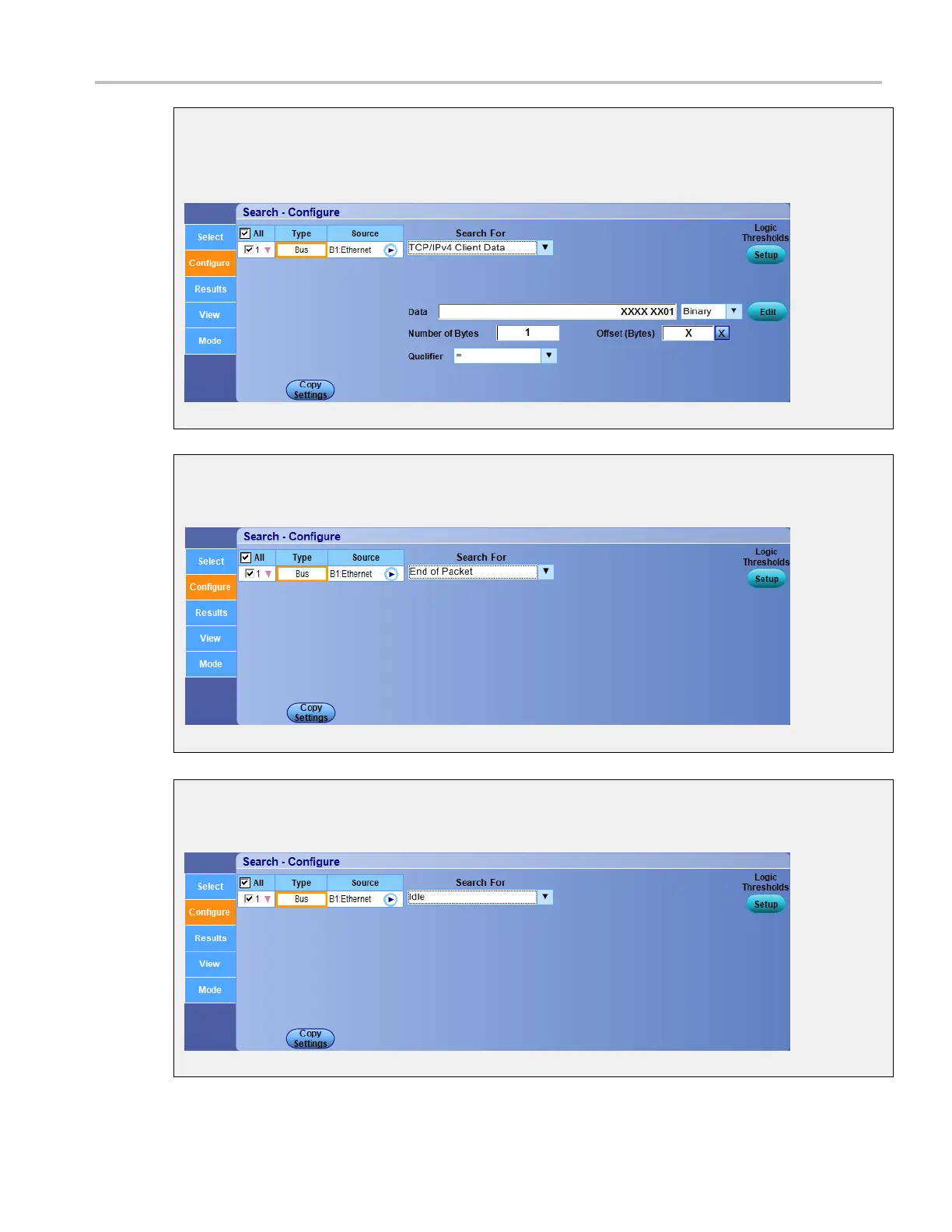

Analyzing waveforms Set up Ethernet s earch parameters

TCP/IPv4 client data

The data type options available in Search For TCP/IPv4 Client Data are Data, Number of Bytes,

Offset, and Qualiﬁer.

End of packet

Select End of Packet to search for the Ethernet End of Packet.

Idle

Select Idle to search for an Ethernet Idle character.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 365
