Trigger setups Set up an 8B10B bus trigger

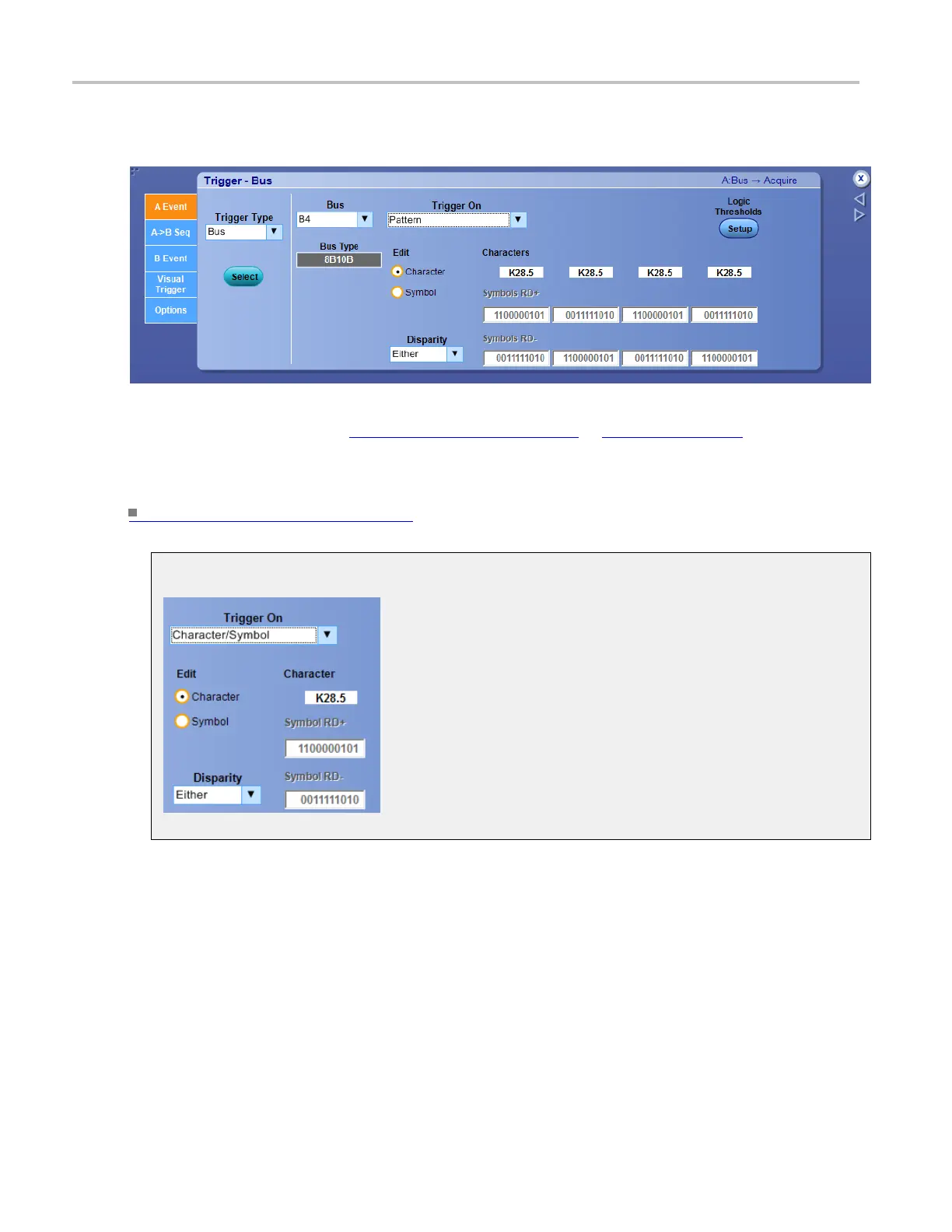

In this example, you need to set the Character or Symbol values and select the Disparity. You can also set
the component threshold levels through the Logic Thresholds Setup button.
Click the Trigger On selections Character/Symbol (see page 394) or Error (see page 395) to view their
parameters.
What do you want to do next?
Learn about bus setups. (see page 95)
Trigger on Character/Symbol
394 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
