Oscilloscope Reference Set up zoom AutoScroll
Set up zoom AutoScroll
From the Vertical or Horiz /Acq menu, select Zoom Controls; then open the Scroll tab.
Overview

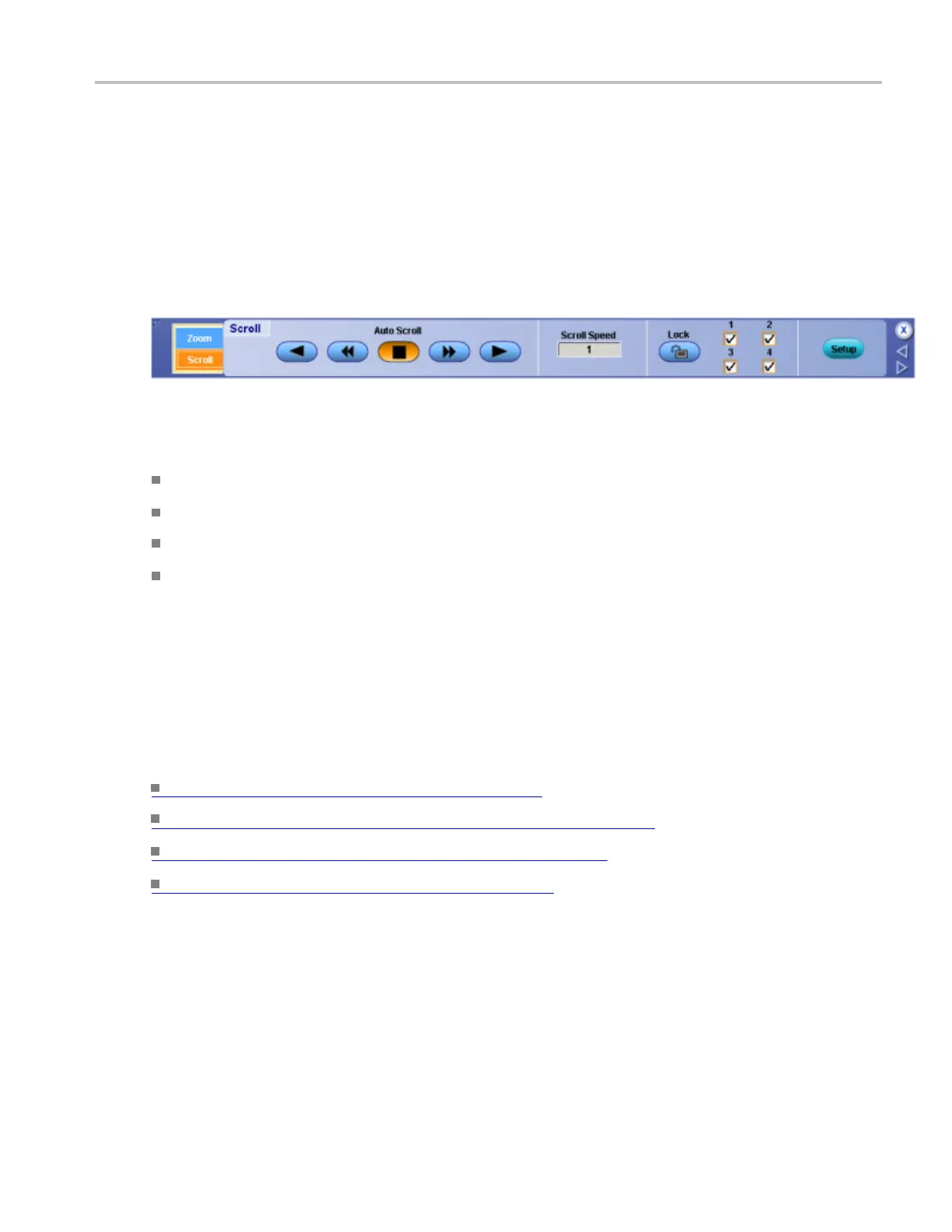

Use the AutoScroll control window to set the scroll speed and lock zoomed areas together.
To use
To scroll a single zoomed area, open the Zoom tab and s elect the zoom area (1–4).
Open the Scroll tab and click an Auto Scroll arrow button.
Click i
n the Scroll Speed entry box, and then use a m ultipurpose knob to s et the scroll speed.
To scroll multiple zoomed areas simultaneously, click Lock, and then click the zoomed areas (1–4)
you wa
nt to scroll through. This locks the zoomed areas in their relative horizontal positions.
Behavior
If the zoom areas are unlocked, the Horizontal Position and Factor controls affect only the selected zoom
area. The Horizontal Position and Factor will affect all zoom areas that are locked together, such tha t a
change to one zoom area will change the horizontal position and factor of all the locked zoom areas.
What do you want to do next?
Learn a bout the Zoom Setup controls. (see page 197)
Re
turn to the Vertical Setup control window overview.
(see page 481)
Return to the Horizontal Setup control window. (see page 177)
Learn a bout the Zoom Control window. (see page 483)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 875
