Oscilloscope Reference Bus Pattern Editor (Logic tab on MSO Series)
Bus Pattern Editor (Logic tab on MSO Series)

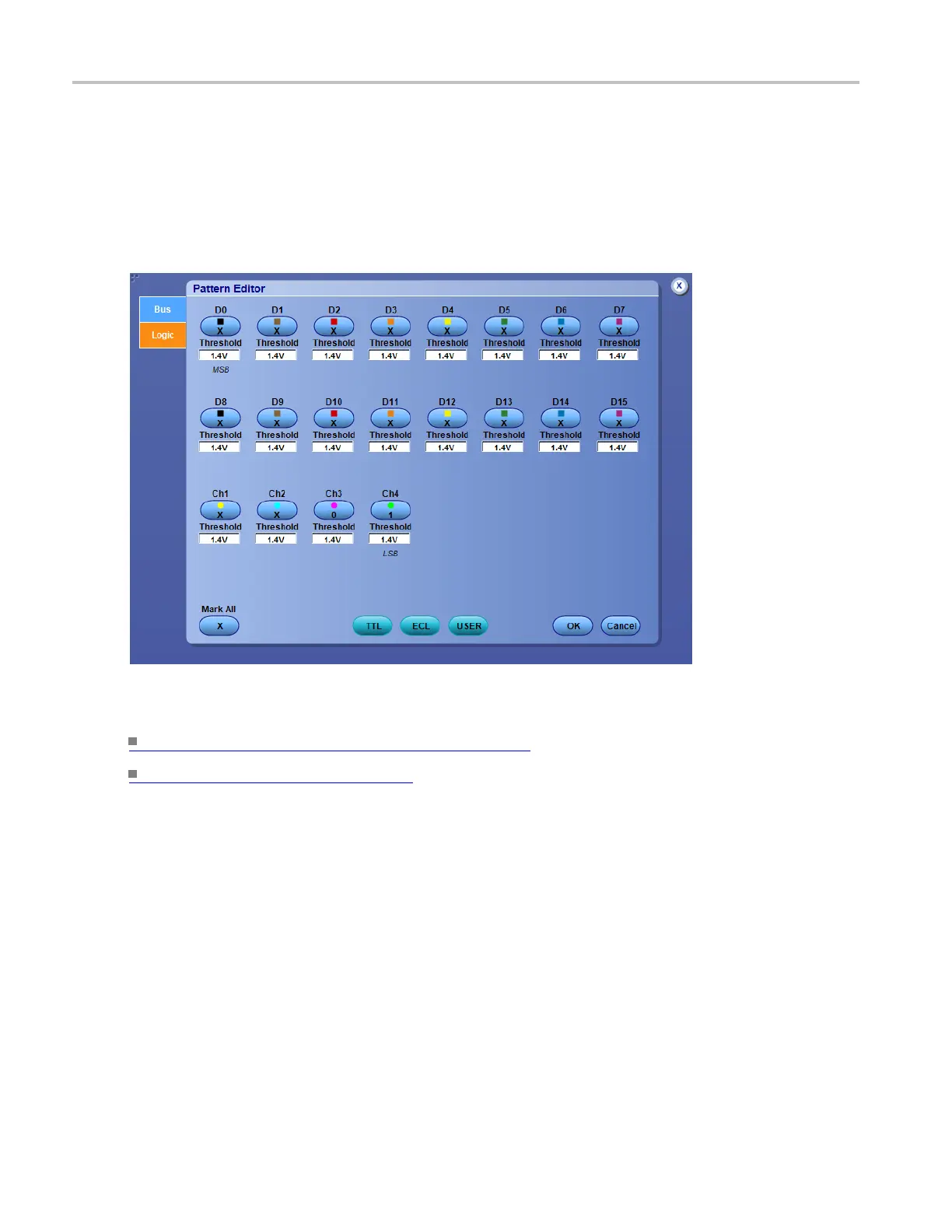

Use the controls to set the bus trigger pattern of the channels the instrument uses as logic waveforms to
detect a parallel or serial bus value. Click a channel button to se lect the value for that cha nnel: 0, 1, or X.
For convenie
nce, you can also change the voltage reference level threshold values.
What d
o you want to do next?
Learn how to define a pattern for a bus. (see page 939)
Learn about bus setups. (see page 95)
