Oscilloscope Reference Bus pattern format

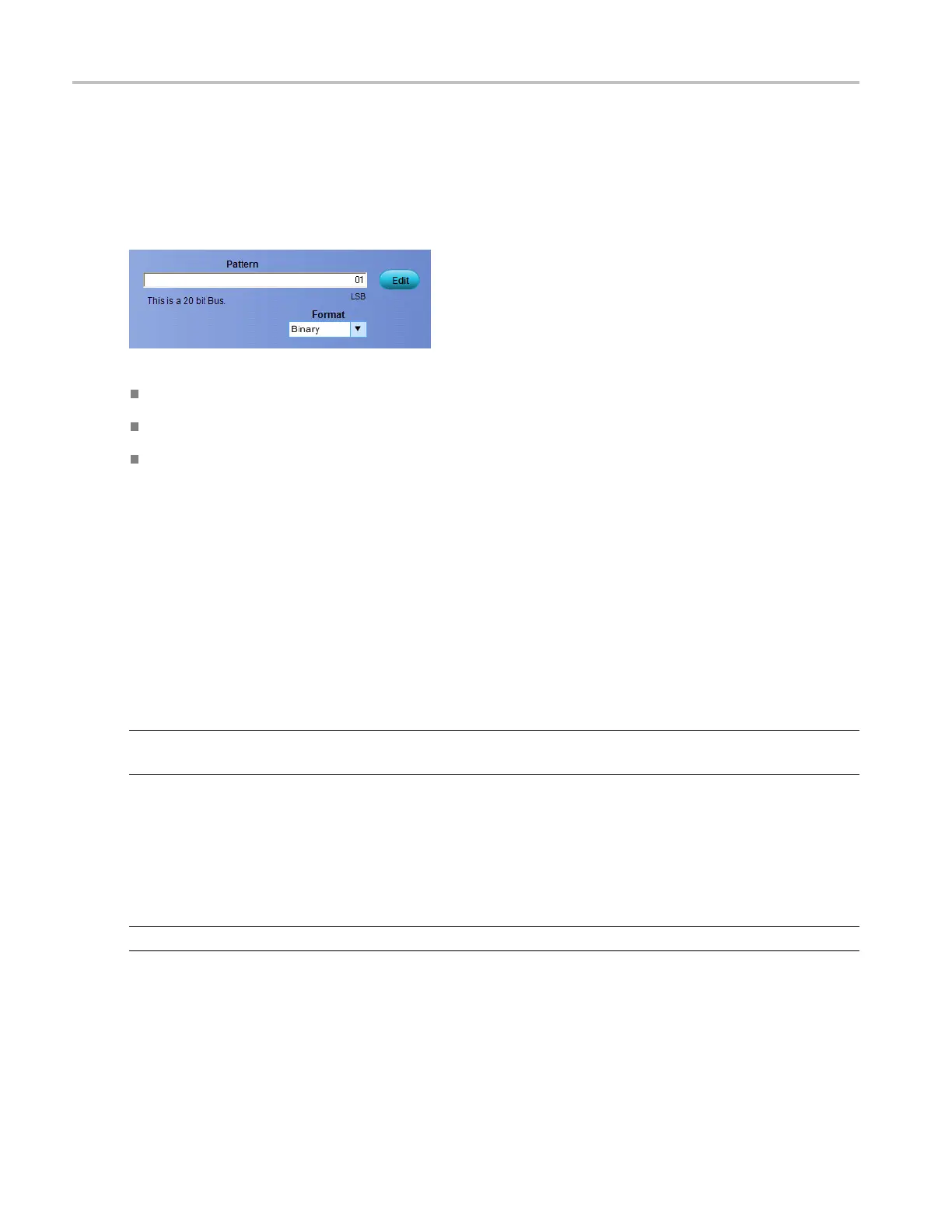

Bus pattern format
For MSO70000C Series instruments, from the Trigger menu, select the Bus trigger type. You can change
the format of the bus pattern after y ou define a pattern.
Hex causes the instrument to display the bus pattern as a hexadecimal value.
Binary causes the instrument to display the bus pattern as a binary value.
Decimal causes the instrument to display the bus pattern as a decimal value.
Bus Trig
ger On selections
For MSO
Series instruments, select the type of data to trigger on. The available selections in the Trigger
On drop-down list are different for each serial bus.
Set lo
gic thresholds
NOTE. This online help file supports many oscilloscope models from Tektronix. This feature is only
available on some models.
For the supported instruments, from the Trigger menu or from the Search and Mark menu, select the Bus,
the Logic Pattern, or the Logic State trigger. Click the Logic Thresholds button to access the Threshold
Se
tup dialog box.
Use the controls to set up the Threshold Setup parameters for a Pattern or a State trigger.
N
OTE. When you select a Pattern or a State trigger as the B Event, digital channels are not available.
946 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
