Oscilloscope Reference Set logic thresholds

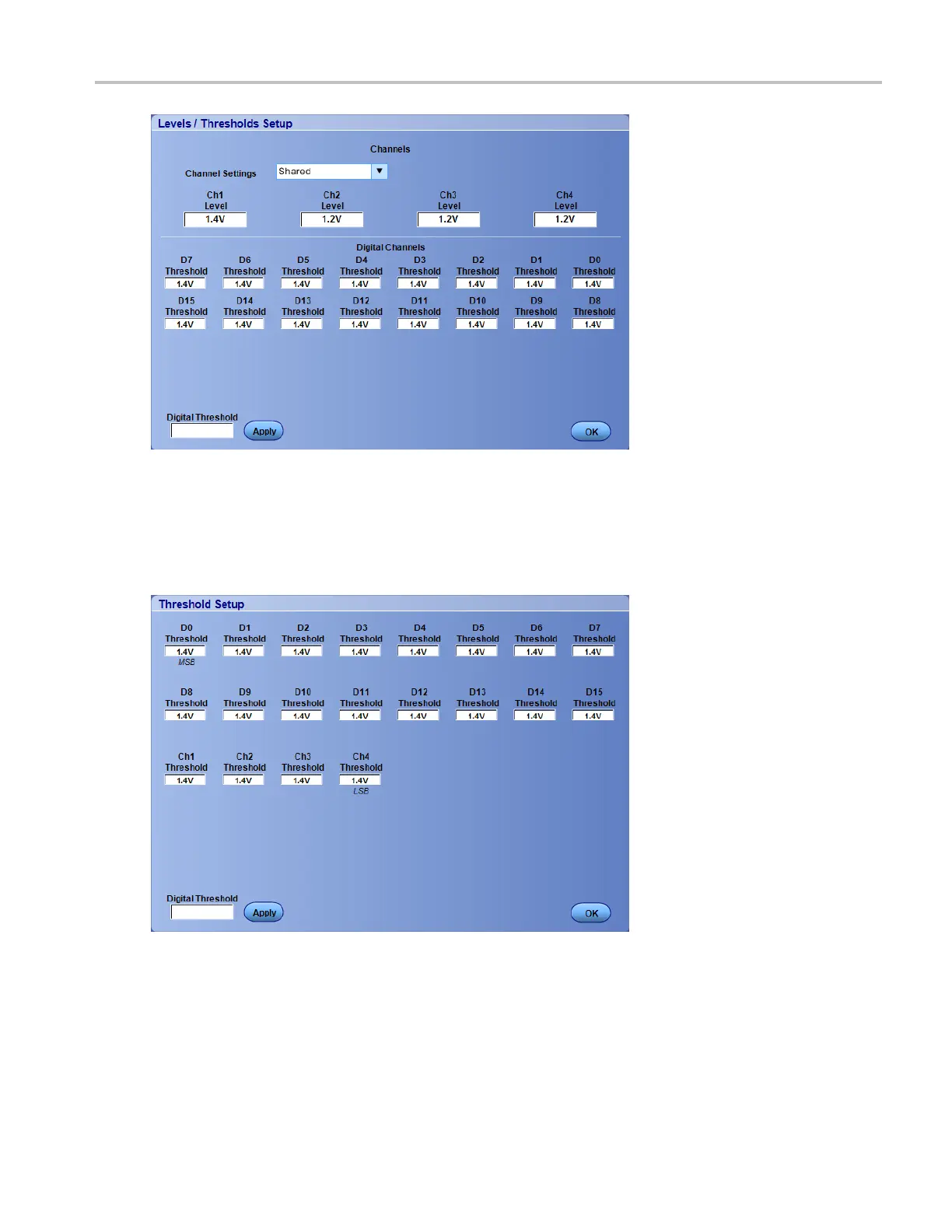

The instrument displays a different Threshold Setup dialog box for each type of bus deﬁned: parallel or

serial types.

This is a

n example of the Threshold Setup dialog box when you select a parallel bus in the Bus list of

the Trigger menu.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 947
