Oscilloscope Reference Set logic thresholds

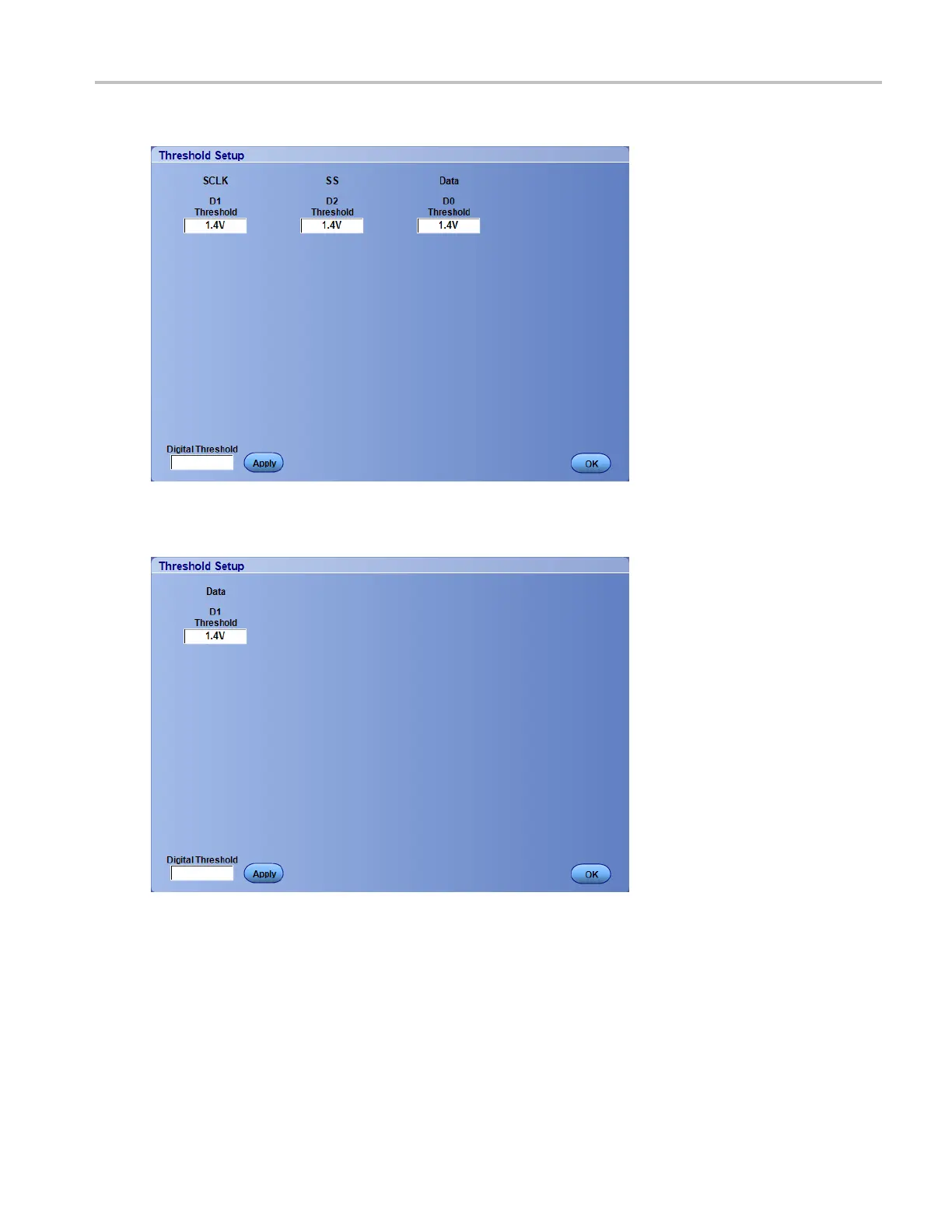

This is an example of the Threshold Setup dialog box for an SPI serial bus.

This is an example of the Threshold Setup dialog box for an RS232 serial bus.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 949
