Oscilloscope Reference Set logic thresholds

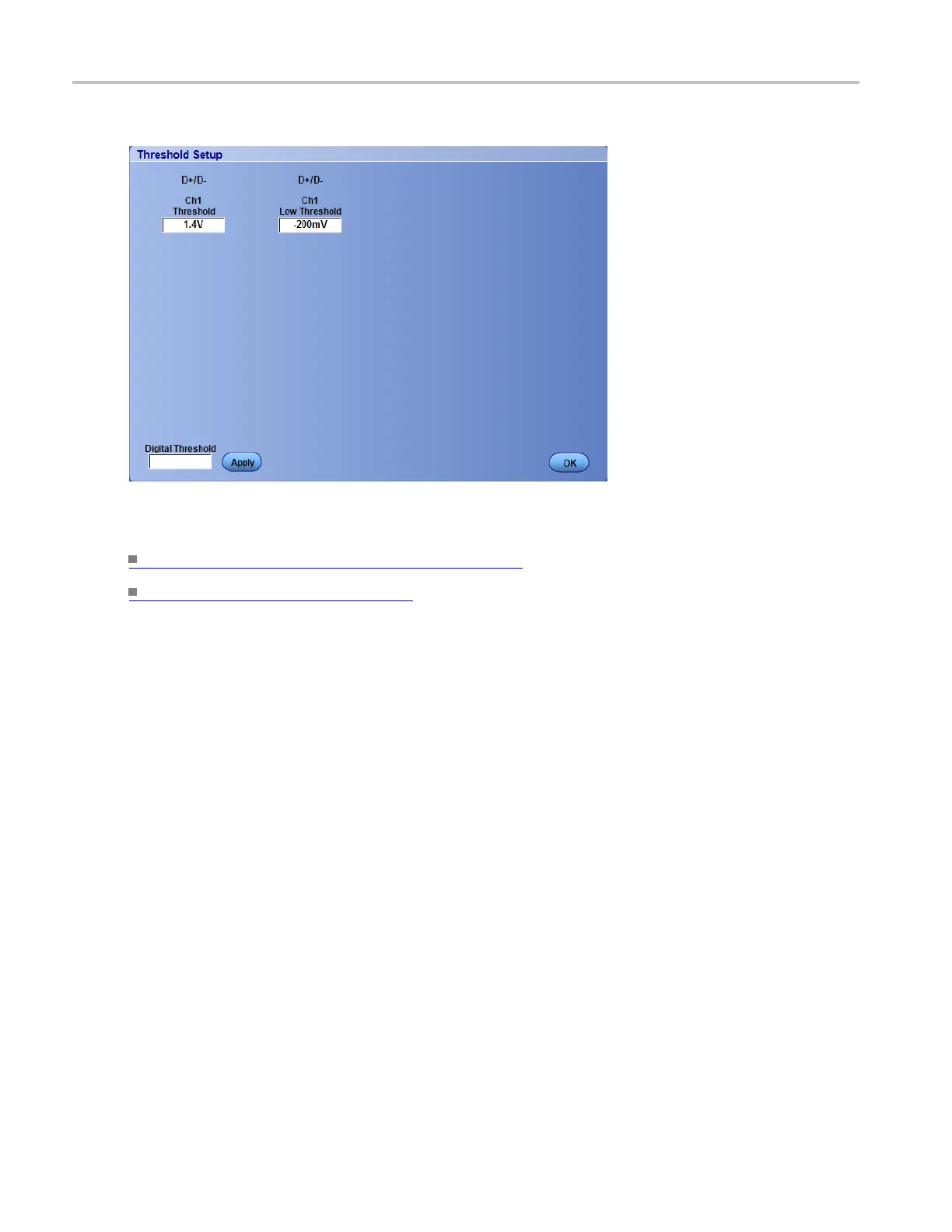

This is an example of the Threshold Setup dialog box for an USB serial bus.

What do you want to do next?

Learn about the Global Threshold ﬁeld. (see page 93)

Learn ab

out bus setups.

(see page 95)
