Yes

Write instruction to

RFST

All instructions

written?

Set up , ,

, , and

registers

CSPT CSPX

CSPY CSPZ

CSPCTRL

Start execution by

writing ISSTART to

RFST

SSTOP instruction,

end of program, or

writing ISTOP to

stops programRFST

F0037-01

Rerun last

program?

Clear program by

writing ISCLEAR

to RFST

Yes

www.ti.com

Command Strobe/CSMA-CA Processor

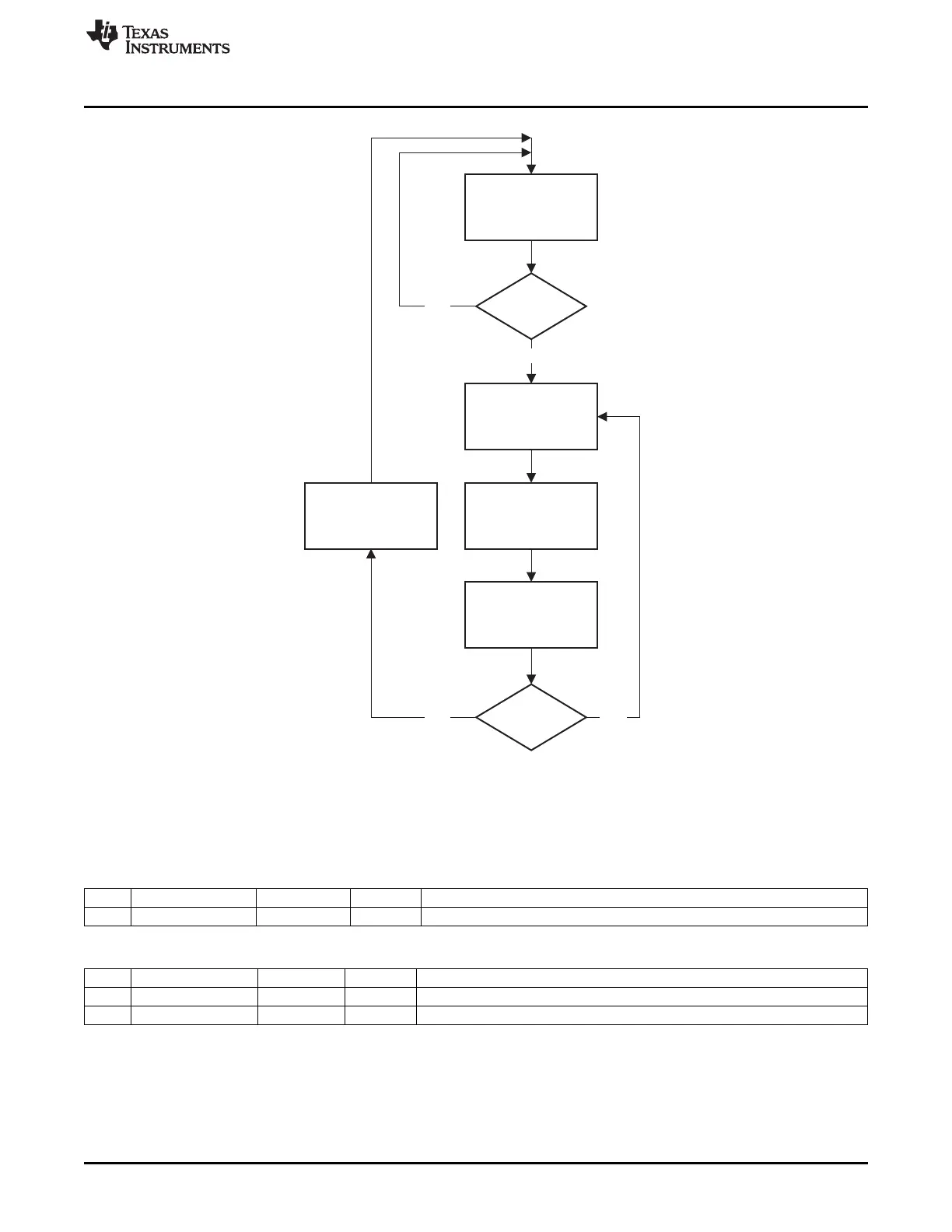

Figure 23-23. Running a CSP Program

23.14.7 Registers

CSPROG<N> (N Ranging From 0 to 23) (0x61C0 + N) – CSP Program

Bit Name Reset R/W Description

7:0

CSP_INSTR

0xD0 R Byte N of the CSP program memory

CSPCTRL (0x61E0) – CSP Control Bit

Bit Name Reset R/W Description

7:1 — 0000 000 R0 Reserved. Read as 0

MCU_CTRL

0 R/W CSP MCU control input
