17. SETTING-OUT ARC
PROCEDURE Offsetting the arcline

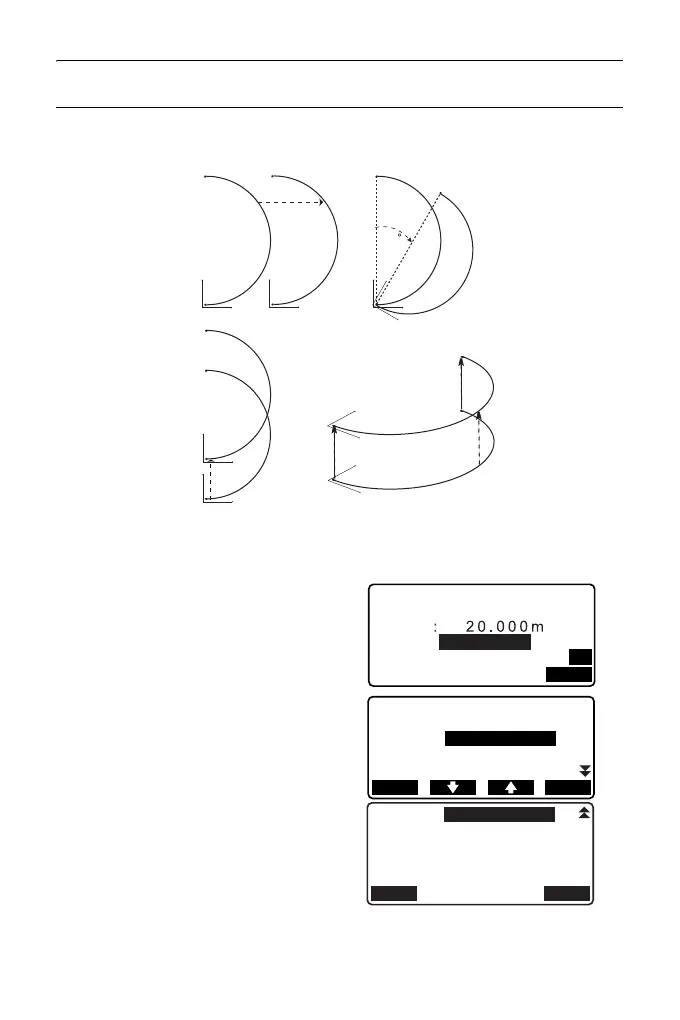

The arcline can be offset in three dimensions using four methods: lateral offset,
rotation angle offset, lengthwise offset, and height offset.
1. Select “Set-out arc” in <Set-out
arc>.
2. Press {FUNC}, and then press
[OFFSET] to display <Arcline
offset>.
3. Set the following items.
(1) Incr: Increment by which
offsets can be decreased/
increased using the arrow
softkeys.
(2) Length: Lengthwise offset
(3) Lateral: Lateral offset
(4) Height: Elevation offset
(5) Rt.ang: Rotation angle offset
• []/[]: Press to decrease/
increase the value by the
amount set in "Incr".
