35. CHECKS AND ADJUSTMENTS
286

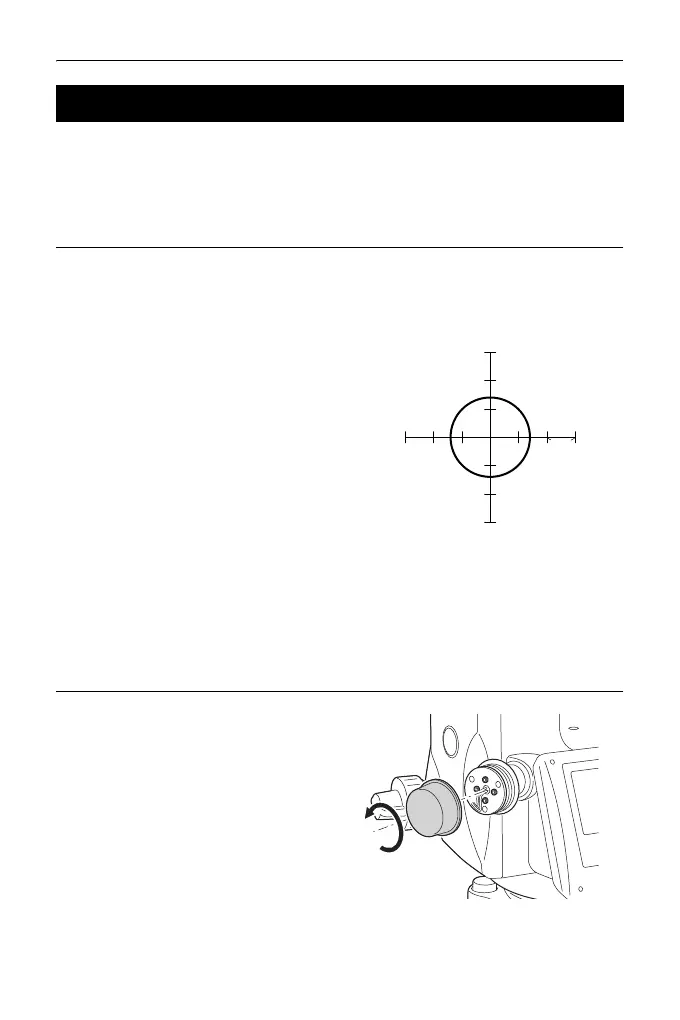

Checks and adjustments are performed using an adjustment target (cut out and
use targets printed at the back of this manual). As this target is made of paper
great care must be taken to prevent it getting wet.
PROCEDURE Check
1. Level the instrument and emit the
laser plummet beam.
"7.2 Levelling"
2. Rotate the upper part horizontally
and place a target so that it is
aligned with the center of the circle
created by the rotating laser
plummet beam.
• Laser beam remains centered
on the center of the target – No
adjustment necessary
• Laser beam strays from the
center of the target –
Adjustment necessary.
• Laser beam draws a circle
outside the target circle –
Contact your local dealer.
PROCEDURE Adjustment
1. Turn the laser plummet
adjustment cap anticlockwise and
remove.
2. Emit the laser plummet beam.
35.7 Laser Plummet
