291
36. STANDARD EQUIPMENT AND OPTIONAL ACCESSORIES
Telescope eyepiece lens (EL7)
Magnification: 40X
Field of view:
1° 20
'

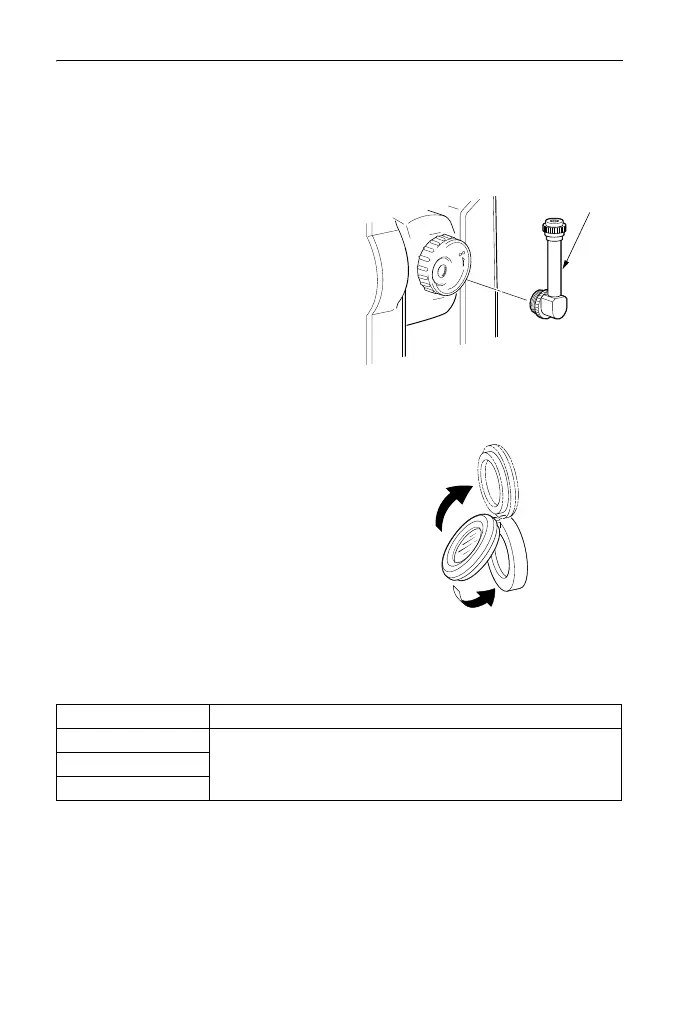

Diagonal eyepiece (DE27)
The diagonal eyepiece is convenient
for observations near the nadir and
in narrow spaces.
Magnification: 30X
After removing the handle from the
ES, loosen the attachment screw to
remove the telescope eyepiece.
Then screw the diagonal lens into
place.
Handle removal method:
"4.1 Parts of the Instrument"
Solar filter (OF3A)
When sighting targets where glare is
present, solar observations for
example, attach it to the objective
lens of the ES to protect its interior
and the eyes of the operator. The
filter part can be flipped up without
being removed.
Power cable/Interface cable
Connect between the ES and the host computer for data output.
• By using the Y cable the ES can perform RS232C communication (D-sub 9-pin)
at the same time as connecting to an external power source.
Cable Notes
DOC210 Pin Numbers and signal levels : RS-232C compatible
D-sub connector : 9pins (female)
EDC211
EDC212
