4.1.38 CXL Command
If this command is sent during measurement, the instrument stops the immediate measurement and
sends an error code.
Measurement data during measurement is not sent. If the measurement is not in progress, a
reception confirmation command is sent.

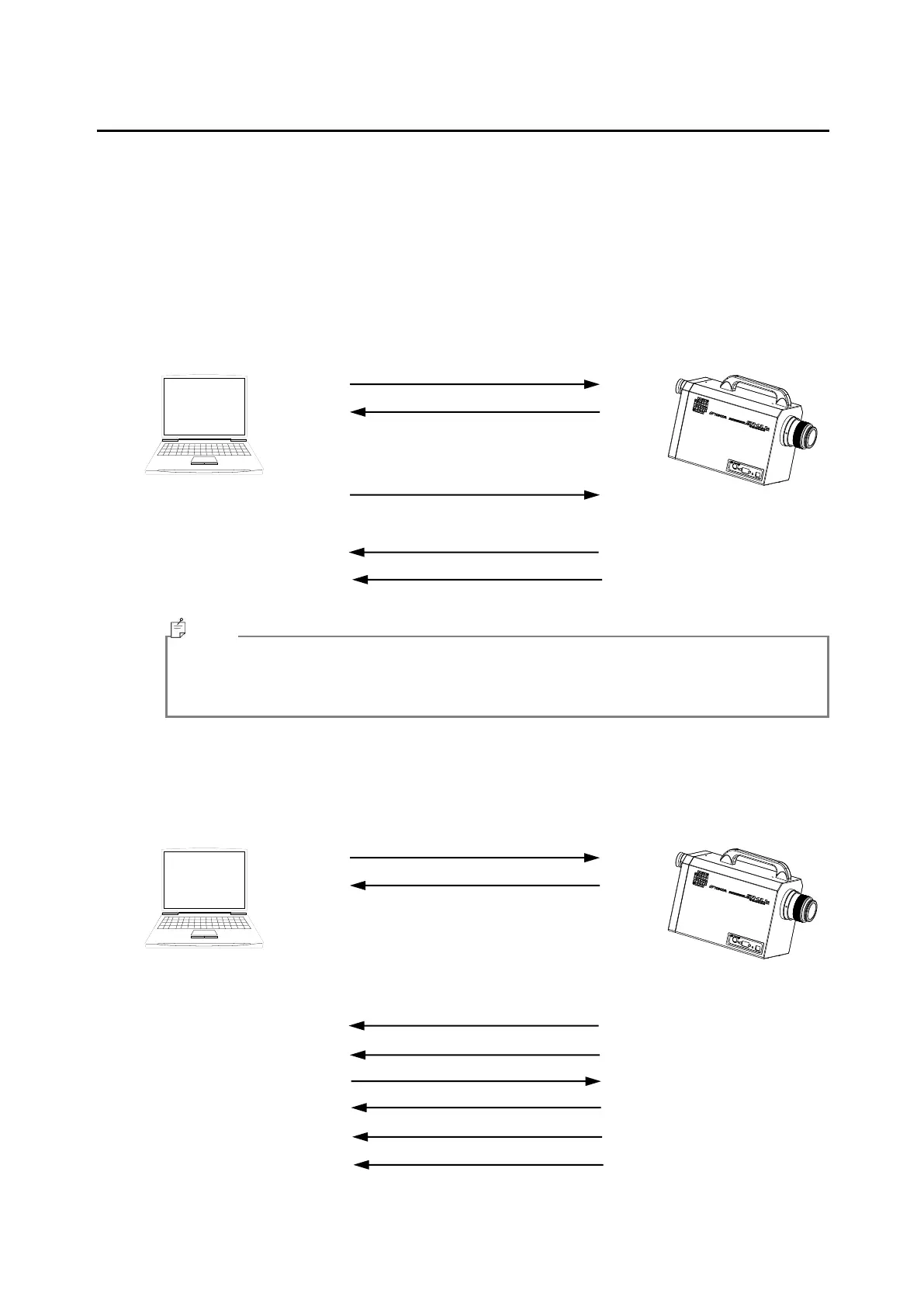

①Measuring
PC Command communication direction Measuring instrument
“ST”+(Cr•Lf)
“OK”+(Cr•Lf)
Measurement starts.
• • • • • •
“CXL”+(Cr•Lf)
Measurement stops.
“E002”+(Cr•Lf)
“END”+(Cr•Lf)
If this instrument receives this command while measuring data is being sent, it will send a
confirmation command after measurement data has been sent. Commands are not accepted
during measurement data transmission.
②Transmitting measurement data
PC Command communication direction Measuring instrument
“ST”+(Cr•Lf)
“OK”+(Cr•Lf)
Measurement starts.
• • • • • •
Measurement is ended.
Data communication
Measurement data 1+(Cr•Lf)
Measurement data 2+(Cr•Lf)
“CXL”+(Cr•Lf)
Measurement data 414+(Cr•Lf)
“END”+(Cr•Lf)
“OK”+(Cr•Lf)
Note

Topcon SR-LEDW Specifications

General

Brand	Topcon
Model	SR-LEDW
Category	Measuring Instruments
Language	English
