Topcon SR-LEDW - 2 Measurement Procedures; Single Measurement

- 14 -

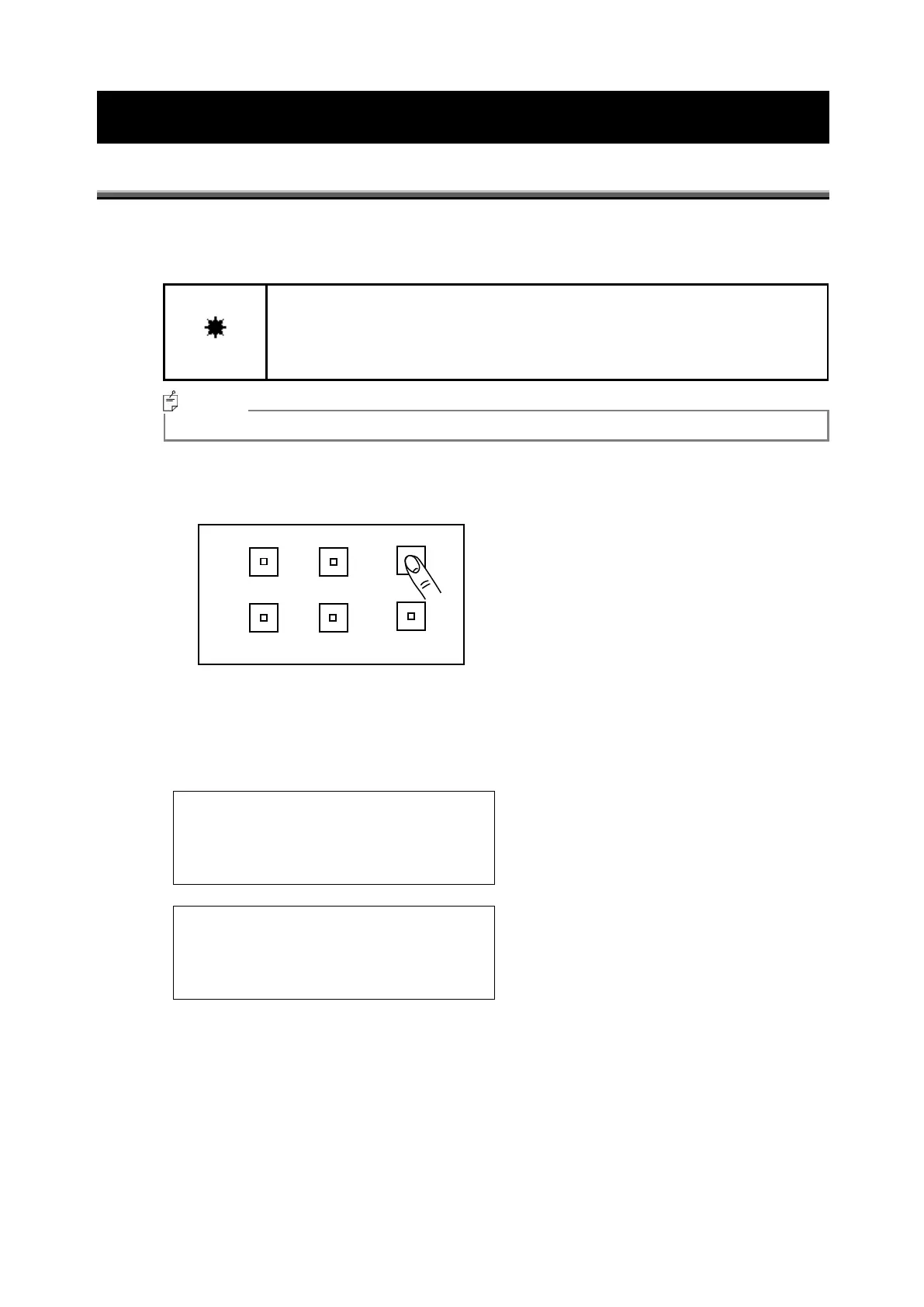

2. Measurement Procedures
2.1 Single Measurement
Use the following procedure for single measurement.
Remember!
∙ The measurement data will be stored at the number after the one currently
displayed. If the registered data already exists at the number, its contents will
be overwritten.
∙ Up to 50 measurement data can be stored.
1 Press the [MEAS./HOLD] switch to start measurement.
2 The integral time will be displayed on the LCD screen. The SR-LEDW/SR-UL2/SR-UL1R/SR-3AR
is ready for measurement.
Integral time
☞
‘3.3 Measurement Mode’
＊ Ｍｅａｓｕｒｉｎｇ ＊
ＩｎｔｅｇＴｉｍｅ＝ １００
＊ Ｍｅａｓｕｒｉｎｇ ＊
ＩｎｔｅｇＴｉｍｅ＝ １００
１ｃｙｃｌｅ［ｍｓ］ ＝ ２０
Note
When "SYNC" is selected, one cycle time
of the vertical synchronous signal is also
indicated.
DIF.
ABS.
UP
LAMP
DOWN
MEAS.
HOLD
FIELD
FUNCTION
ENTER
CHANGE
ROTATION
SHIFT
