126
-

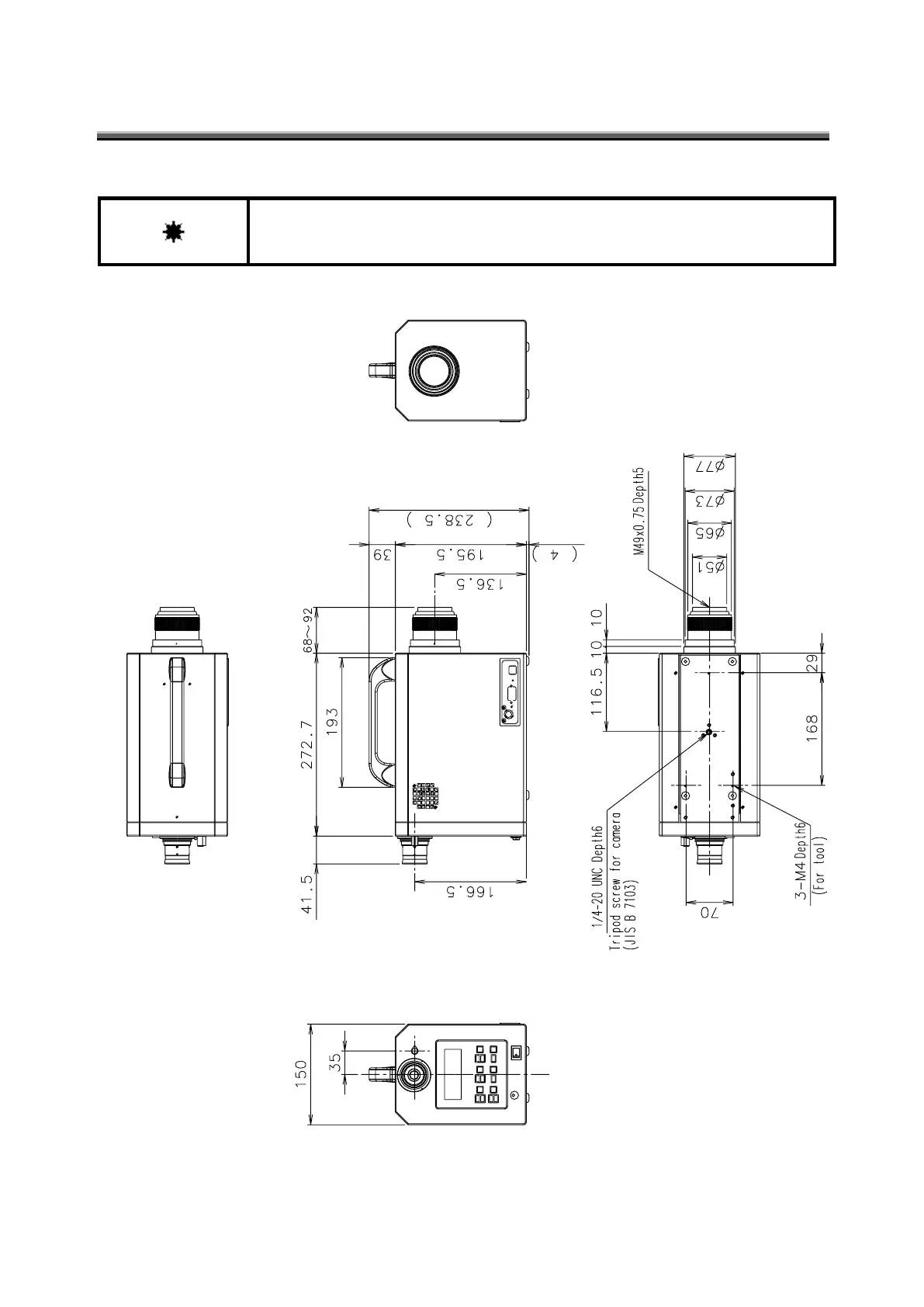

External Dime
nsion Diagram
·
SR-LEDW/SR-UL2/SR-UL1R
Request
Use
onl
y
specified
scre
ws
when
using
the
tripod
sc
rew
an
d
scr
ew
holes
for
jig
attachment.
Do
n
ot
tig
hten
the
screws
any
m
ore
than
neces
sary
.
Doing
so
might
cause internal break
age.
136
138
Table of Contents
Default Chapter
4
Display for Safe Use
4
Table of Contents
8
Conventions in this Manual
11
1 Before Use
12
Confirmation of Contents
12
Parts and Functions
13
Preparations
19
Connecting the AC Adapter
19
Connecting the Personal Computer
20
Object Collimation
21
Turning ON/OFF the Power
22
Open and Shut a Finder Shutter
23
Maintenance Recommended Display
24
2 Measurement Procedures
25
Single Measurement
25
Auto Run
27
Difference Measurement
28
Displaying Measurement Data
30
Measuring
31
Measuring Directional Light Sources
31
Measuring very Small Surfaces
31
System Integration
32
Measuring a Frequency Light Source
32
Reducing Instrument Error between a Plurality of Instruments
33
3 Settings
38
Function Mode
38
Entering/Returning from the Function Mode
39
Setting Values
43
Measurement Mode
46
FREQ Mode
48
MANU Mode
49
FIX INTEG Mode
50
FIX FREQ Mode
52
Integral Time Delay Function
53
Delay Time Setting
54
Single or Auto Run
55
Measuring Speed
56
High Speed Calibration
57
PC Connection Method
58
RS-232C Parameters
59
Data Communication Methods
61
Remote Command Terminal Codes
62
Using a Correction Factor
63
Displaying and Editing the Correction Factor
64
CIE Color Matching Function (Visual Field)
67
CIE Color Matching Function (Type)
68
Measurement Averaging
69
Averaging Count
70
Selection of "Over Range" Detection in MANU
71
Buzzer
72
Luminance Display Format
73
Maintenance Reminder Screen
74
Panel Light Control
75
Batch Deletion of Measurement and DIF Standard Data
76
4 Communication with Personal Computer
77
Communication Commands
77
RM and LM Command
80
ST Command
81
SF Command
83
STB Command
86
D0 and D1 Command
86
A0, A1, A2 and A3 Command
87
Kw[N] Command
88
Kr[N] Command
89
KX, KY and KZ Command
89
KXR, KYR and KZR Command
90
Dr[N] Command
91
KO1/KO2/KN1/KN2 Command
91
KOR Command
92
CIE Command
92
CIER Command
93
LDF Command
93
LDFR Command
93
LDD Command
94
LDDR Command
94
FLD1, FLD2, FLD3 and FLD4 Command
95
FLDR Command
95
Command
95
ND and NF Command
96
HS/HS2/HS3/NS Command
96
HCL Command
96
HSR Command
97
WHO, SRL and VER Command
97
FX Command
98
FO Command
98
FG Command
99
FS Command
99
FXQ Command
100
IMD Command
100
IMDR Command
100
STCT Command
101
CMF Command
102
CMFR Command
102
CXL Command
103
Output Formats
105
Remote Measurement Output Format
105
Output Format for Reading out the Internal Stored Data
109
USB Driver Installation
110
5 Error Display
112
Error Display on the Instrument
112
Error Code in Communication
113
6 Appendix
114
Specifications and Performance
114
Block Diagram
134
SR-LEDW/SR-UL2/SR-UL1R/SR-3AR Mathematical Formulas
135
External Dimension Diagram
137
