Do not look directly at bright objects such as the sun or bulb filaments.
Doing so may result in optical damage.
Use only specified screws when using the tripod screw and screw holes for jig
attachment. Do not tighten the screws any more than necessary. Doing so might
cause internal breakage.

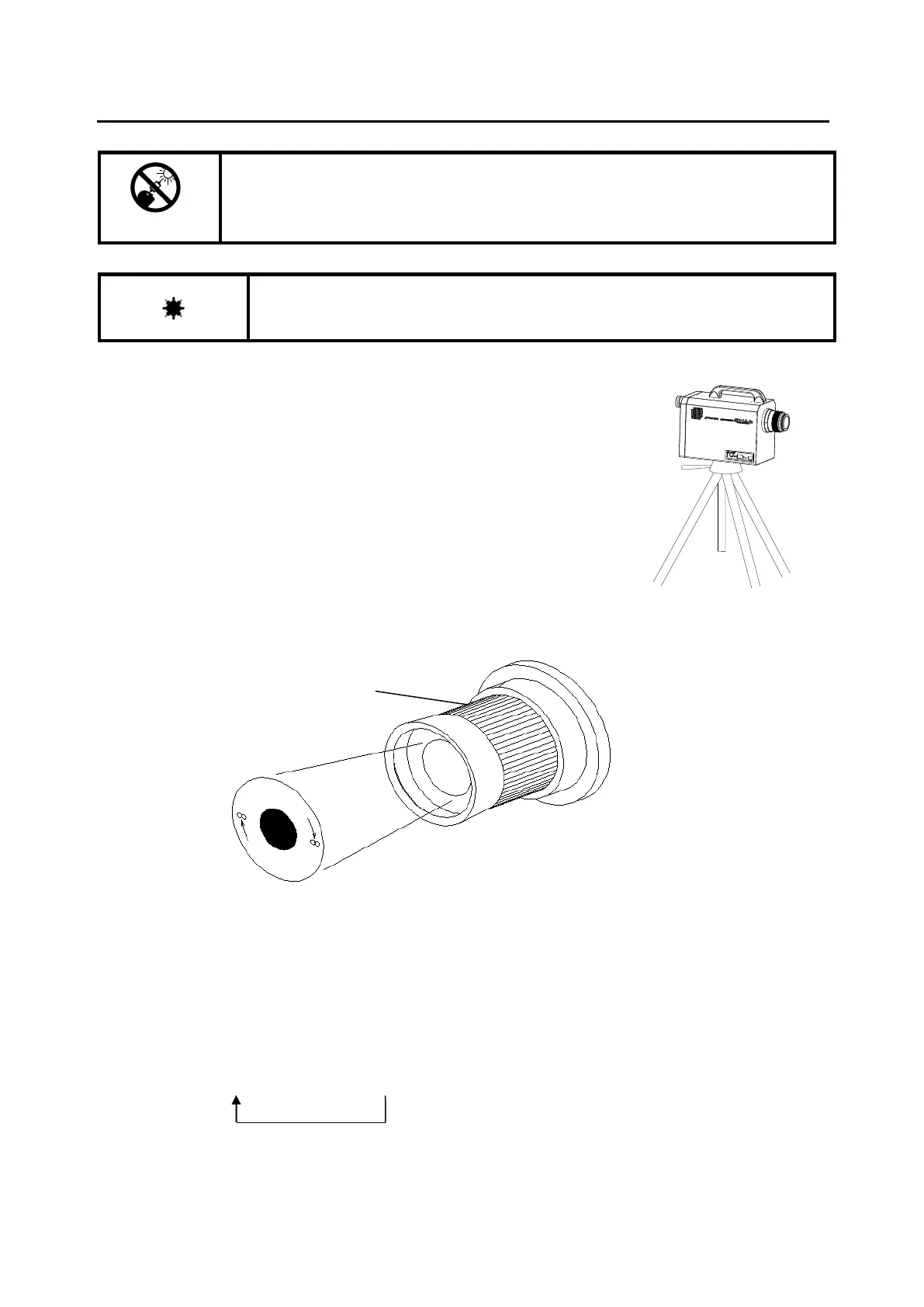

1 Fix the instrument, using the tripod screw or the tool attachment screws.
2 Remove the cap from the objective lens and set
the finder shutter selection knob to "OPEN".
3 Look into the eyepiece, and turn the diopter adjustment ring of the eyepiece so that the reticle
marks are clearly seen in the view finder.
4 Collimate with the measured object, and turn the focus ring of the objective lens and adjust the
focus on the measured object.
5 Change the measuring field according to the size and brightness of the measured object.
Use the [FILED] switch to change the measuring field.
Each time the switch is pressed, the measuring field changes as follows:
2゜→ 1゜→ 0.2゜→ 0.1゜
The current measuring field is displayed on the LCD screen.
LCD screen display ☞ ‘1.2 Parts and Functions’
