Topcon SR-LEDW User Manual

- 39 -

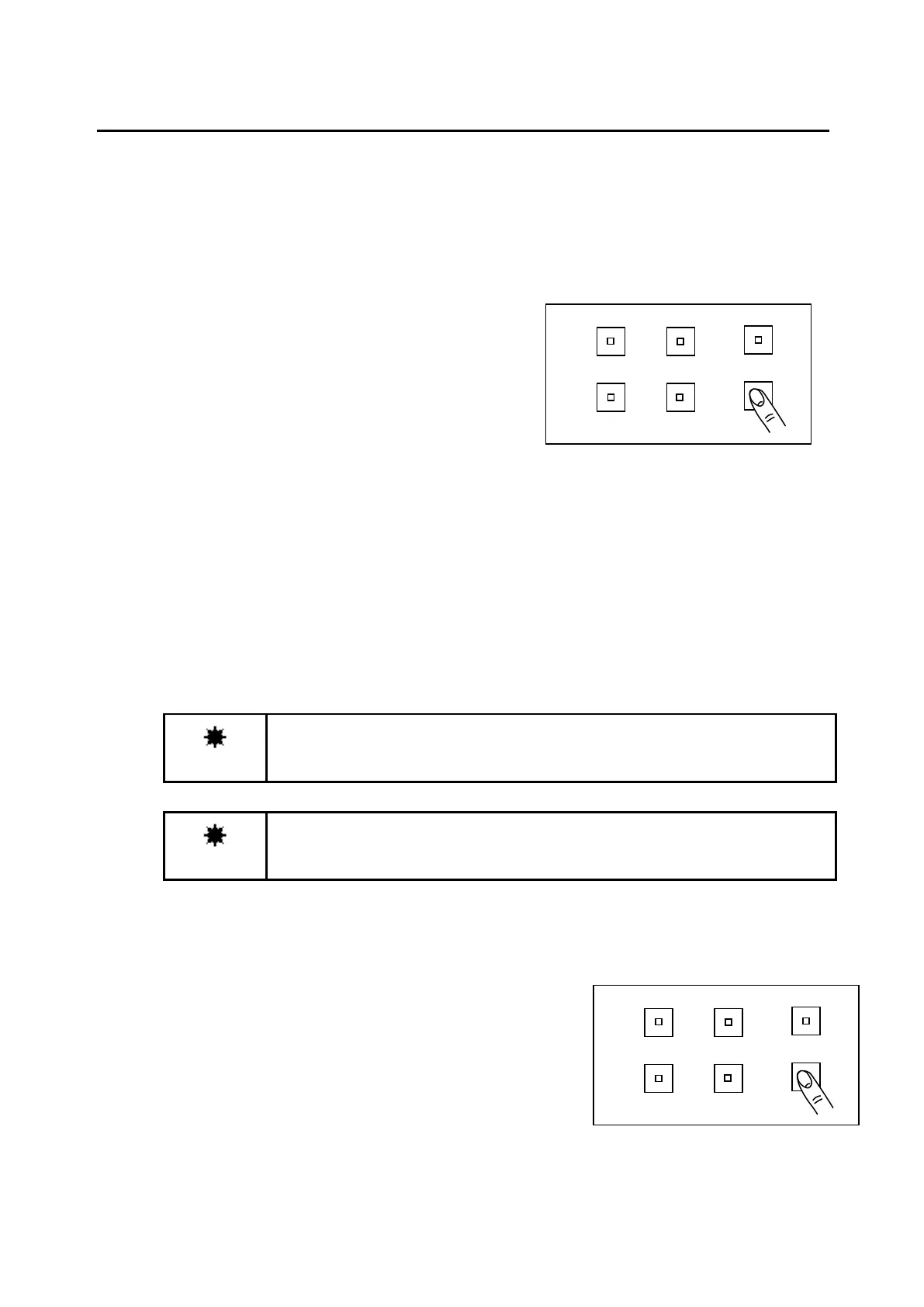

3.3.3 FIX INTEG Mode
Uses this mode to reduce measurement time.Inner-filer and integral time is fixed in measuring. This mode
is suited for the continuous measurement of the light source without fluctuation under stable condition.
Optimum inner-filter and integral time is automatically set according to initial measurement in Fix integ
mode after turn on power. (SR-LEDW only)
1 Switch to the FUNCTION mode to display
[MEASURE]-[Integ Time Input]
☞
’3.1.2 Entering/Returning from the Function mode」
2 Press the [CHANGE] switch. Press [ROTATION] switch to find [FIX INTEG], and then the [ENTER]
switch to accept your selection.
3 Press the [FUNCTION] switch twice to escape from FUNCTION mode.
4 Collimate the object and press the [MEAS.] switch. Optimum inner-filter and integral time is set
automatically in initial measurement after setting FIX INTEG mode.
☞
’Object Collimation’
Remember!
Measurement should be conducted at the same condition as the initial
measurement in measurement angle, Object and measurement distance.
Remember!
Integral time and Inner-filter setting for FIX INTEG mode are erased when
the power off.
Setting value in FIX INTEG mode
Inner-filter type and integral time can be set.
Use the following procedure
1 Switch to the function mode to display [MEASURE]-
[Integ Time Input]
☞’
3.1.2 Entering/Returning from the Function mode’
DIF.
ABS.
UP
LAMP
DOWN
MEAS.
HOLD
FIELD
FUNCTION
ENTER
CHANGE
LAMP
UP
ABS.
DIF.
SHIFT
ROTATION
CHANGE
ENTER
FUNCTION
FIELD
HOLD
DOWN
