4.1.4 STB Command
"STB" command
The measurement starts when this command is transmitted to the instrument.
When measurement is ended, the measured data is returned with binary data (big endia) from the
instrument. The difference from ST commend is as follows;
Measurement Output Format
☞
‘4.2.1 Remote Measurement Output Format’
1.Communication speed is faster than ST command
2. STB command does not have resent function.
· Measured data of spectral radiance is returned at all time for STB command even if “D1”
command is transmitted.

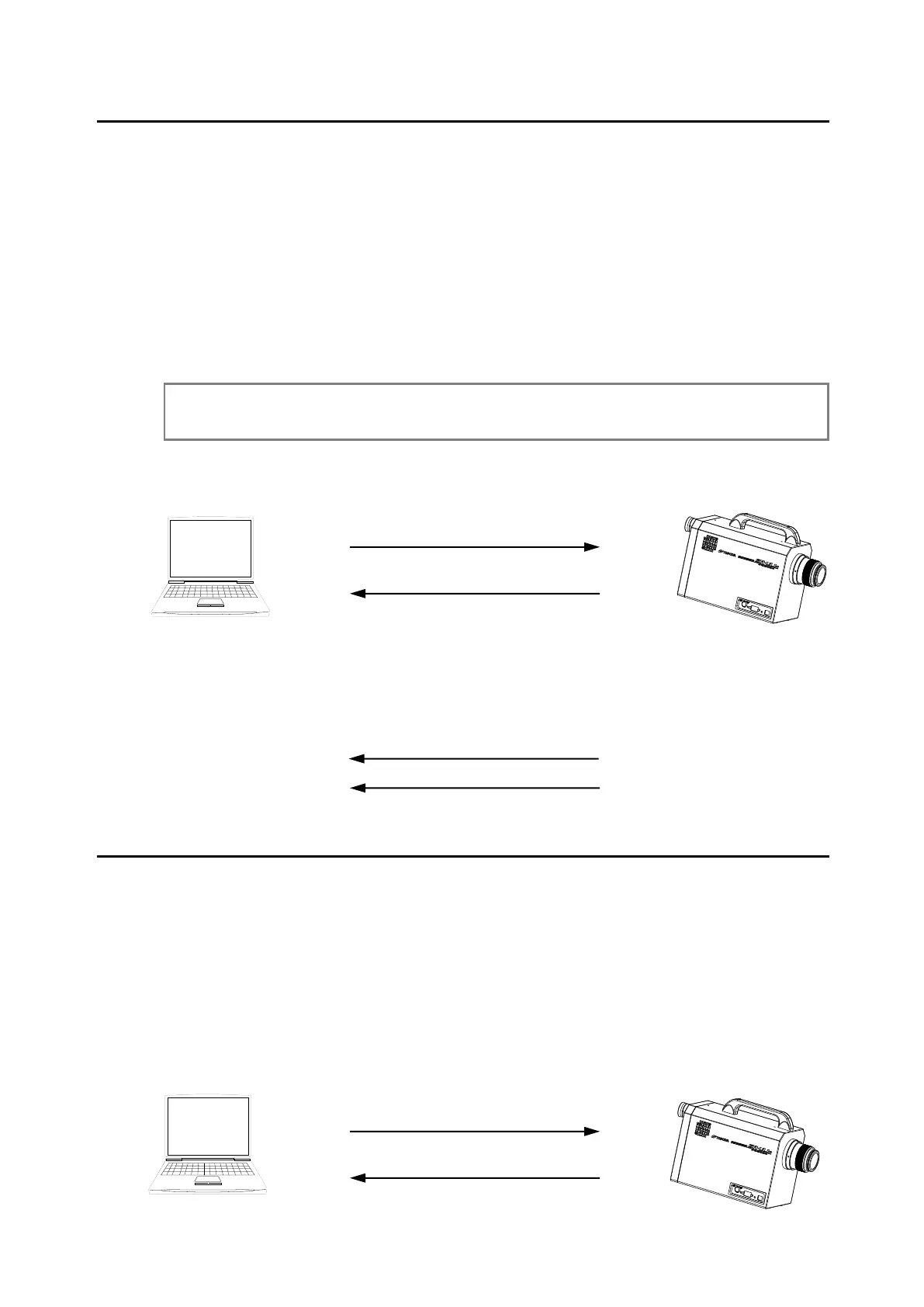

PC Command communication direction Measuring instrument
“STB” (Text) +(Cr•Lf)
“OK” (Text) +(Cr•Lf)
Measurement starts.
• • • • • •
Measurement is ended.
Data communication
Header (binary)
Data (binary)
4.1.5 D0 and D1 Command
With these commands, the format of the output data is set.
D0 : All the data with the spectral radiance data.
D1 : All the data without the spectral radiance data
Refer to "4.2 Output formats" for the details.
When the power is turned on, "D0" is set.
PC Command communication direction Measuring instrument
"D0" or "D1" + (Cr•Lf)
“OK”+(Cr•Lf)
To Next Page
