Topcon SR-LEDW User Manual

- 88 -

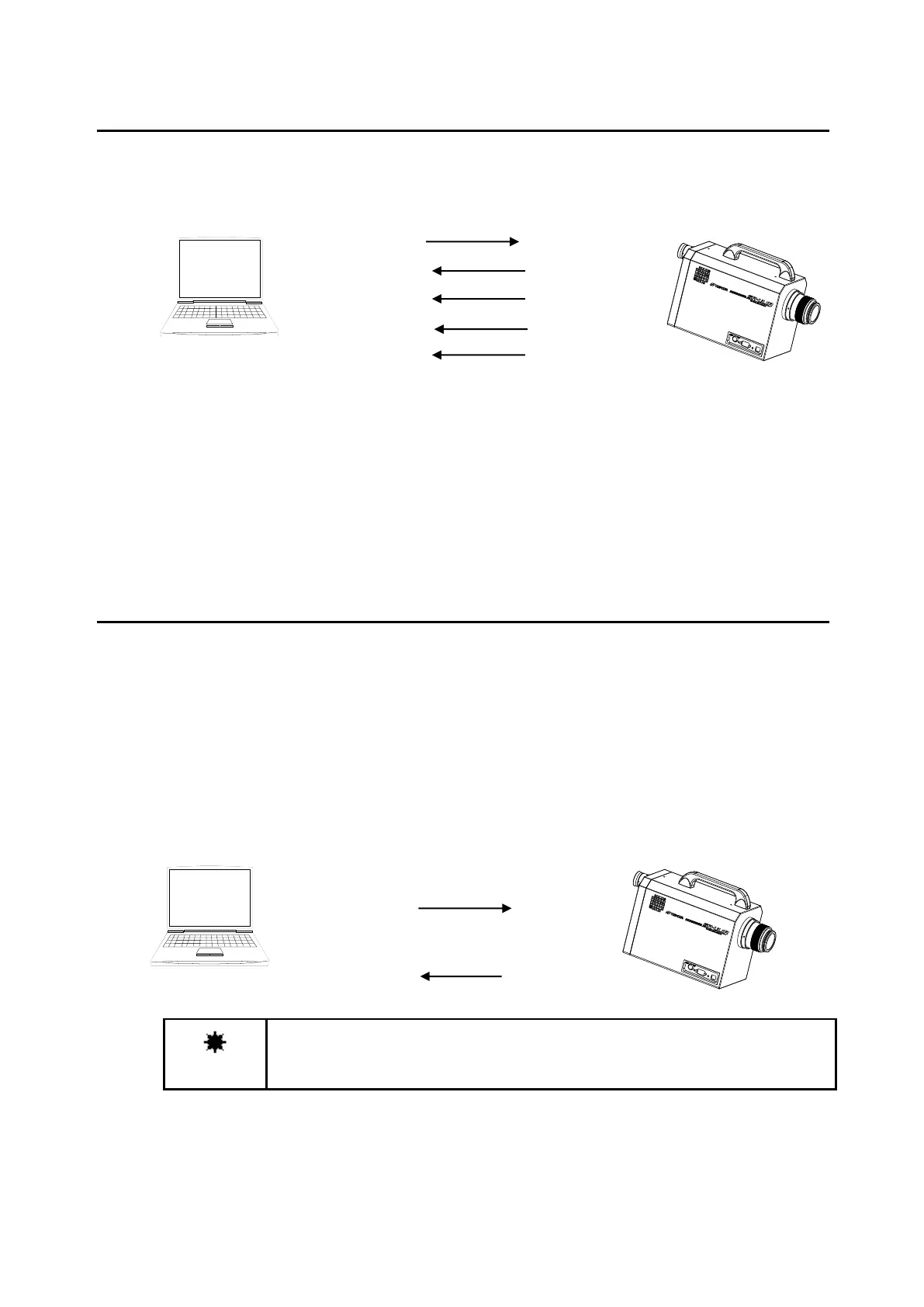

4.1.30 FG Command
Reads current setting in FIX INTEG mode.（SR-LEDW only）
PC Command communication direction Measuring instrument
”FG” + (Cr・Lf)
“OK” + (Cr・Lf)
Integral time+ (Cr・Lf)
Inner-filter+ (Cr・Lf)
“END” + (Cr・Lf)
・Integral time ： [ms]unit
・Inner-filter type ： 1 → FILTER１
２ → FILTER２
３ → FILTER３
４ → FILTER４
５ → FILTER５
4.1.31 FS Command
Sets inner-filter type and integral time in FIX INTEG mode. (SR-LEDW only）
The left side of # means integral time [ms](50 -120,000),
right side means inner-filter (1 - 5)
FS_###_# ： The left side of # means integral time[ms](50 -120,000).
The right side means inner-filter (1-5)
PC Command communication direction Measuring instrument
”FS_Integral time_Filter type” + (Cr・Lf)
OK+(Cr･Lf)
Remember!
The integral time and inner-filter setting in FIX INTEG mode are erased
when the power off.
