120
BASIC OPERATIONS

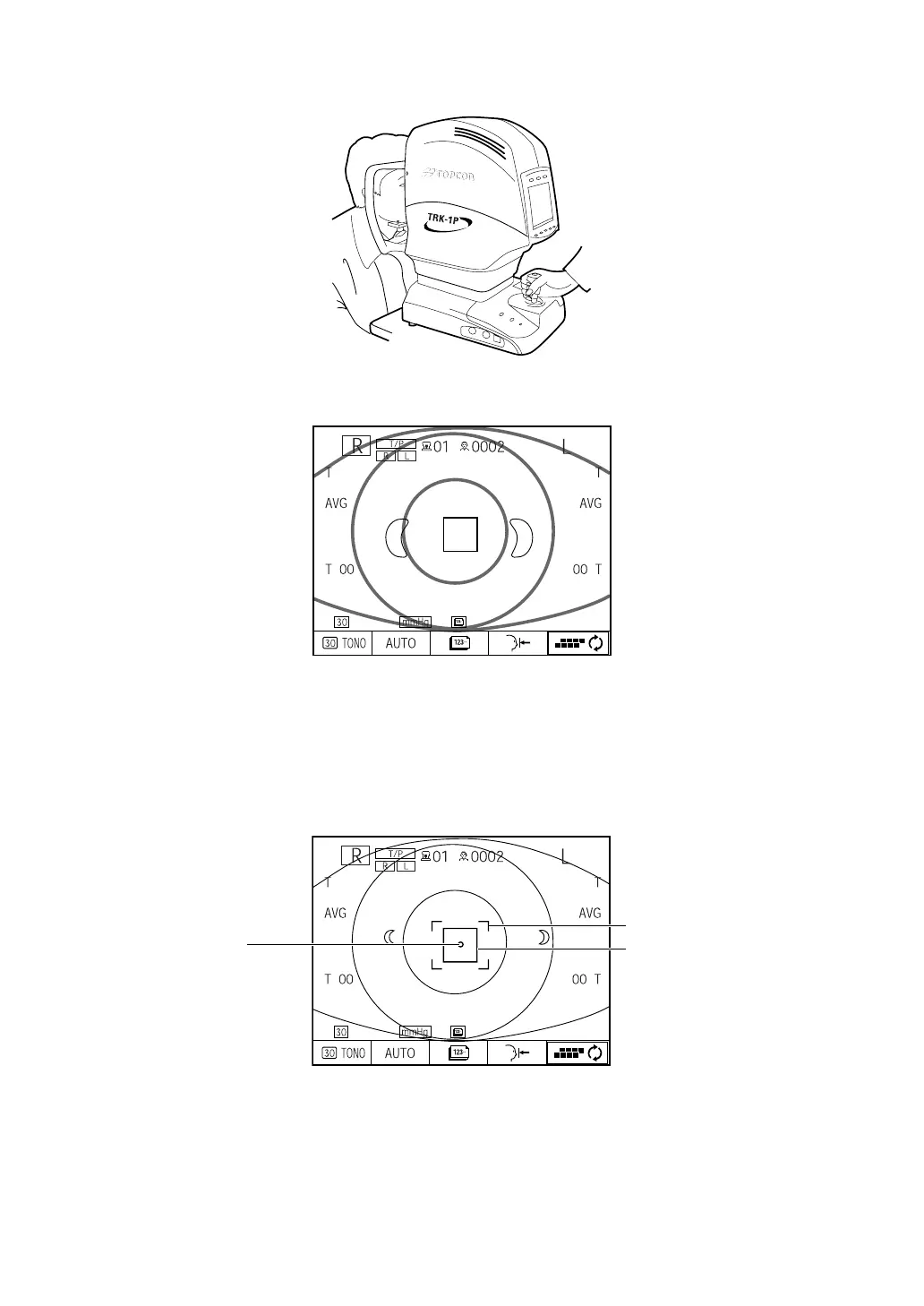

1 Hold the control lever and move the main body to the operator side.
2 Operate the main body laterally and vertically the control lever and get the patient's eye in
the center of the color LCD monitor screen.
3 Tell the patient to gaze at the yellow-green light.
4 Move the main body to the patient side slightly.
As the instrument comes in the range where ocular pressure measurement is possible,
the focus is switched and the outer alignment mark displays.
5 While moving the main body further toward the patient, focus on the patient's eye.
A vague reference dot for alignment appears reflected on the cornea.
Auto area mark
Outer alignment mark
Reference dot
