COMPONENTS

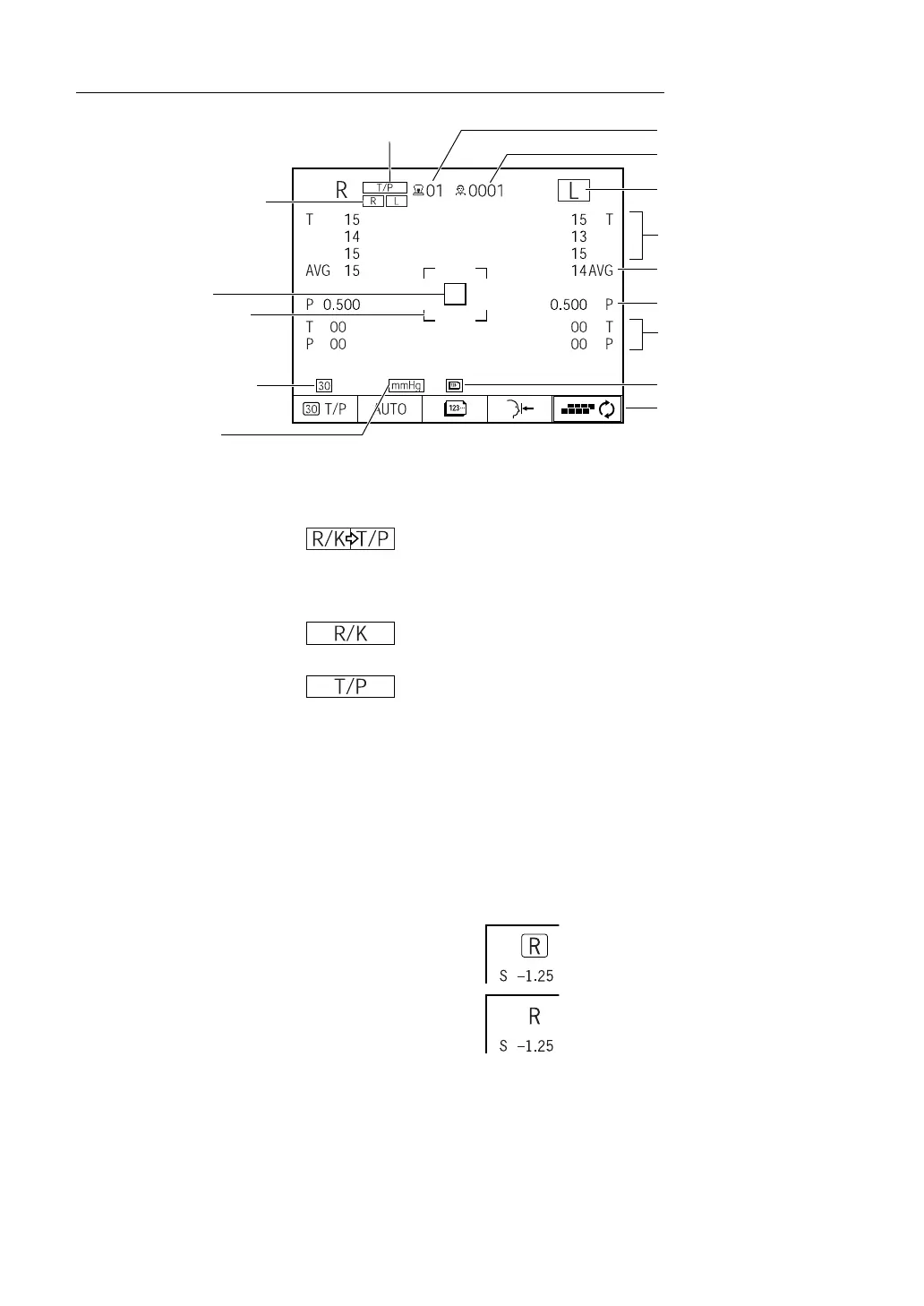

MONITOR SCREEN COMPONENTS (TONO/PACHO MODE)
(1) Mode display: Displays measurement mode of REF/KRT and TONO/PACHO.
: Fully automatic measurement mode.
Measurements in REF/KRT and TONO/PACHO are
continuously carried out.
Measuring begins in REF/KRT mode.
: REF/KRT mode. REF and KRT measurements are
available.
: TONO/PACHO mode. Ocular pressure and cornea
thickness measurements are available.
(2) Instrument No.: Displays the instrument No.
In the INITIAL MENU screen, setting and display/nondisplay can be
switched. (See page 43)
(3) Patient No.: Displays the patient No.
In the INITIAL MENU screen, setting and display/nondisplay can be
switched. Also, the patient No. received from an external device (bar-
code reader and the like) is displayed. (See page 42)
(4) Right/left eye: Displays the right/left eye of the patient.
The display in measurement is framed.
Measured :
The other measured :
(3) Patient No.
(4) Right/left eye
(5) TONO measurement value
(8) Number of TONO/PACHO
measurements
(9) Function menu
(2) Instrument No.(1) Mode display
(11) Alignment mark
(12) Outer alignment mark
(6) TONO average value
(7)
PACHO measurement value
(10) Number of
measurements mark
(13) Measuring range mark
(14) Ocular Pressure
(Value unit) mark
(15) Selected measuring eye
mark
